Stinson L-5 Sentinel 42-98774
'June'
Restoration Page 2
1942 Stinson L-5 VW Sentinel 42-98774 as purchased in North Carolina in August 2018
DATE: 19 MAY – 30 AUG 2021
- (A) Cowling – Re-skinned boot cowling and constructed new firewall IAW Stinson Factory Drawings 76- Series
- (A) Cowling - Cleaned, inspected and performed minor repairs to bowl, upper, lower and side panels IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
- (A) Cowling – Sanded, cleaned, prepped and primed with Air Tech Coatings Epoxy Metal Primer IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
- (A) Instrument Panel – Cut, fitted, prepped, primed and painted new phenolic panel IAW Stinson Factory Drawings 76- Series and T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
- (A) Controls, Pilot/Copilot – Cleaned, inspected, prepped, primed with Air Tech Coatings Epoxy Metal Primer and assembled IAW Stinson Factory Drawings 76- Series and T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
- (A) Metal Parts – Cleaned, inspected, prepped and primed with Air Tech Coatings Epoxy Metal Primer IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956

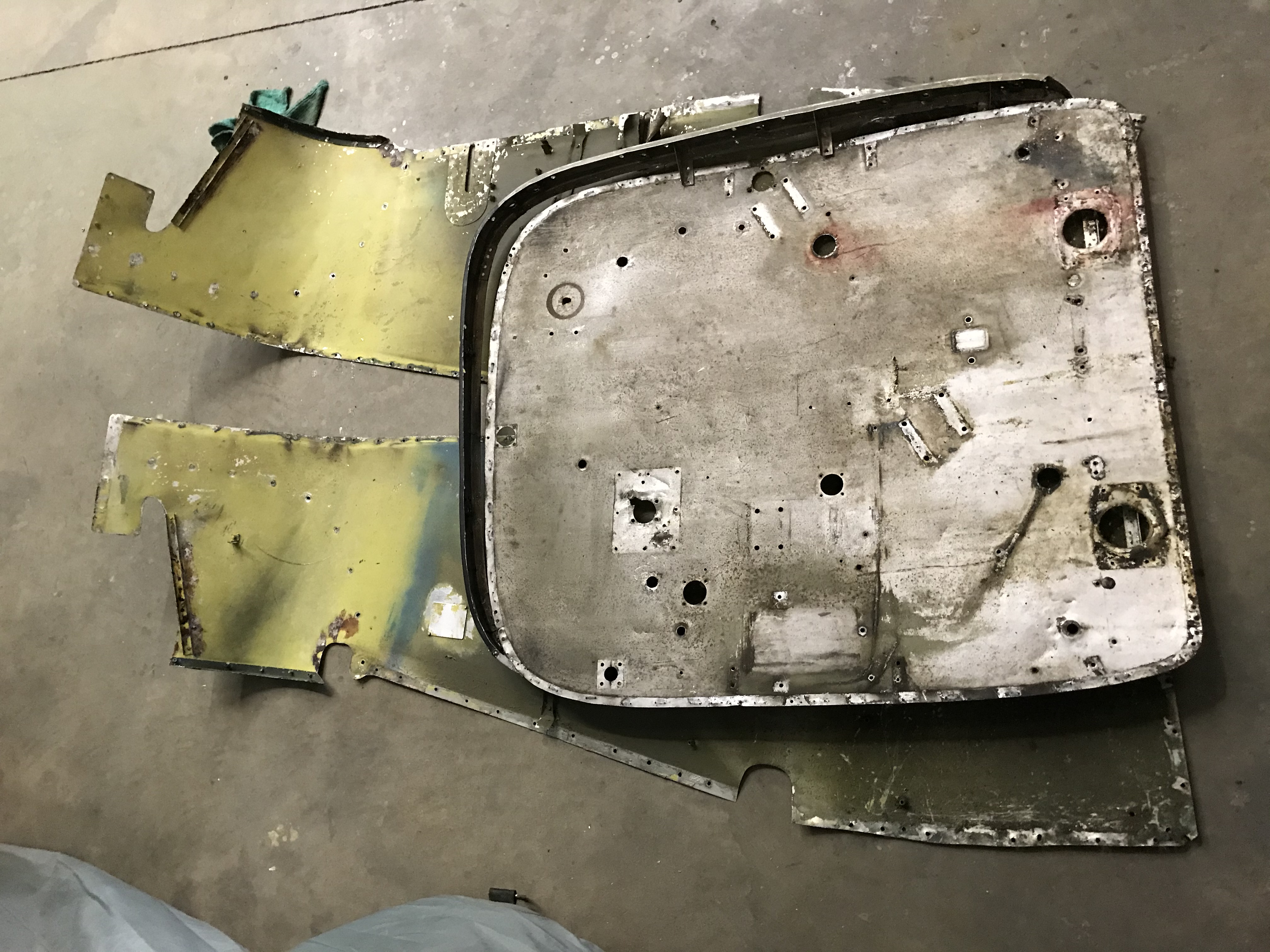

Disassembly of boot cowl and firewall. This along with Stinson factory drawings would be used to make new ones.

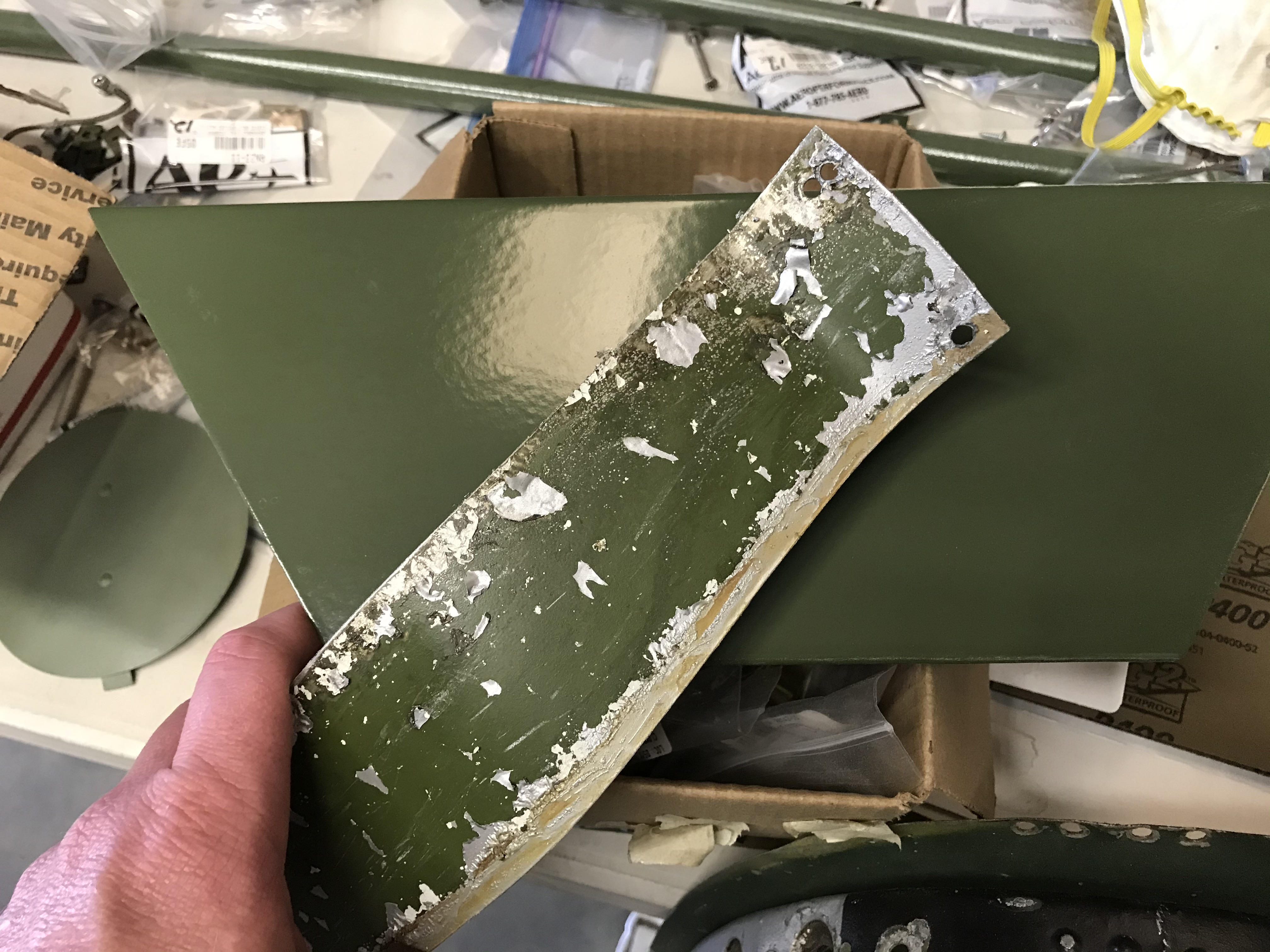

Color matching of Interior Green
new made firewall and boot cowl being cut and fitted. THe original had too many extra holes and repairs

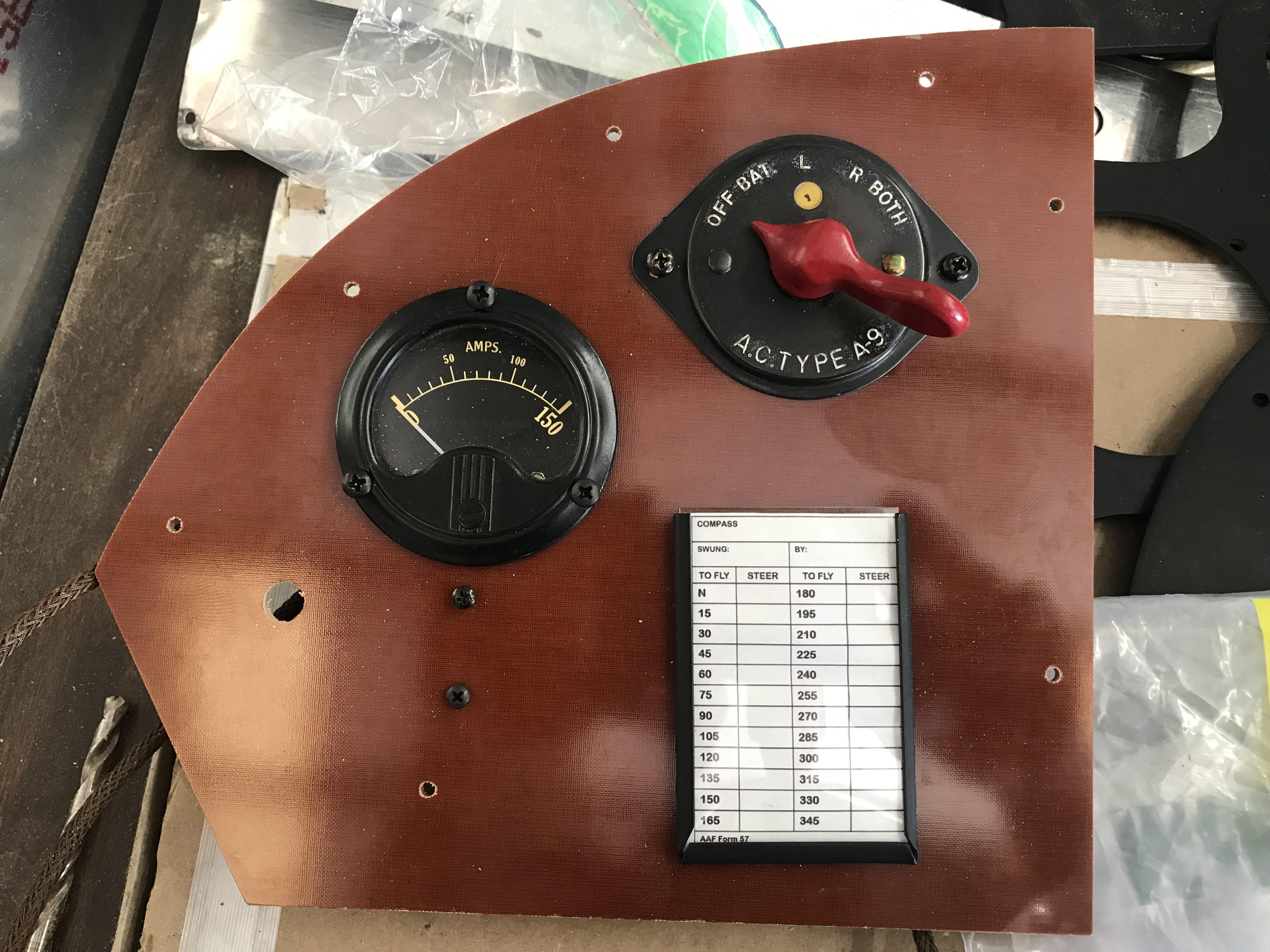

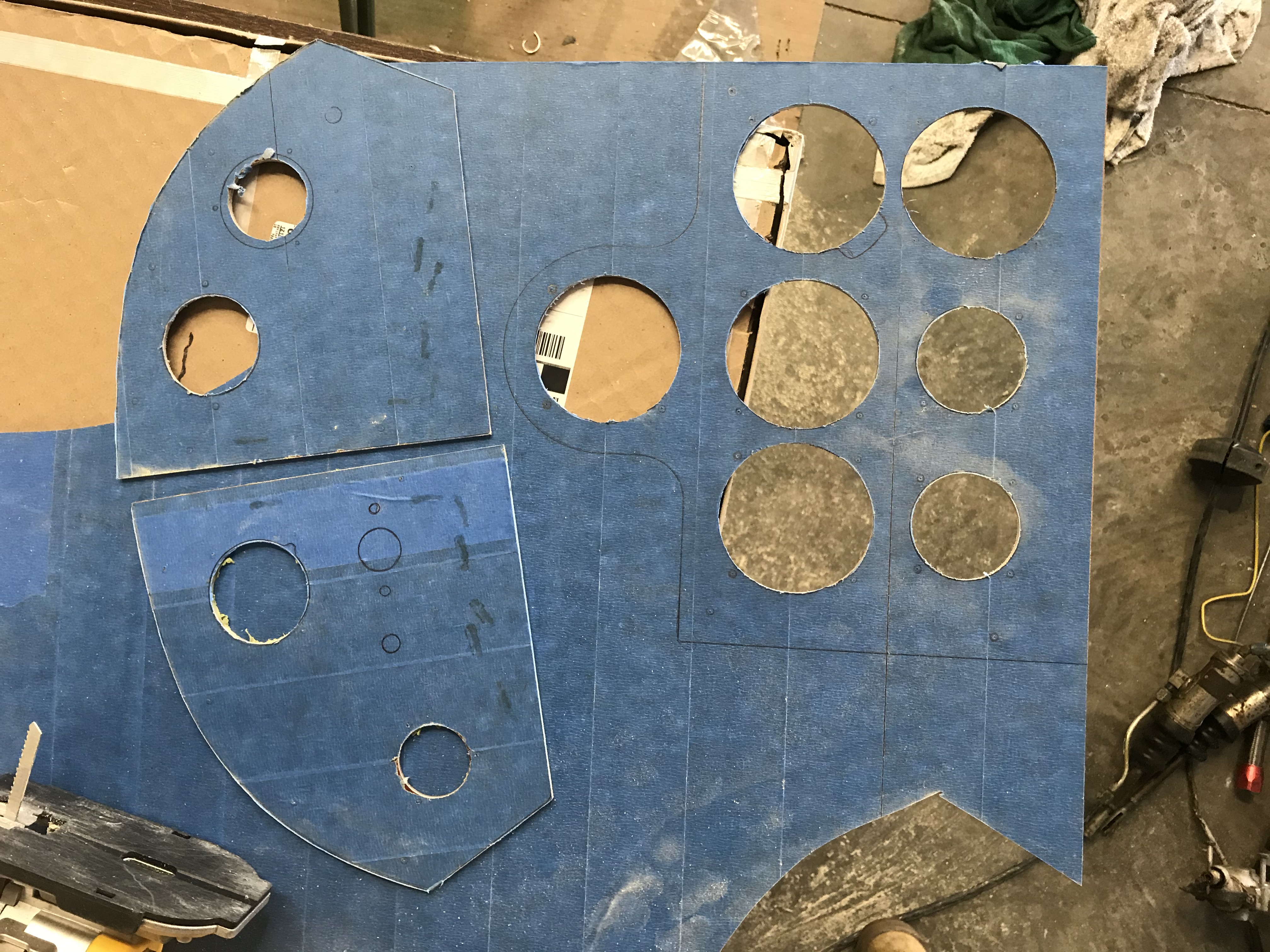

New instrument panel being cut from Linen based phenolic. Stinson Factory Drawings used to draw out pattern

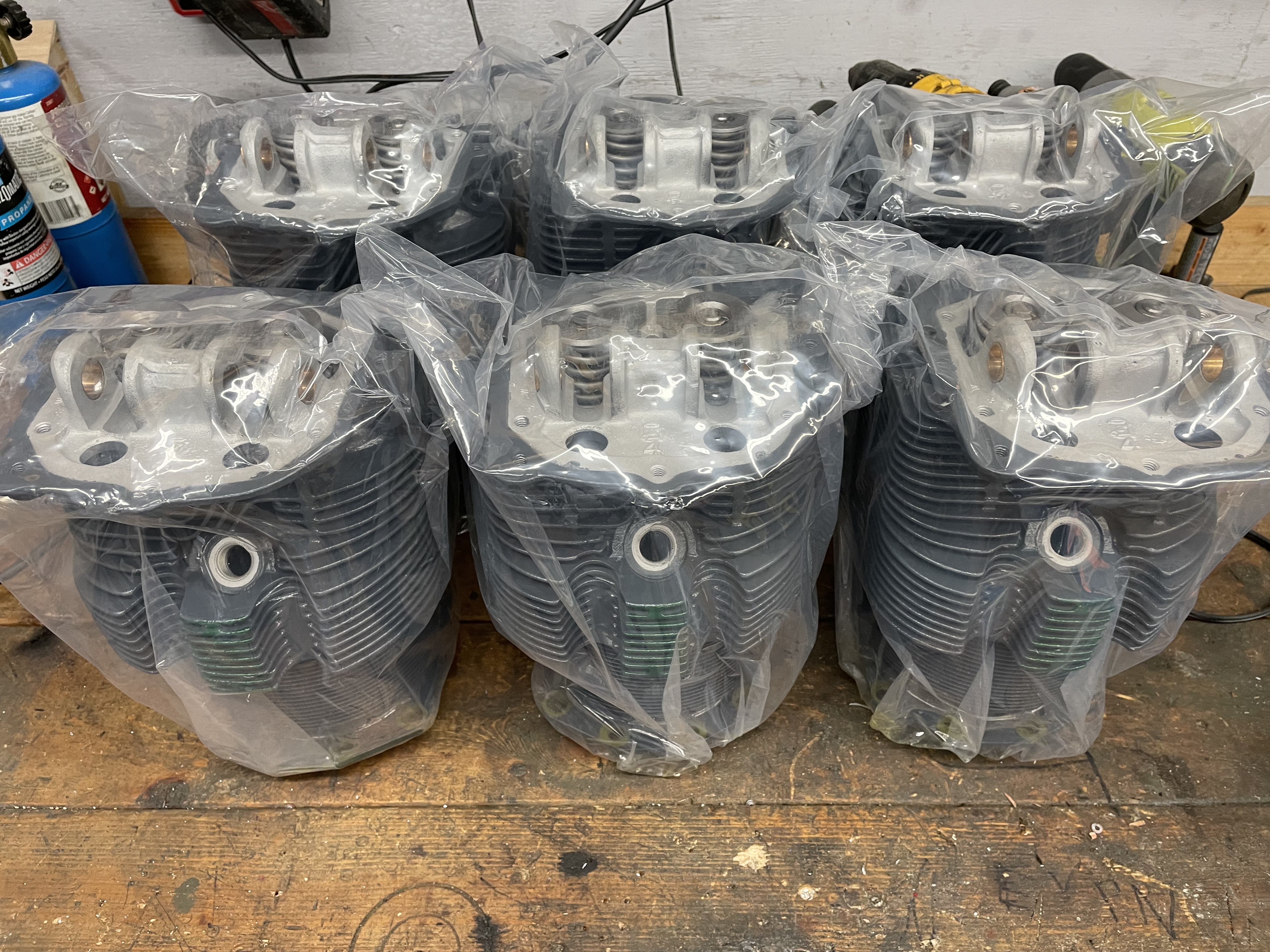

Freshly overhauled cylinders - Amblin Antique Air

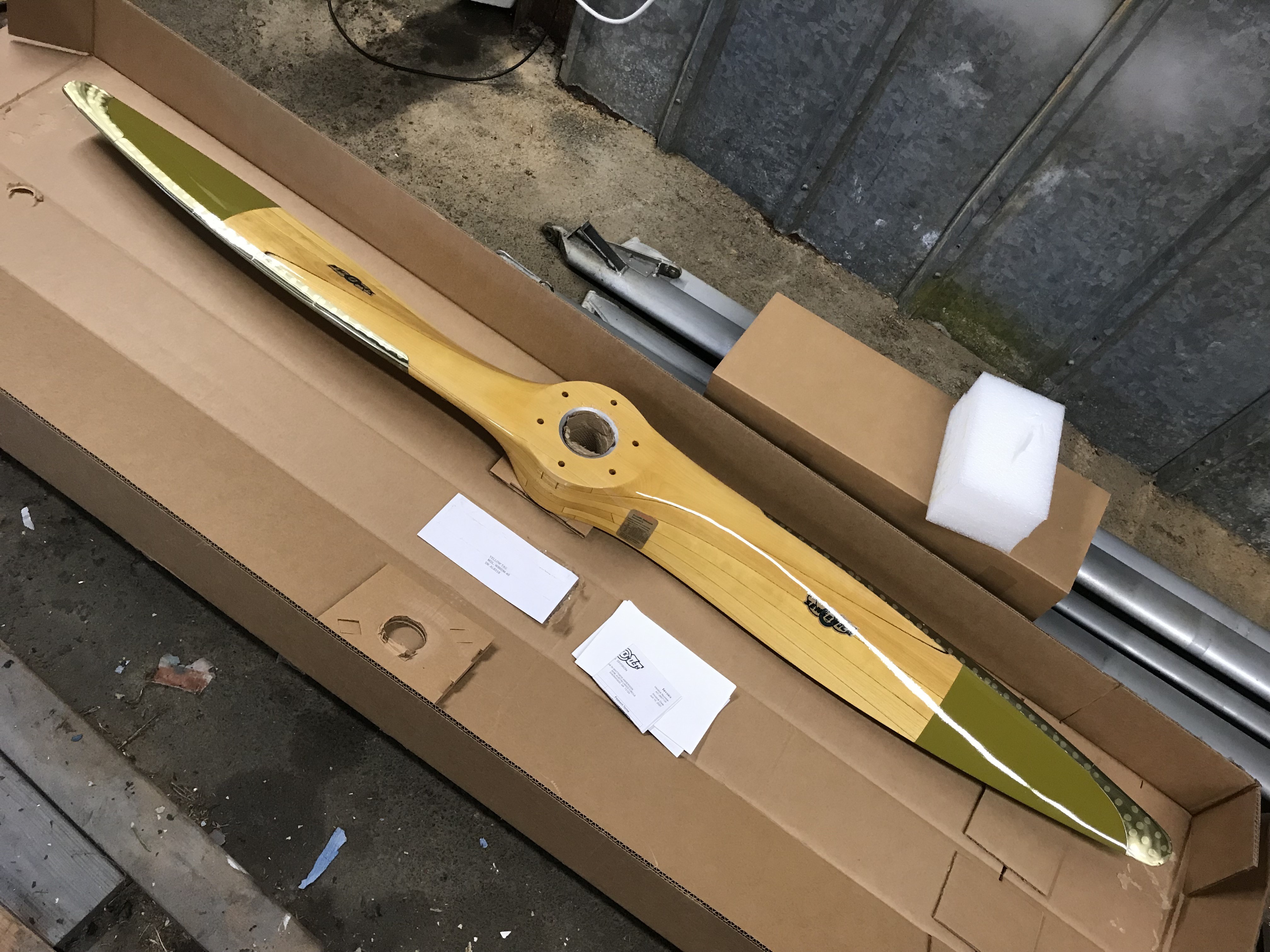

New wooden propeller from Sensenich

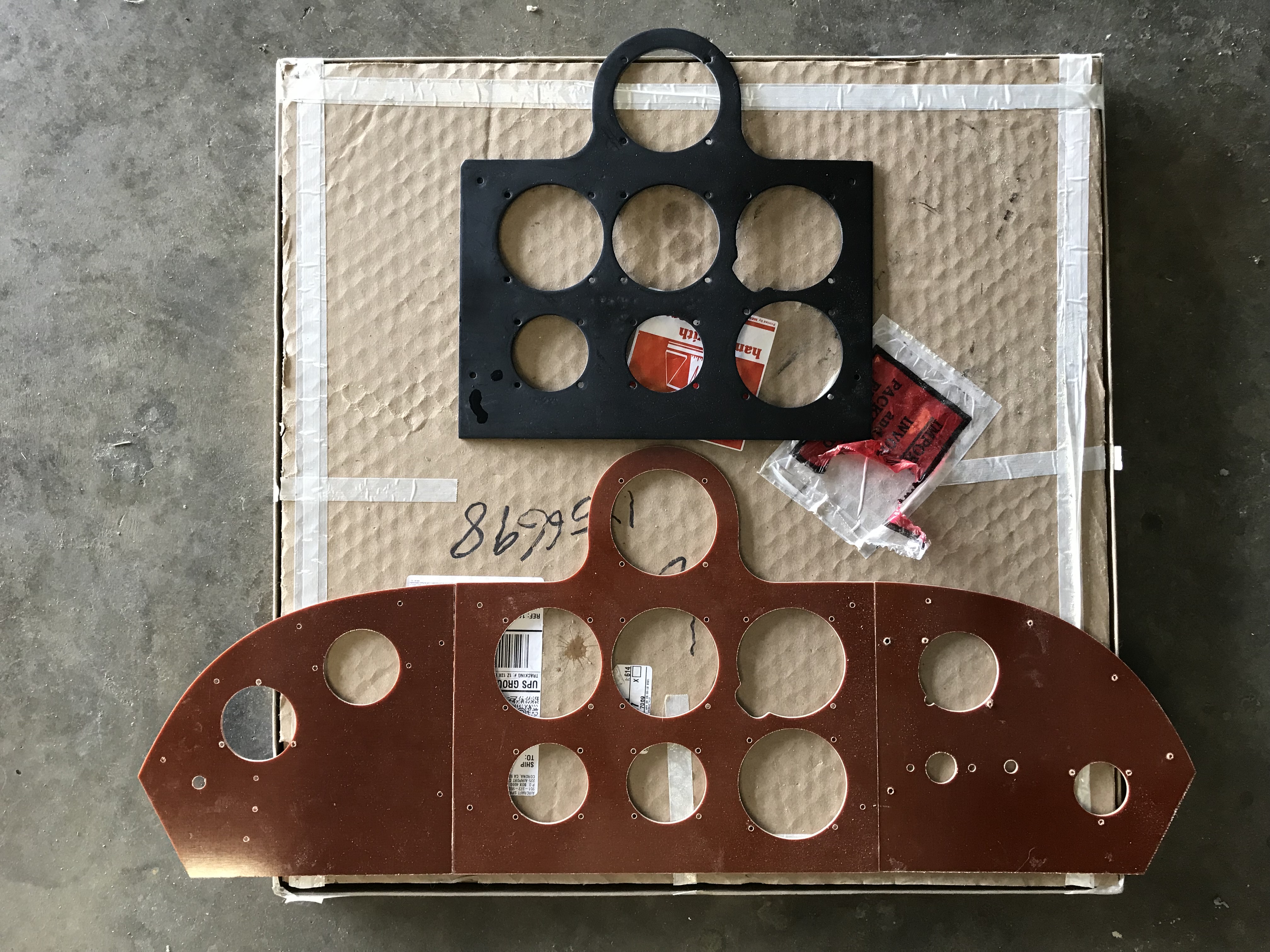

Top is the damaged original insturment panel center section. Bottom is the new instrument panel made using the original and Stinson Factory drawings

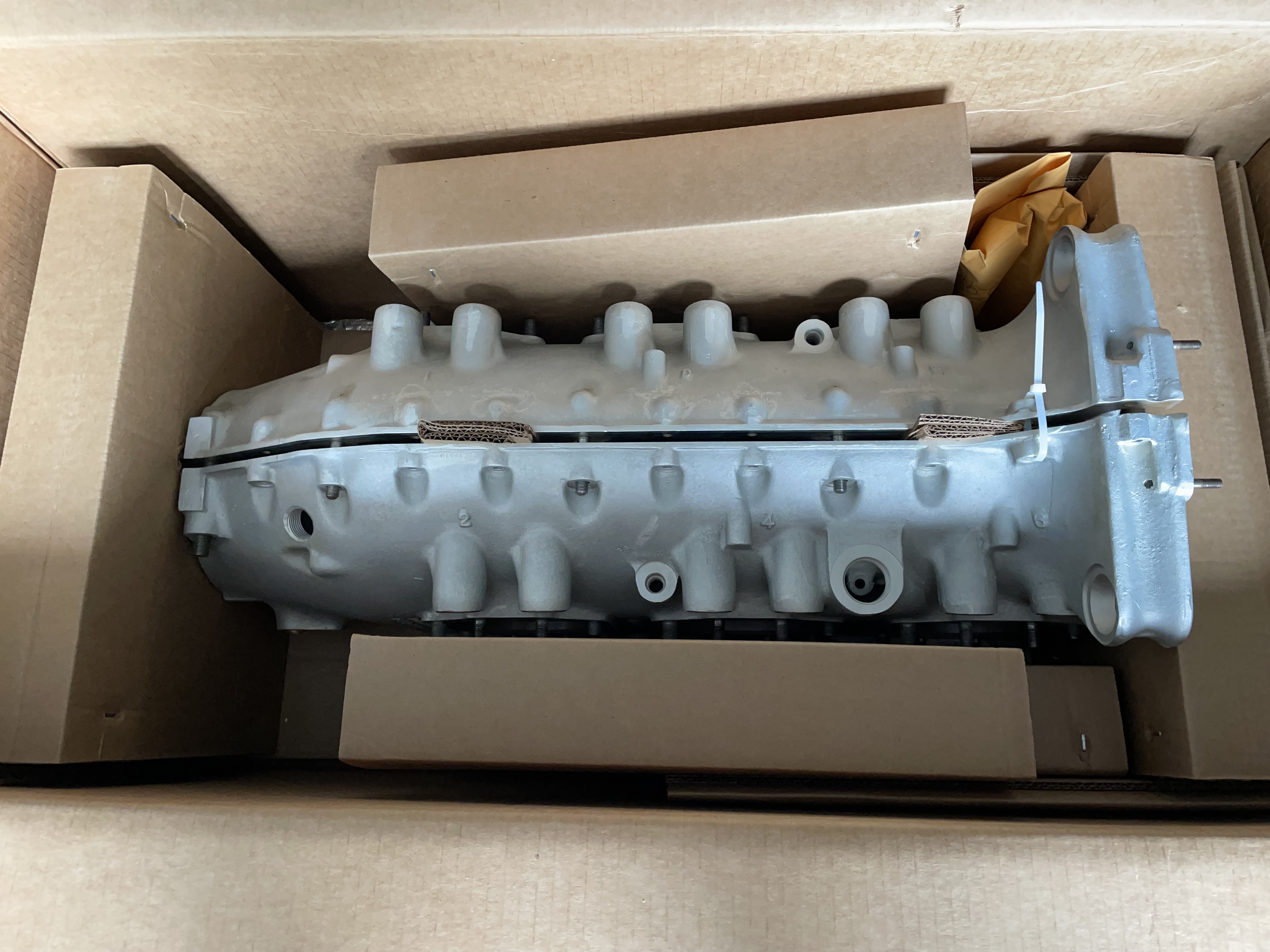

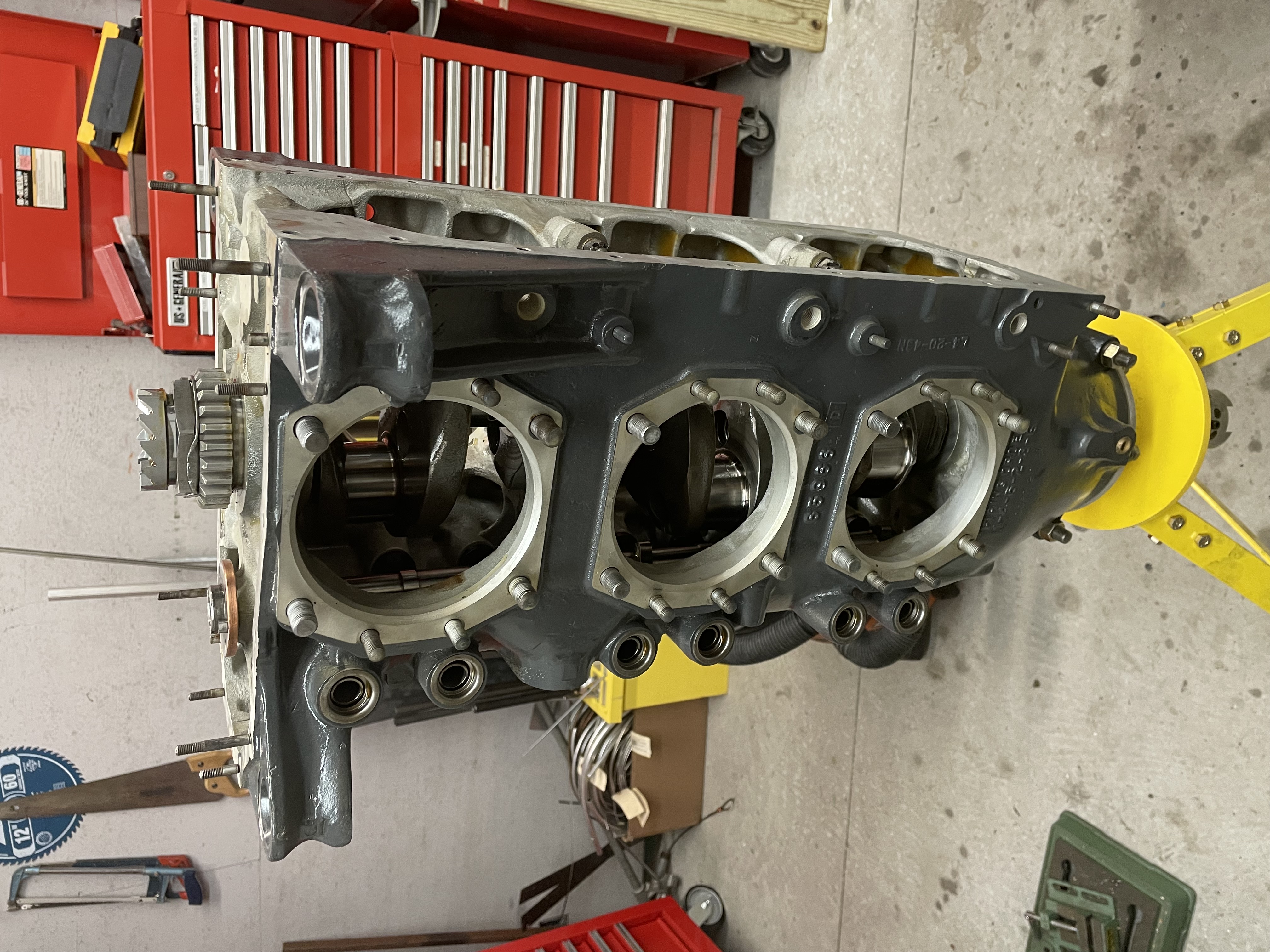

Engine Case - Amblin Antique Air

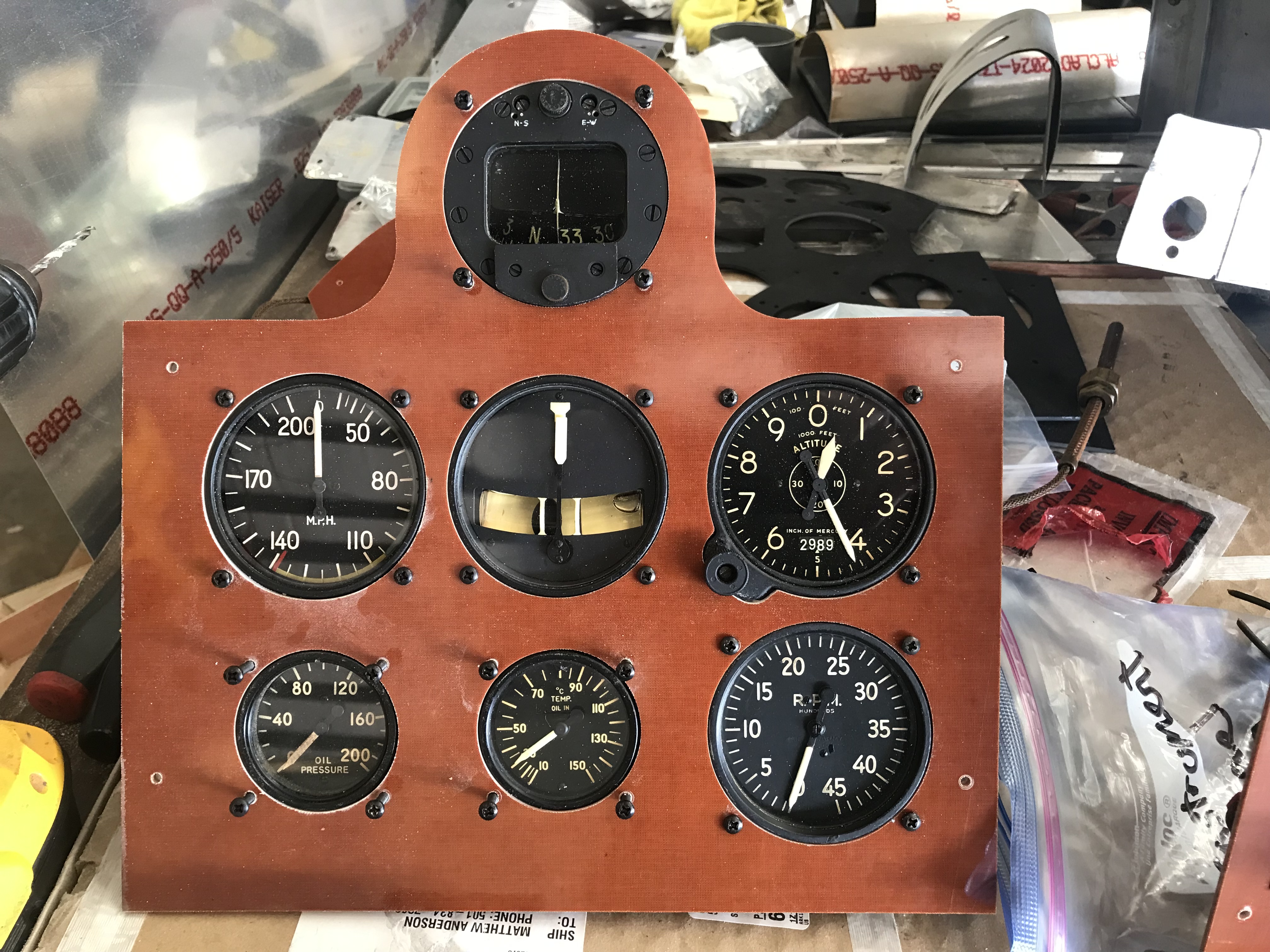

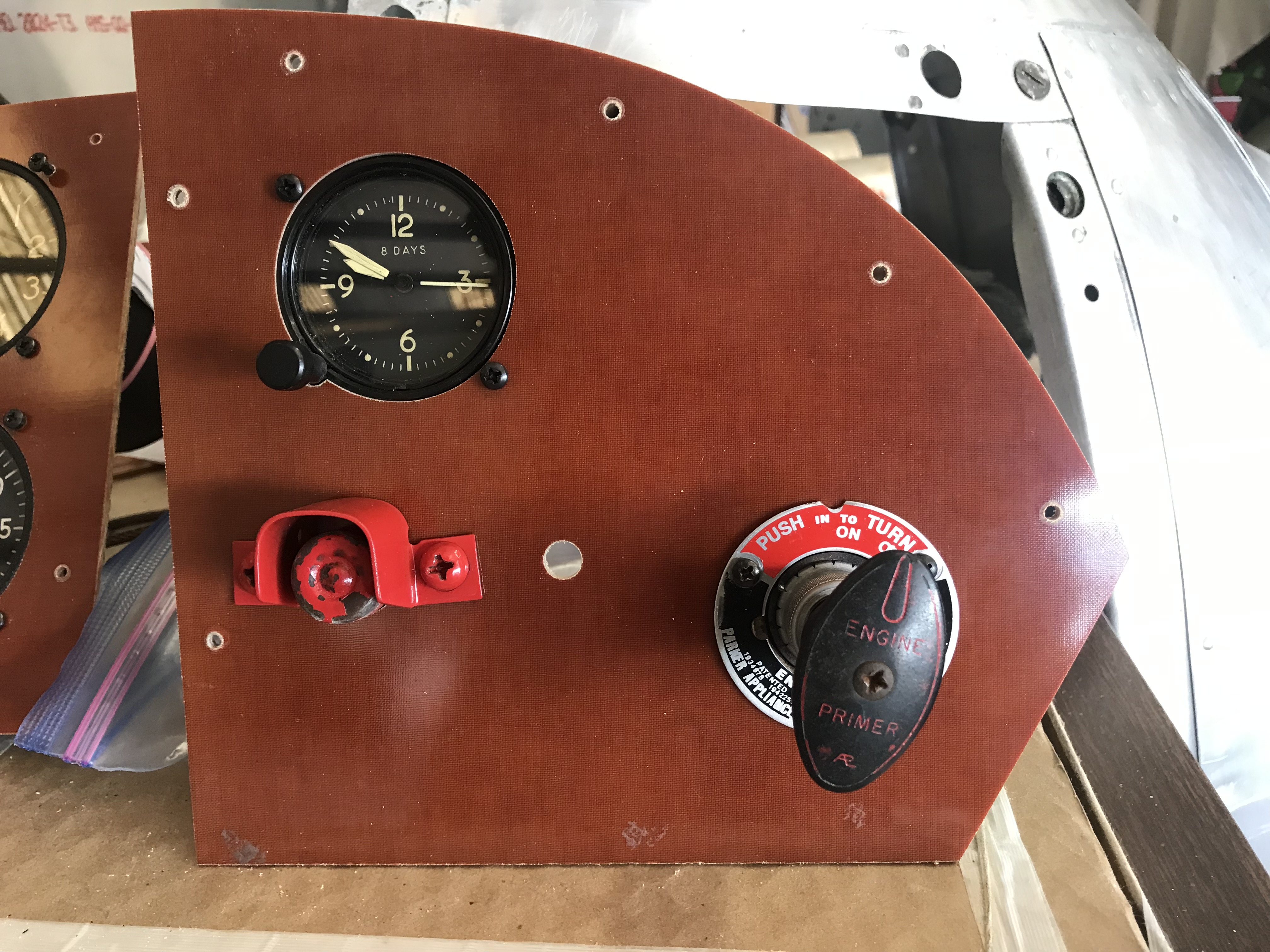

Fitting instruments in instrument panel

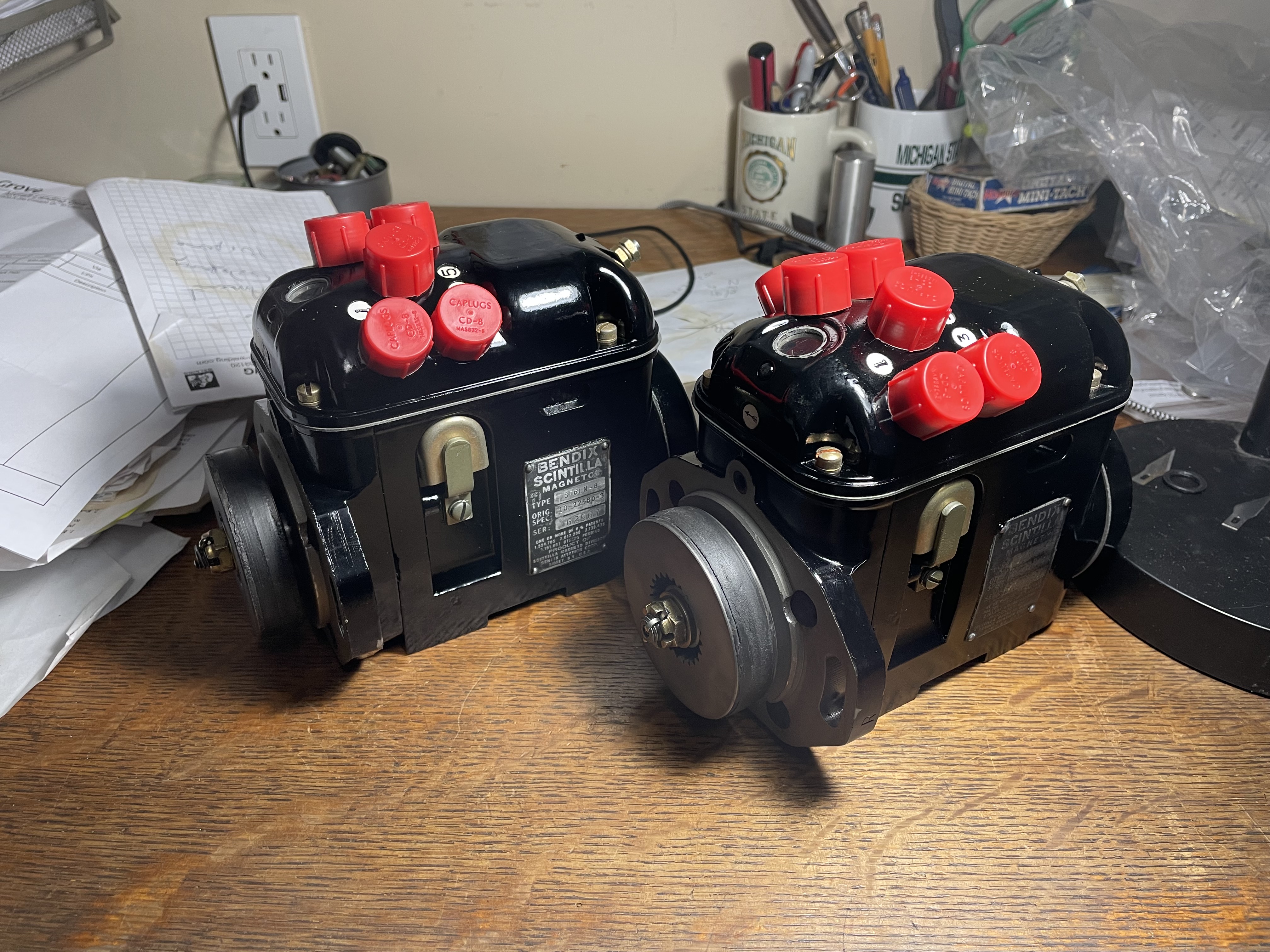

Overhauled Bendix Scintilla Magnetos - Amblin Antique Air

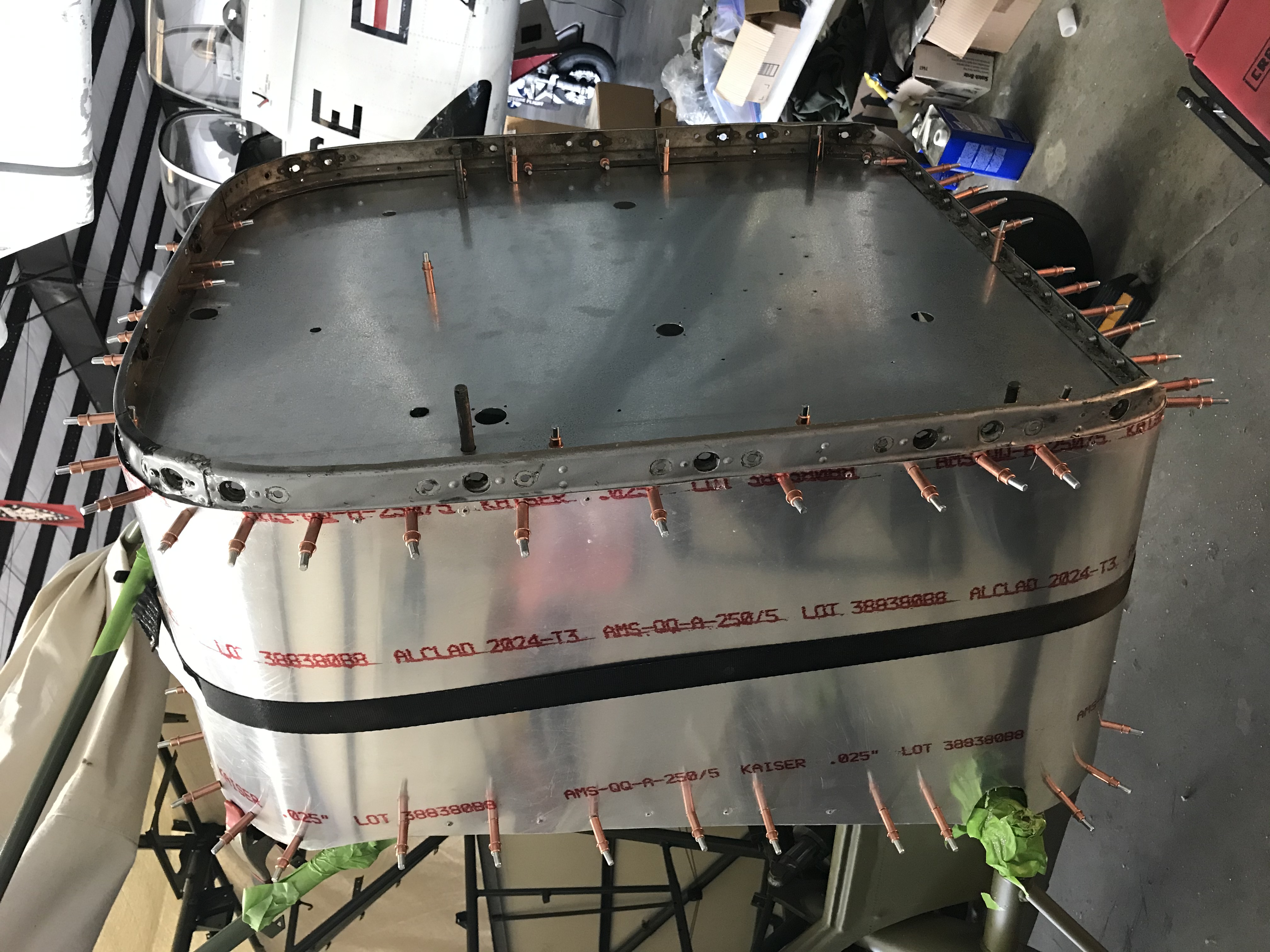

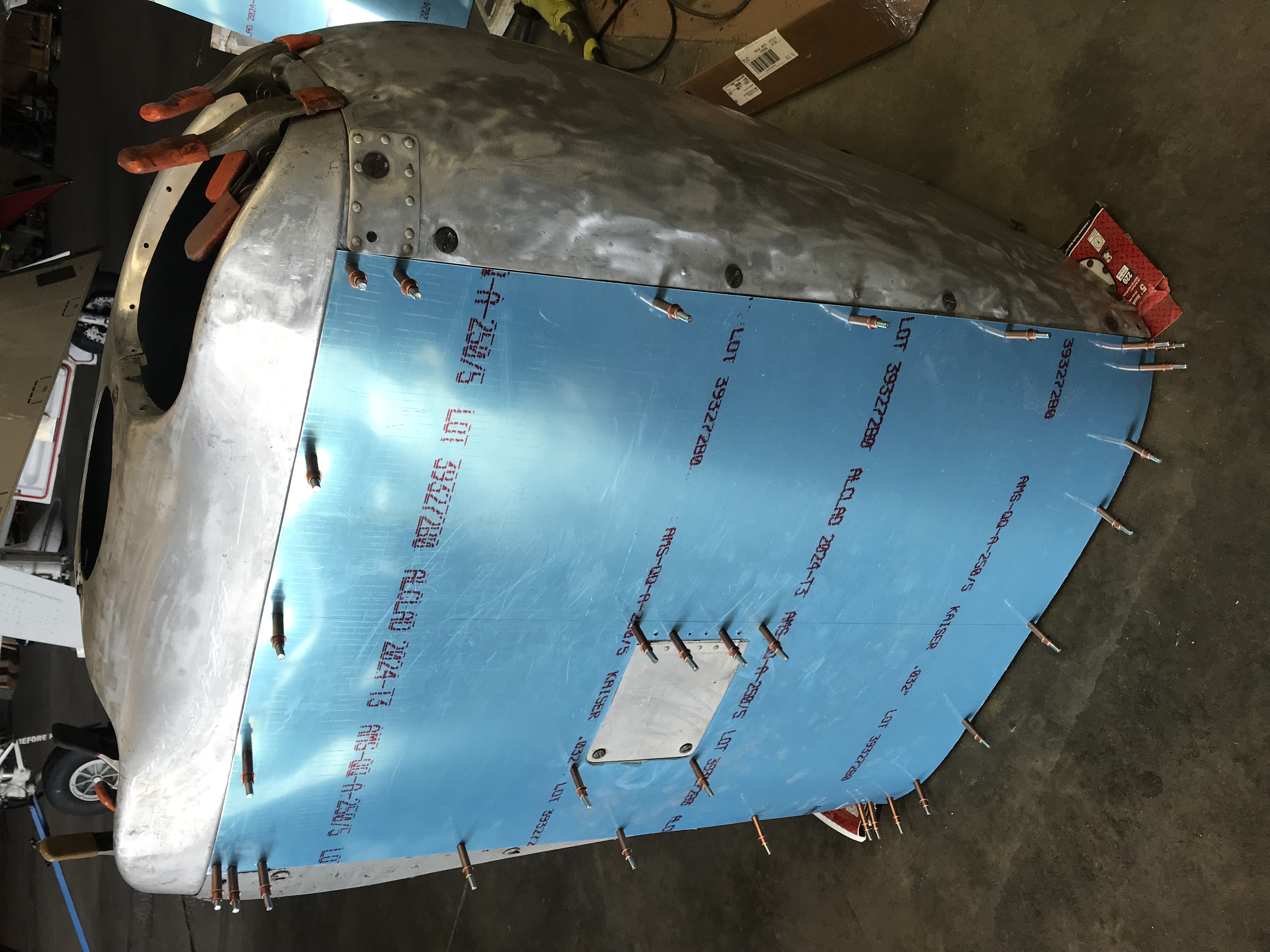

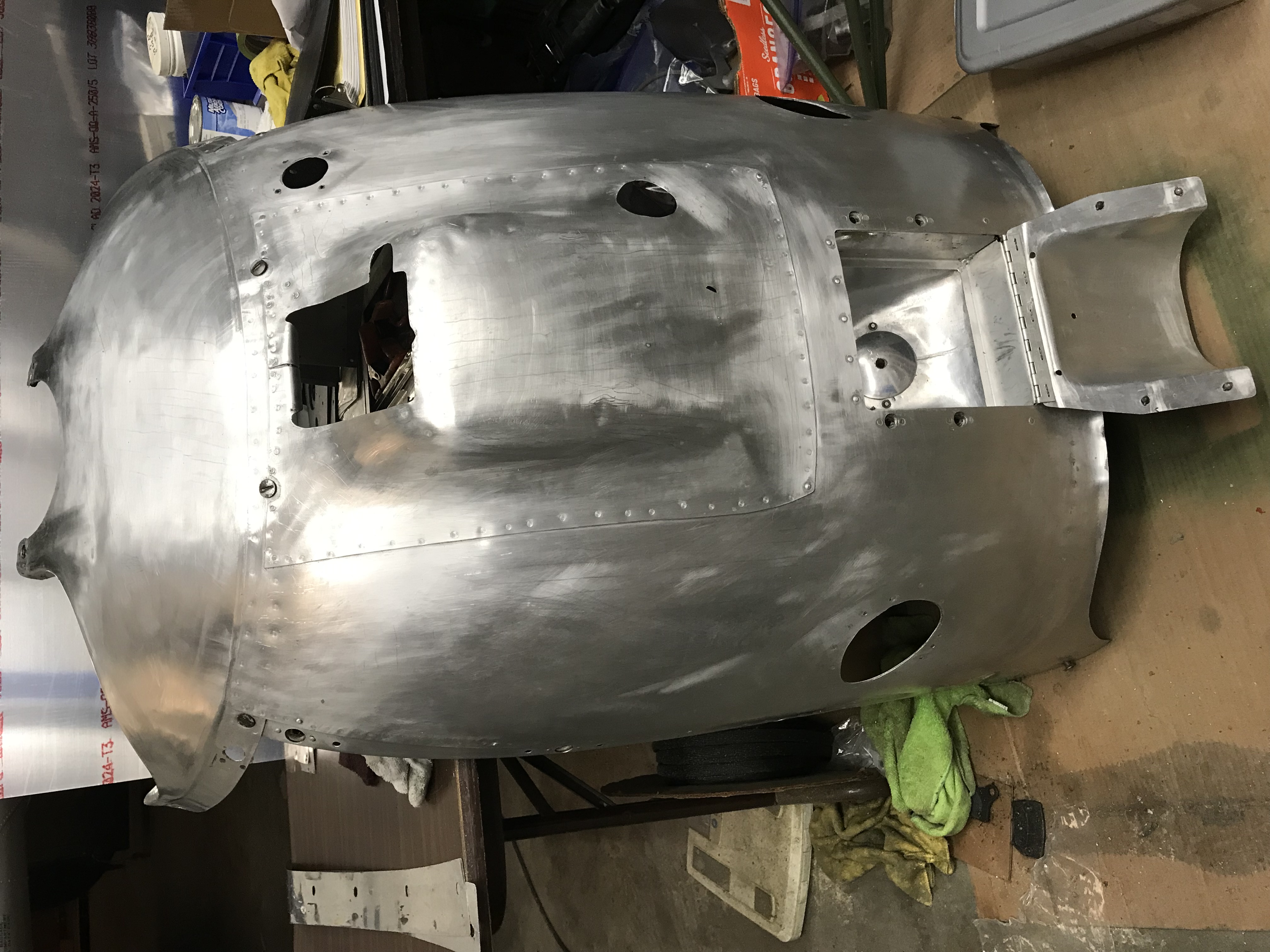

Reskinning the top of the engine cowling. The original had extensive damage and repairs

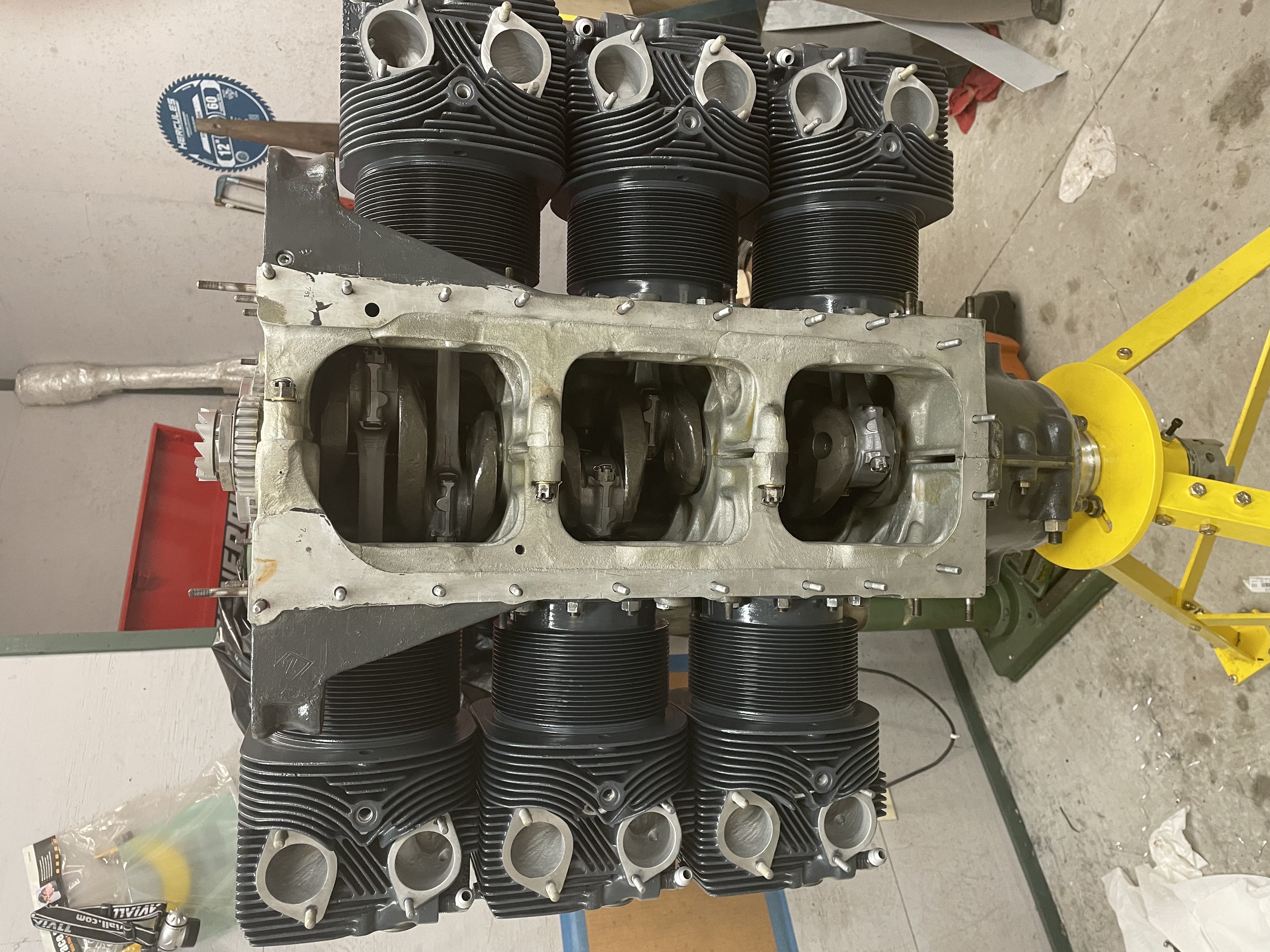

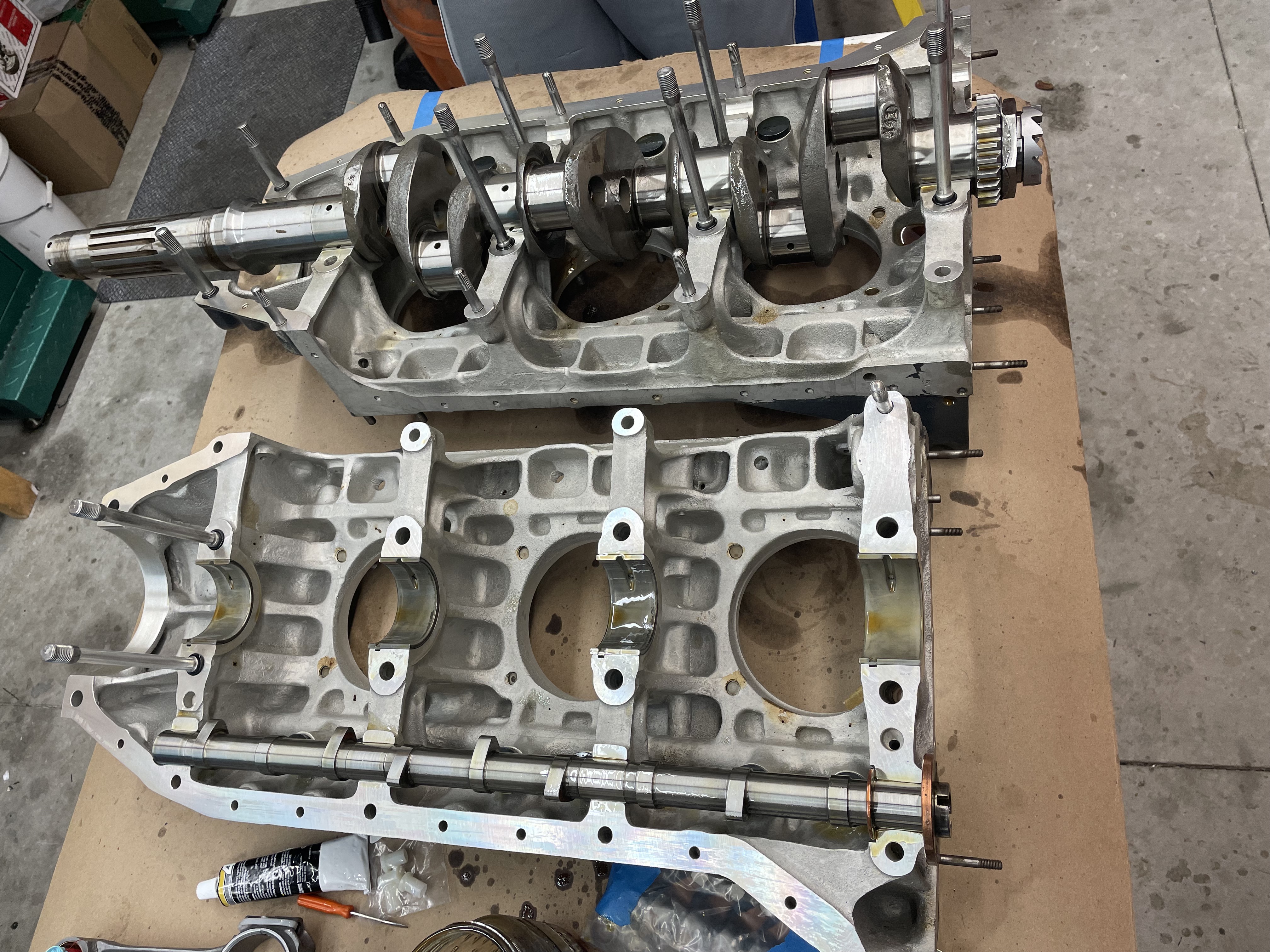

Engine build with new crankshaft and camshaft - Amblin Antique Air
Engine build - Amblin Antique Air
Engine build coming along nicely - Amblin Antique Air
Engine build - Amblin Antique Air

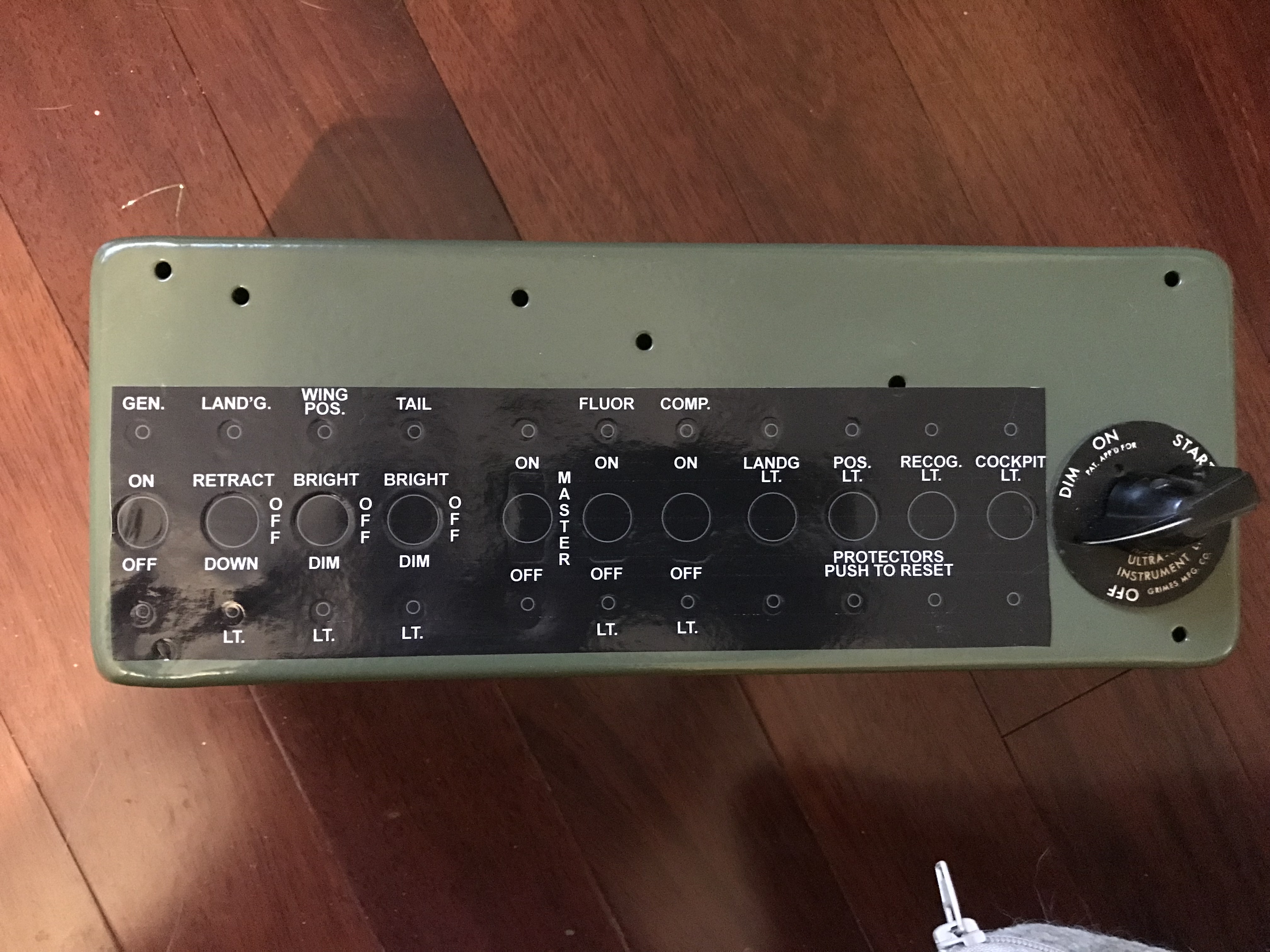

Restoration of Master Control Panel. It was very fortunate that this came in a box of parts with the aircraft.

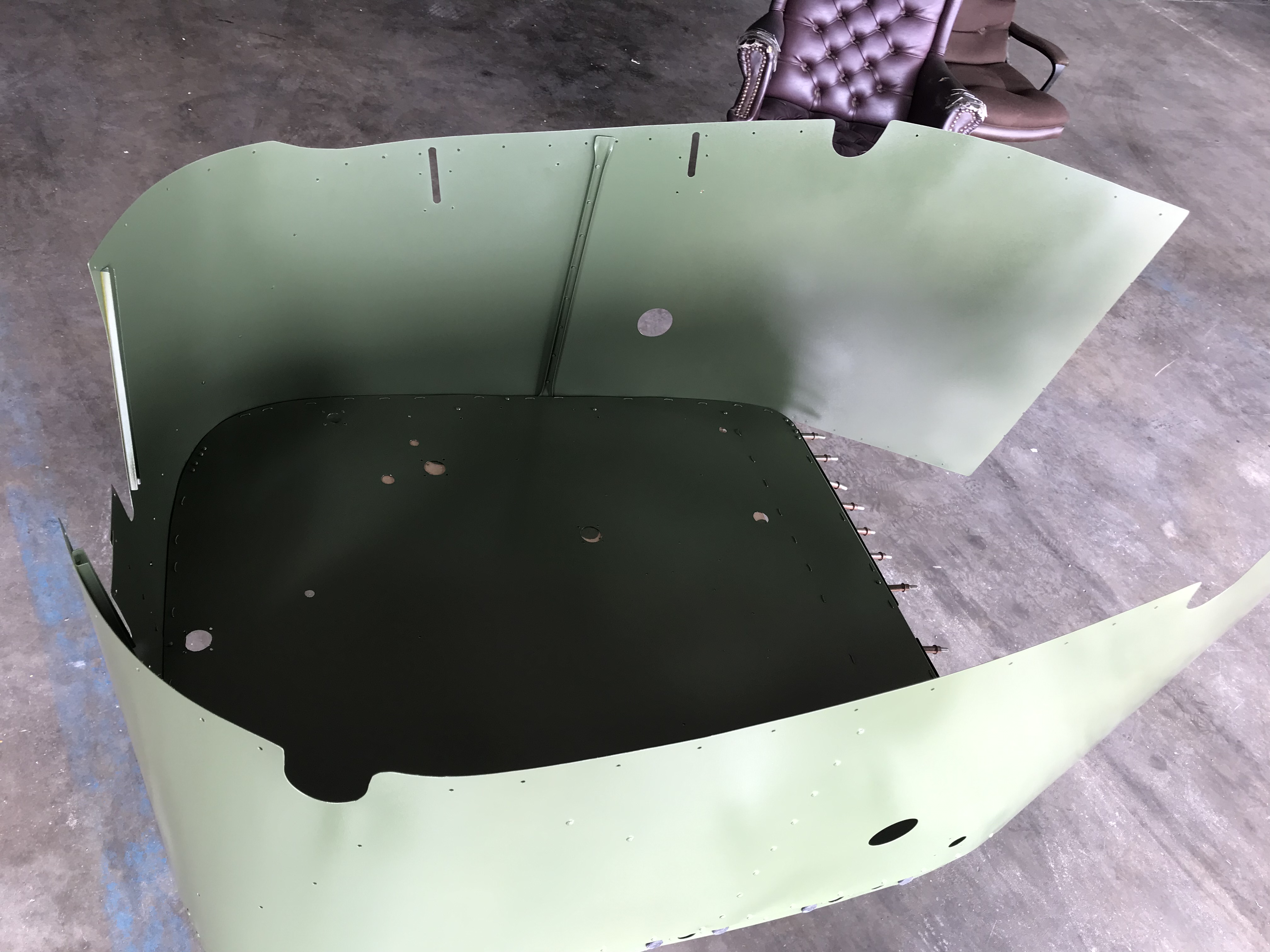

Finalizing the boot cowl

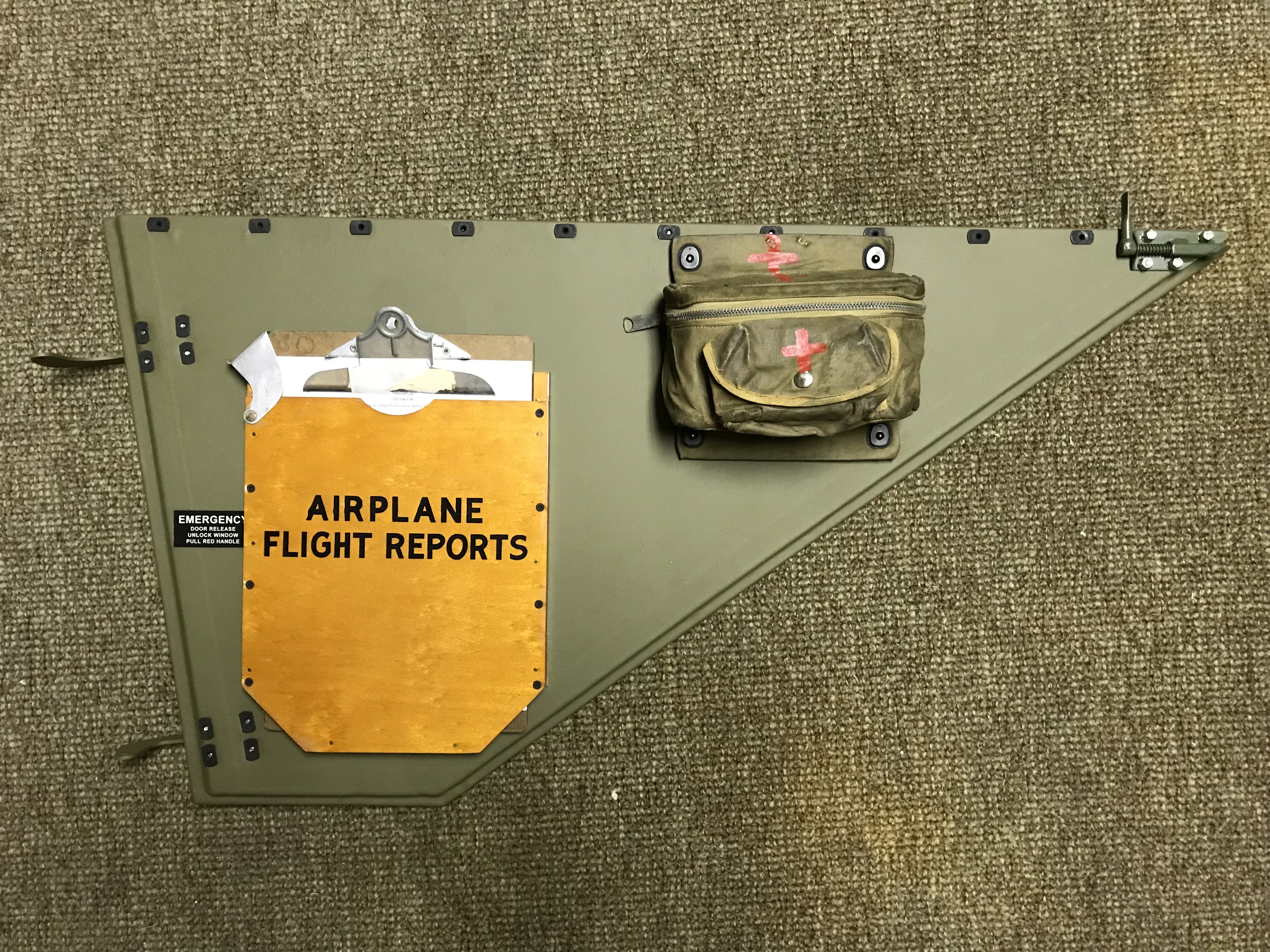

Pilot door with Flight Report Holder and First Aid Kit ready to install on aircraft

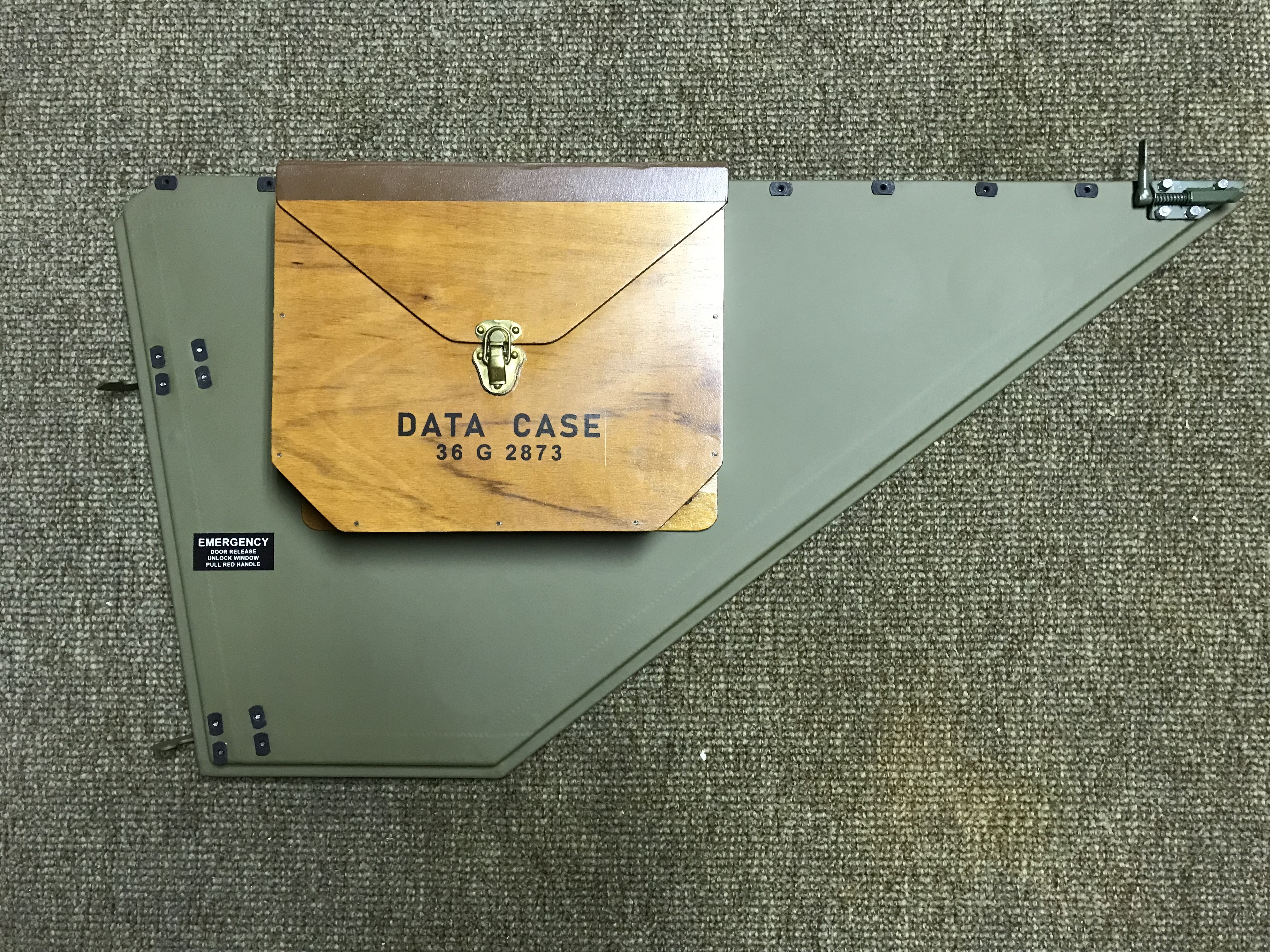

Observer door with wooden Data Case. Since wooden Data Cases are unavailable. I made this one based on an original.
DATE: 01 SEP - 30 NOV 2021
- (A) Instrument Panel – Installed instruments and installed on airframe IAW Stinson Factory Drawings 76- Series and T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
- (A) Doors – Assembled IAW Stinson Factory Drawings 76- Series and T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
- (A) Controls, Pilot/Copilot – Installed IAW Stinson Factory Drawings 76- Series and T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
- (A) Recognition Lights – Installed IAW Stinson Factory Drawings 76- Series and T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
- (A) External Power Plug – Installed IAW Stinson Factory Drawings 76- Series and T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
- (A) Rudder – Installed and Rigged IAW Stinson Factory Drawings 76- Series and T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956

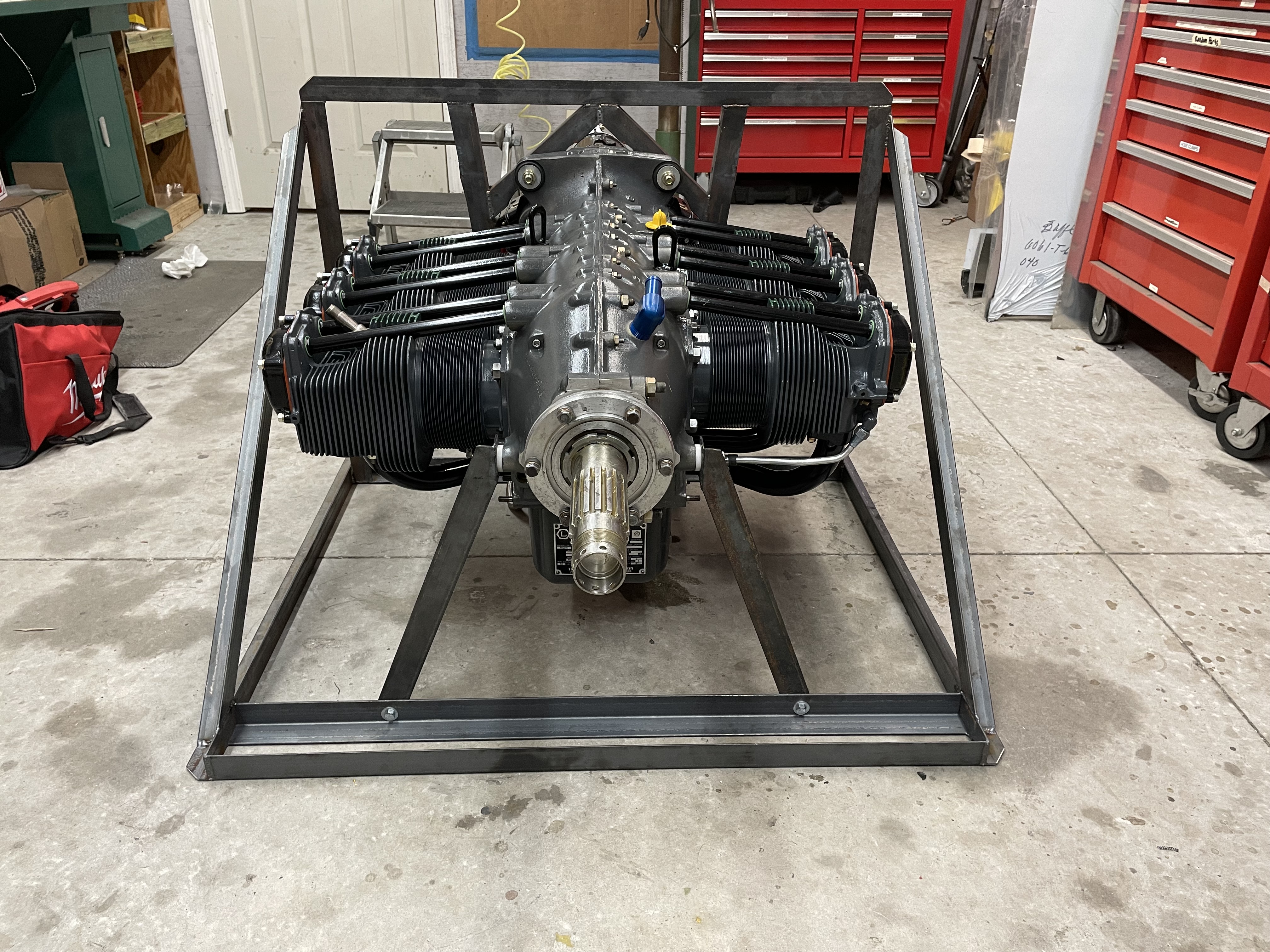

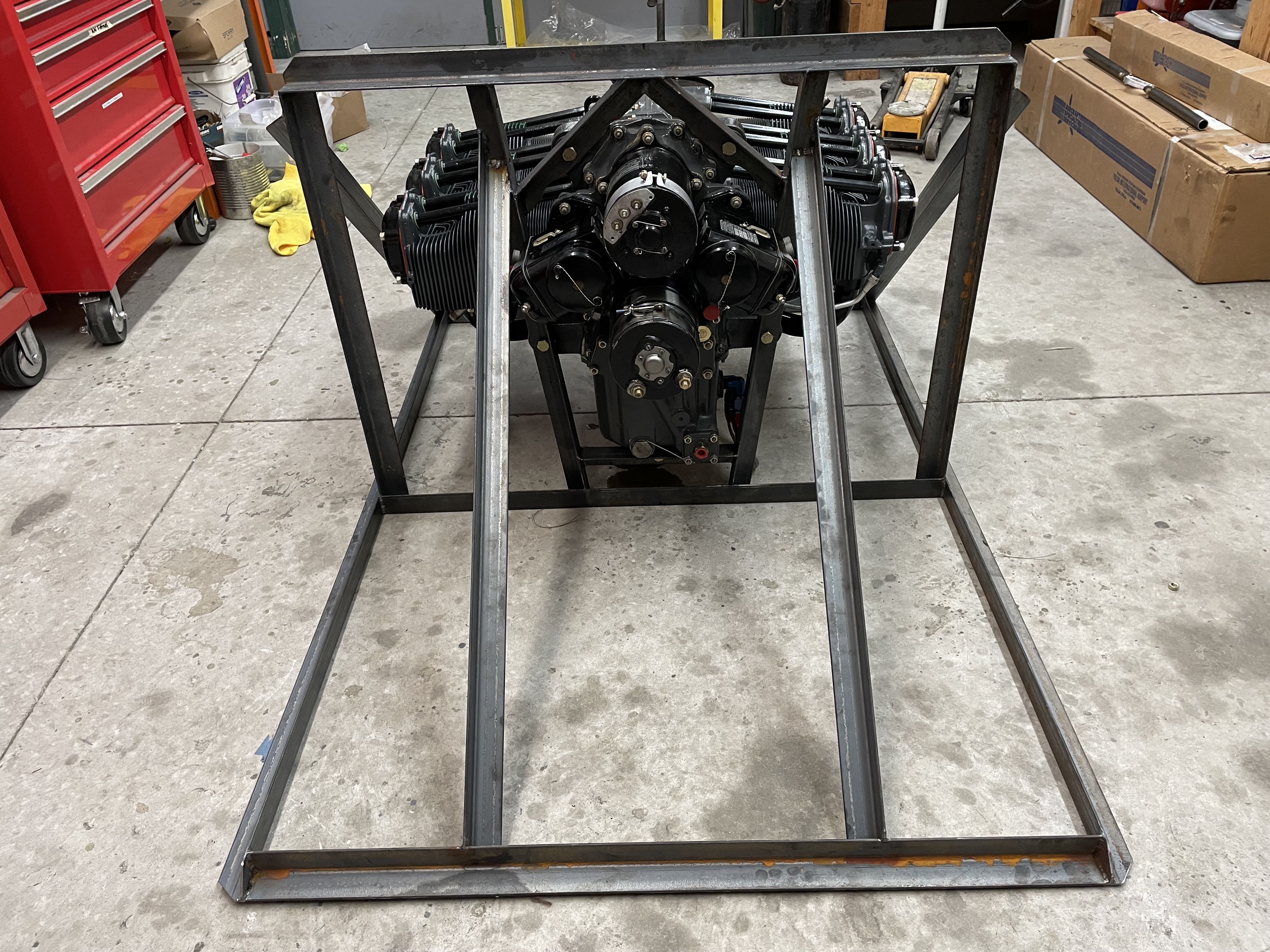

Engine build complete and ready for pick up - Amblin Antique Air

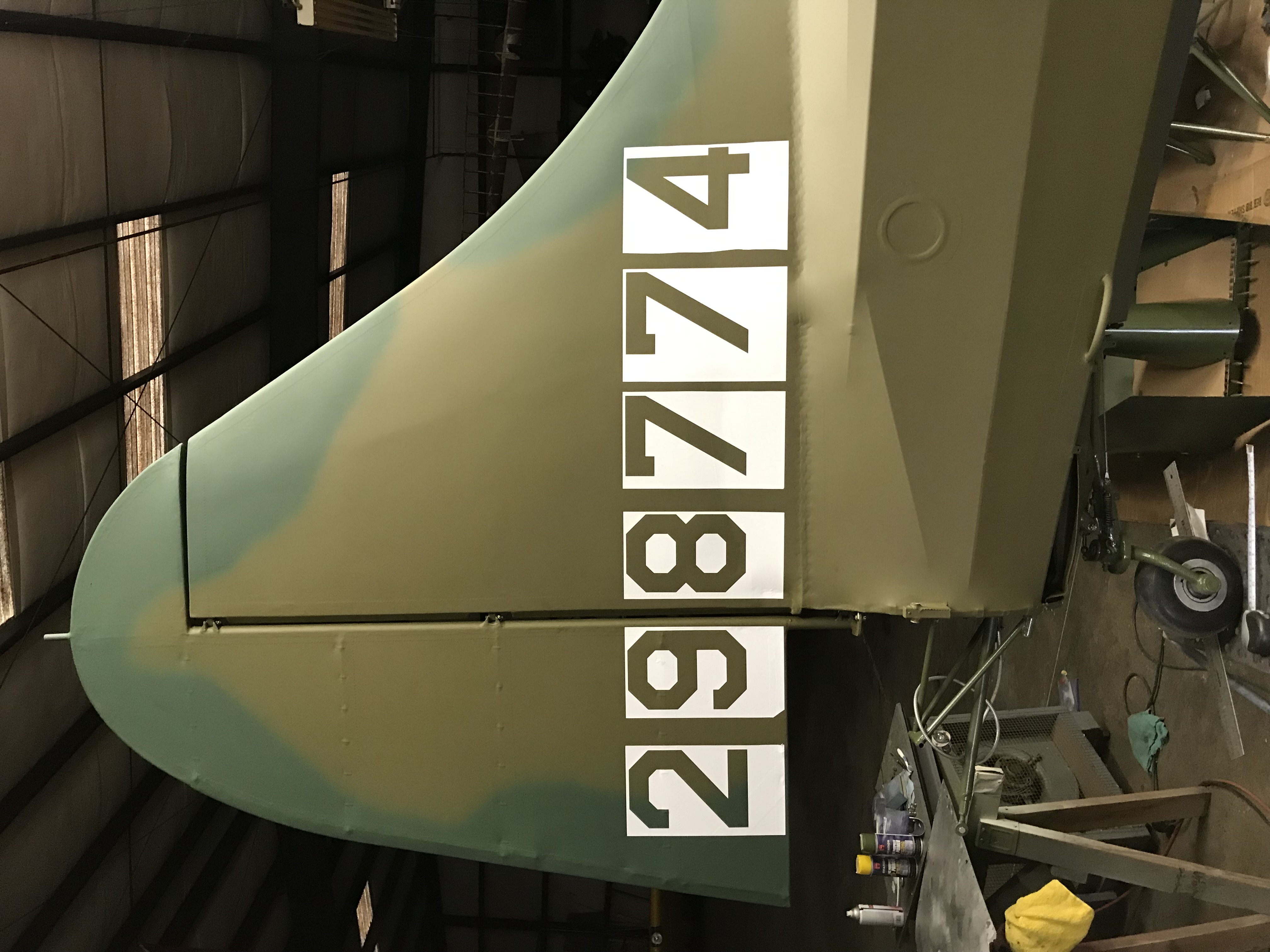

Prepping to paint Aircraft Registration Number

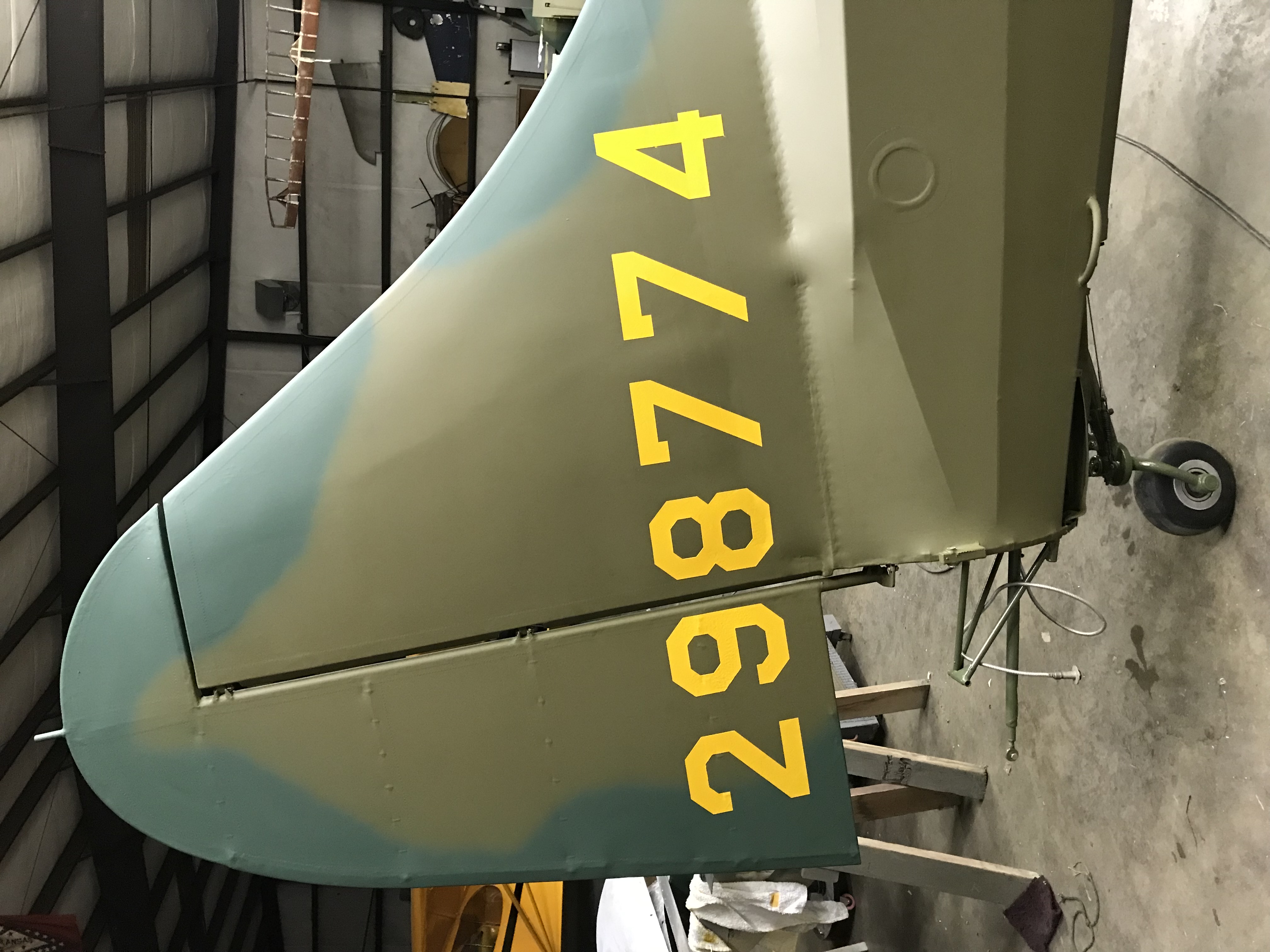

Aircraft Registration Number complete

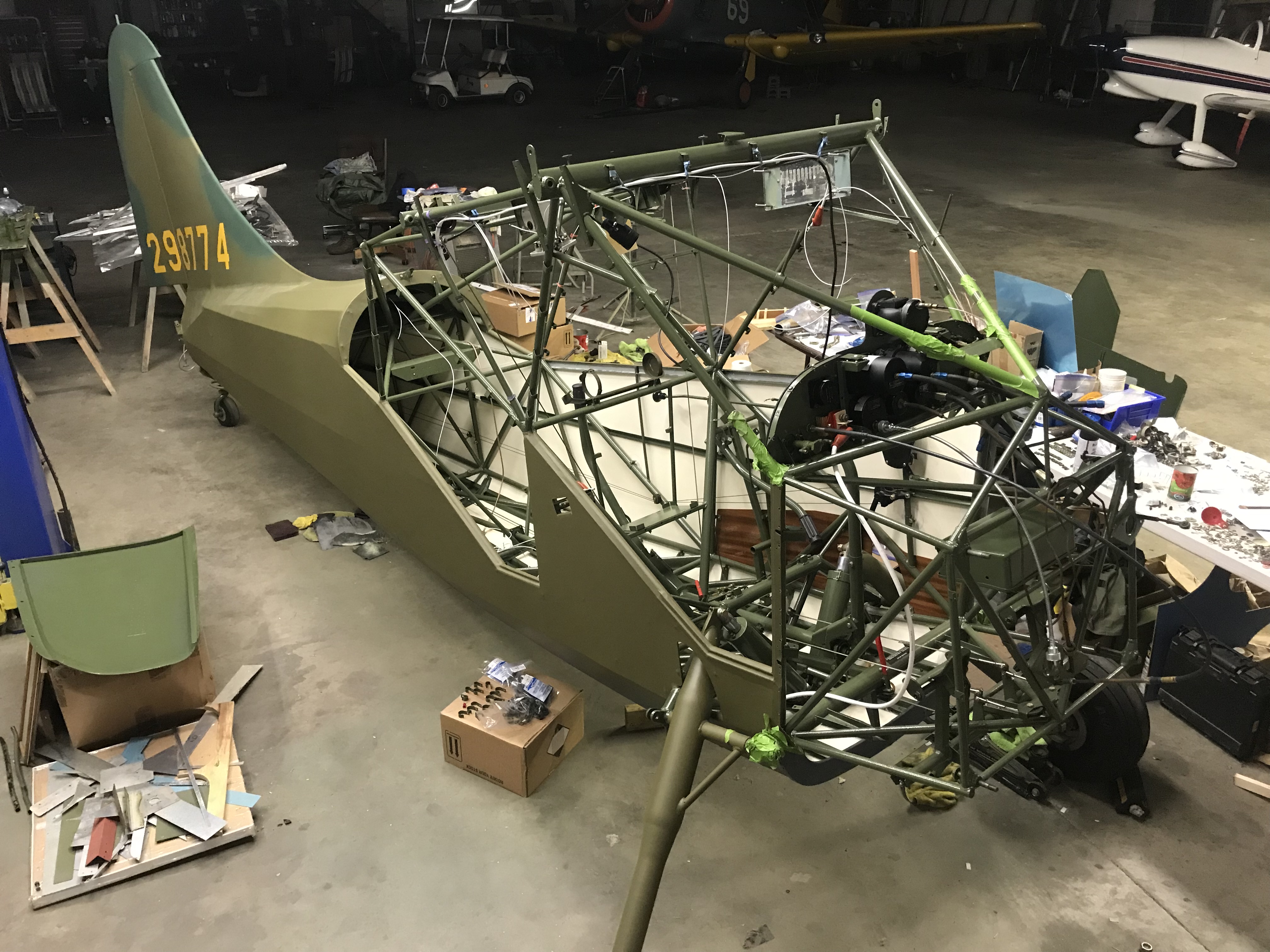

Plumbing and wiring, alot goes into these aircraft

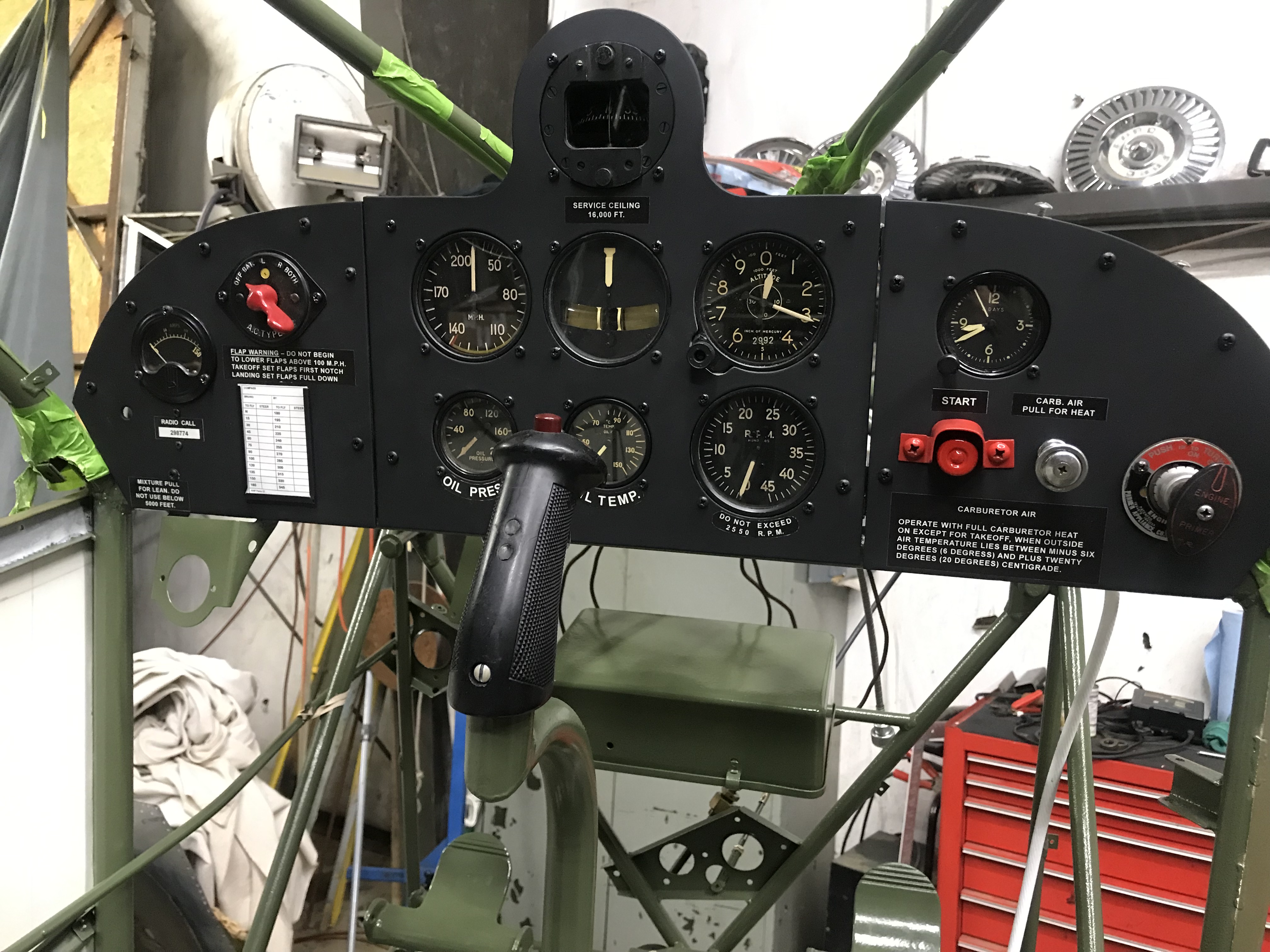

Finishing up the instrument panel
Lower cowling primed, will soon be prepped and painted
Upper cowling primed, will soon be prepped and painted
DATE: 08 – 15 DEC 2021
- (A) Metal Parts – Sanded, cleaned, prepped and painted IAW Stinson Factory Drawings 76- Series and T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956

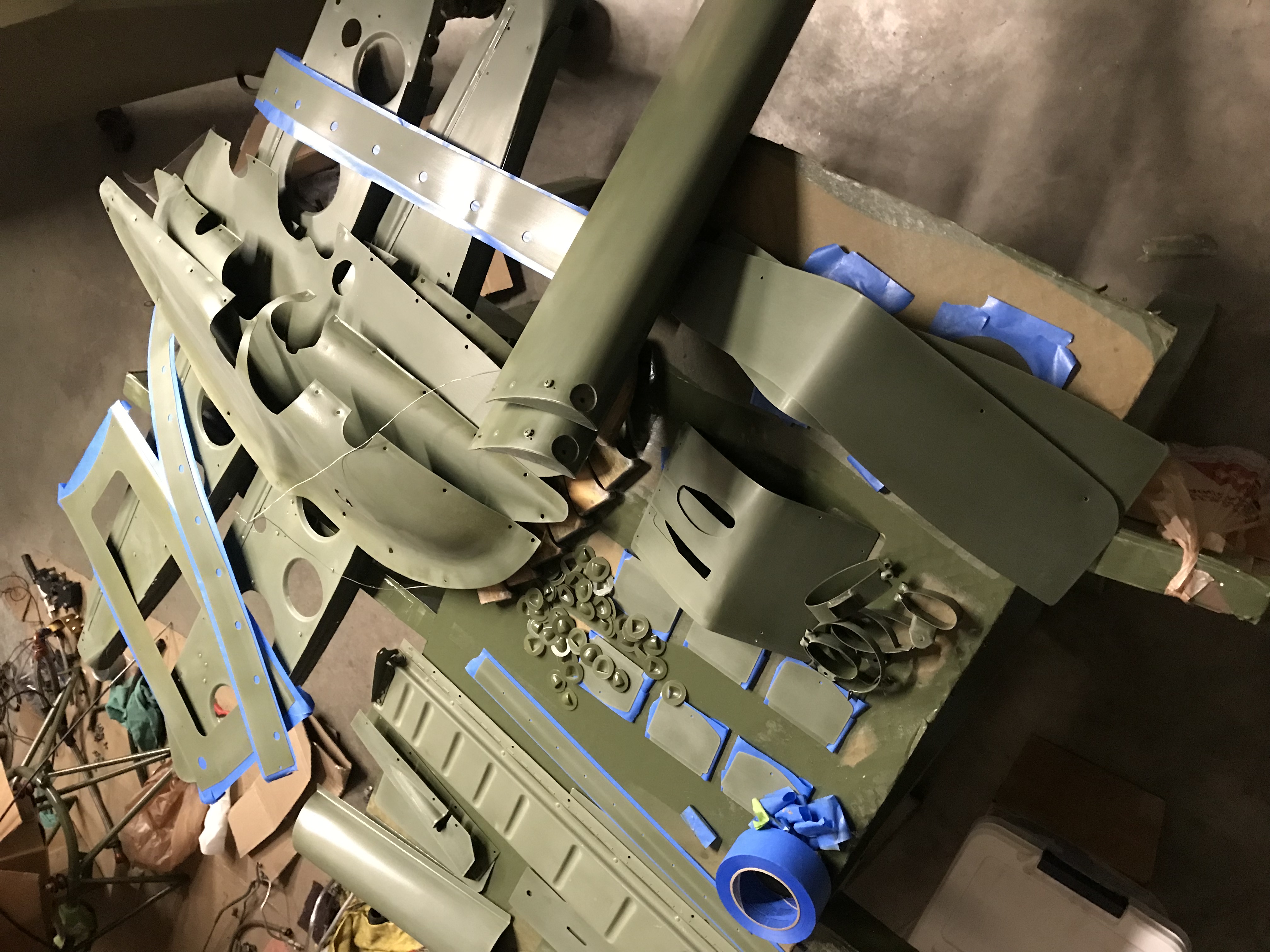

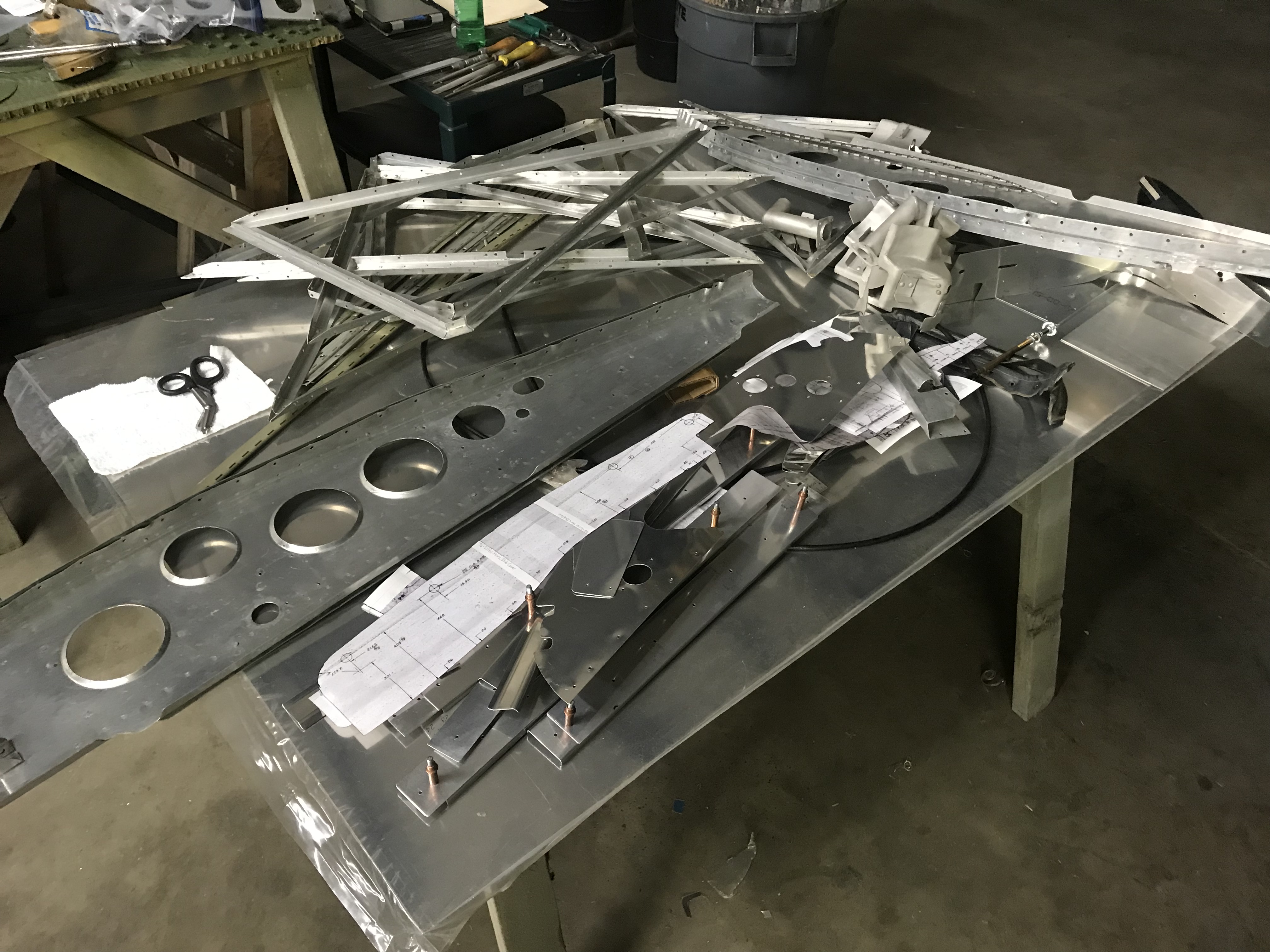

Alot of metal parts had to be paint stripped and prepped. Others had to be made

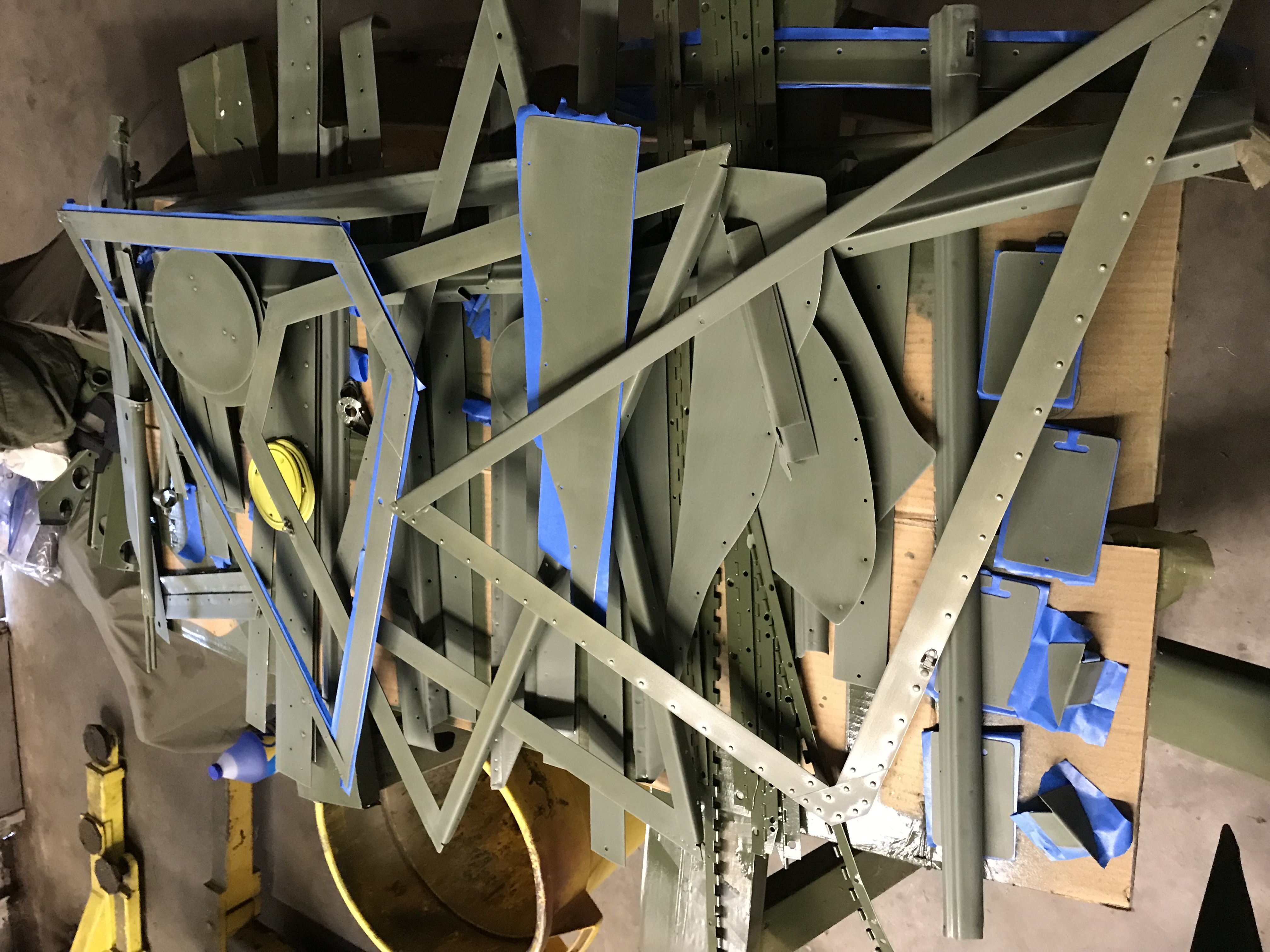

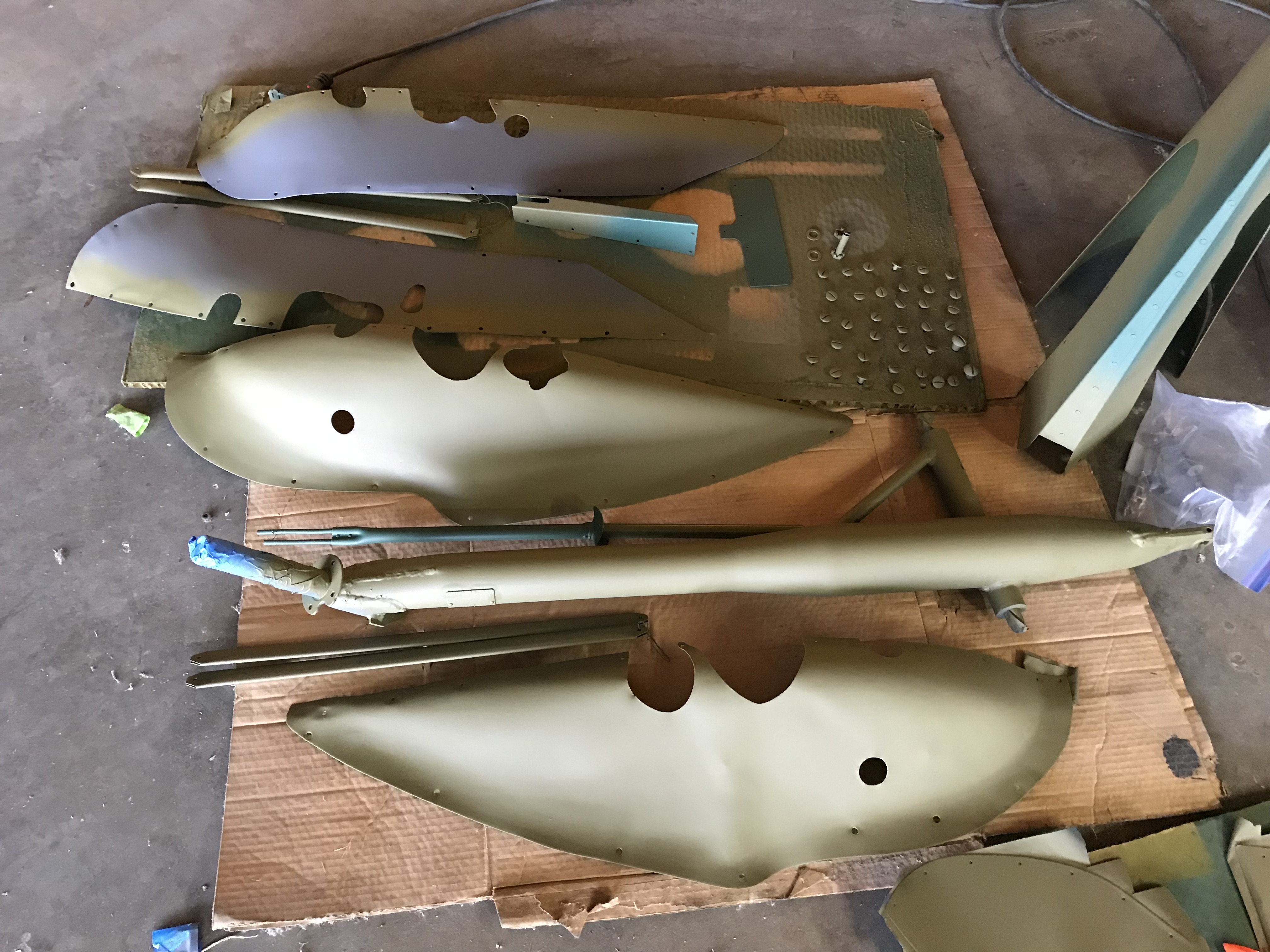

Metal parts primed. Each part had to be evaluated to determine what color or colors to be painted and what areas to leave in primer color
And more parts this was a very time consuming process

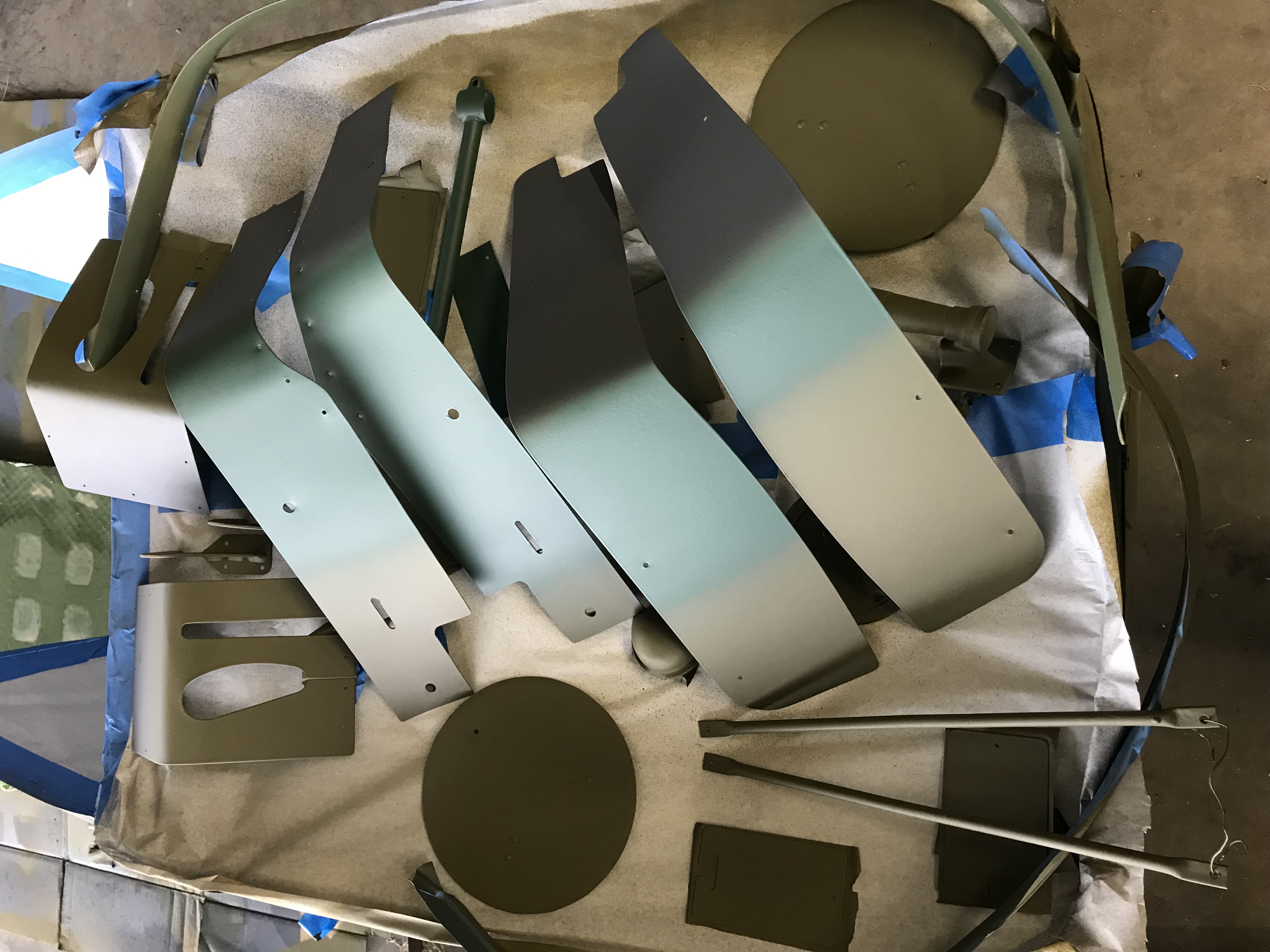

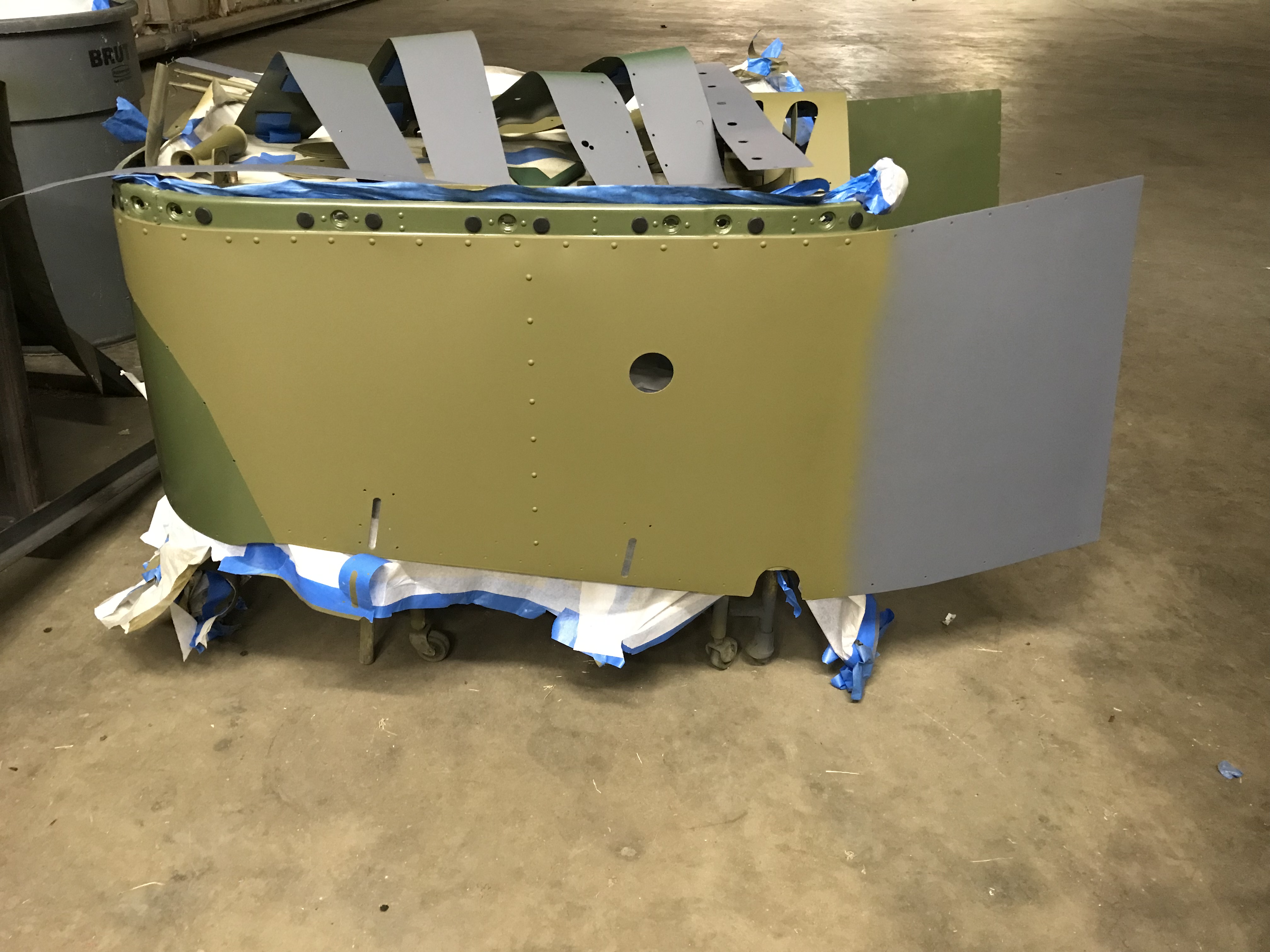

Note that the fairings required three different colors to finish them

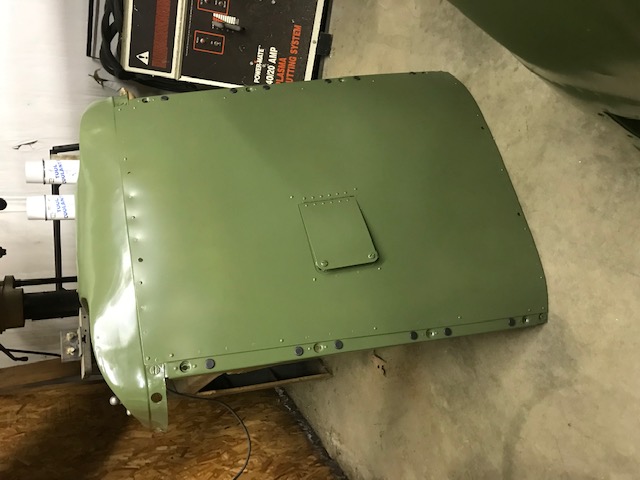

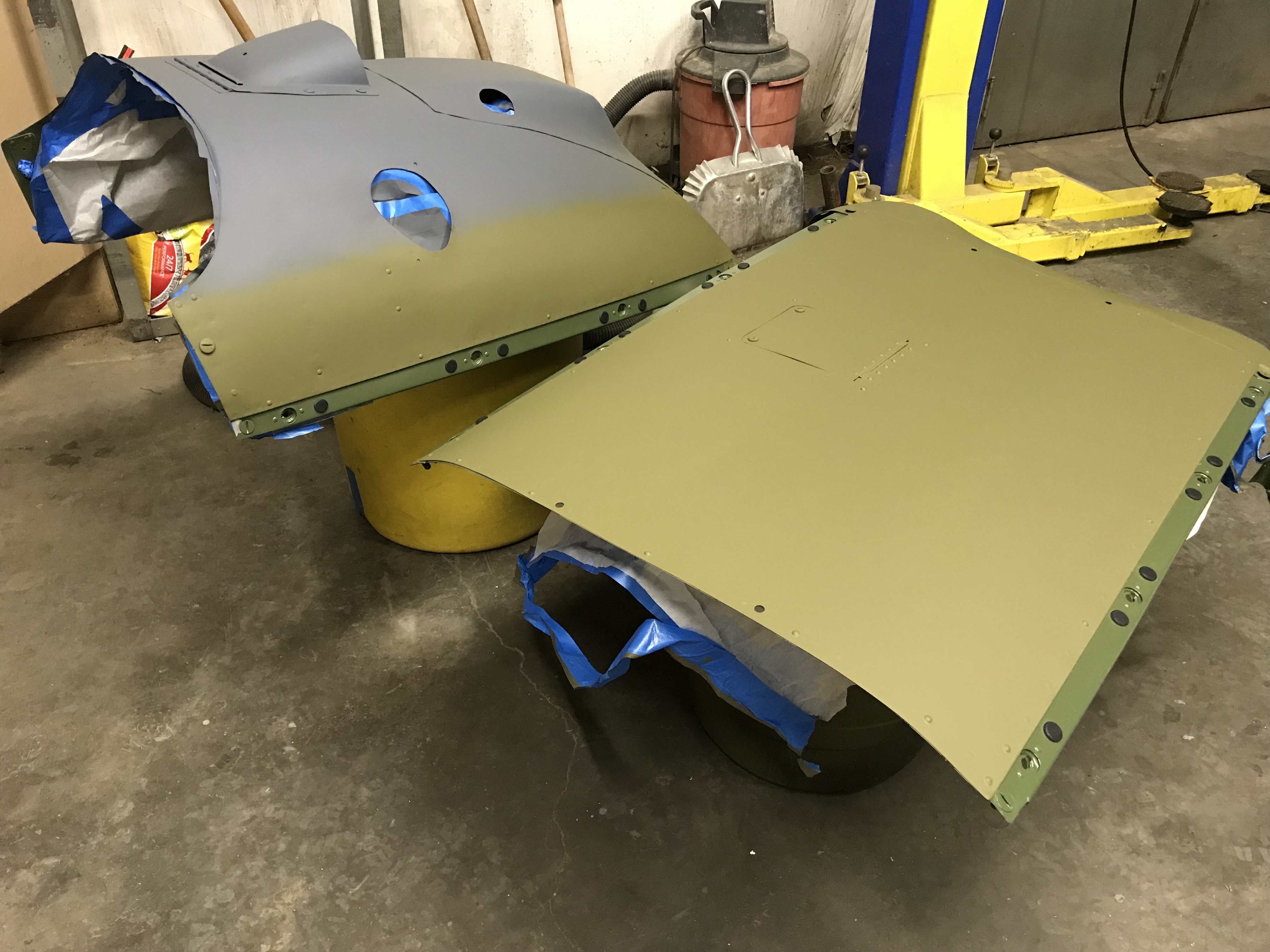

Top and bottom cowlings
Boot cowl
Original data plate
DATE: 23 NOV 2021 – 12 FEB 2022
- (A) Electrical – Installed wiring IAW Stinson Factory Drawings 76- Series, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 and AC 43.13-1B Chapter 11
- (A) Electrical – Installed Field Approved Zeftronics Generator Controller, G115P, 14V, 15A, Type B (Pwr to Field) IAW Instructions for Continued Airworthiness of Zeftronics Solid State Generator Regulator Installation Dtd 08 Feb 2022 and conforming with AC 43.13-1B Chapter 11, Section 1, 3, and 8
- (A) Electrical – Installed Master Control Panel IAW Stinson Factory Drawings 76- Series, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 AC 43.13-1B Chapter 11
- (A) Electrical – Installed Battery Box IAW Stinson Factory Drawings 76- Series, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 AC 43.13-1B Chapter 11
- (A) Brakes – Installed reservoir, rebuilt master cylinders and new hydraulic lines IAW Stinson Factory Drawings 76- Series, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 AC 43.13-1B Chapter 9 Section 2
- (A) Cowling – Installed Boot Cowl IAW Stinson Factory Drawings 76- Series and T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956

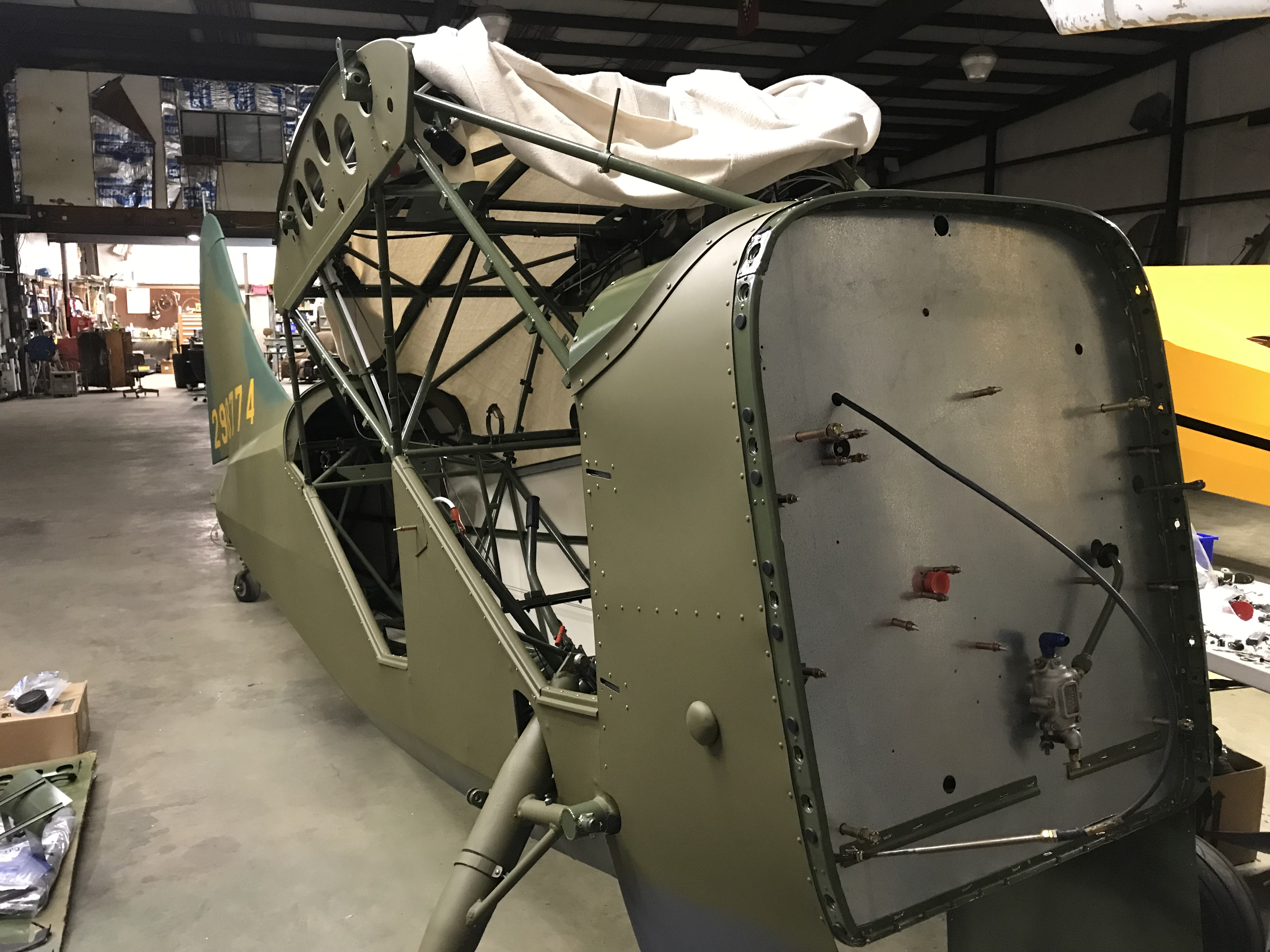

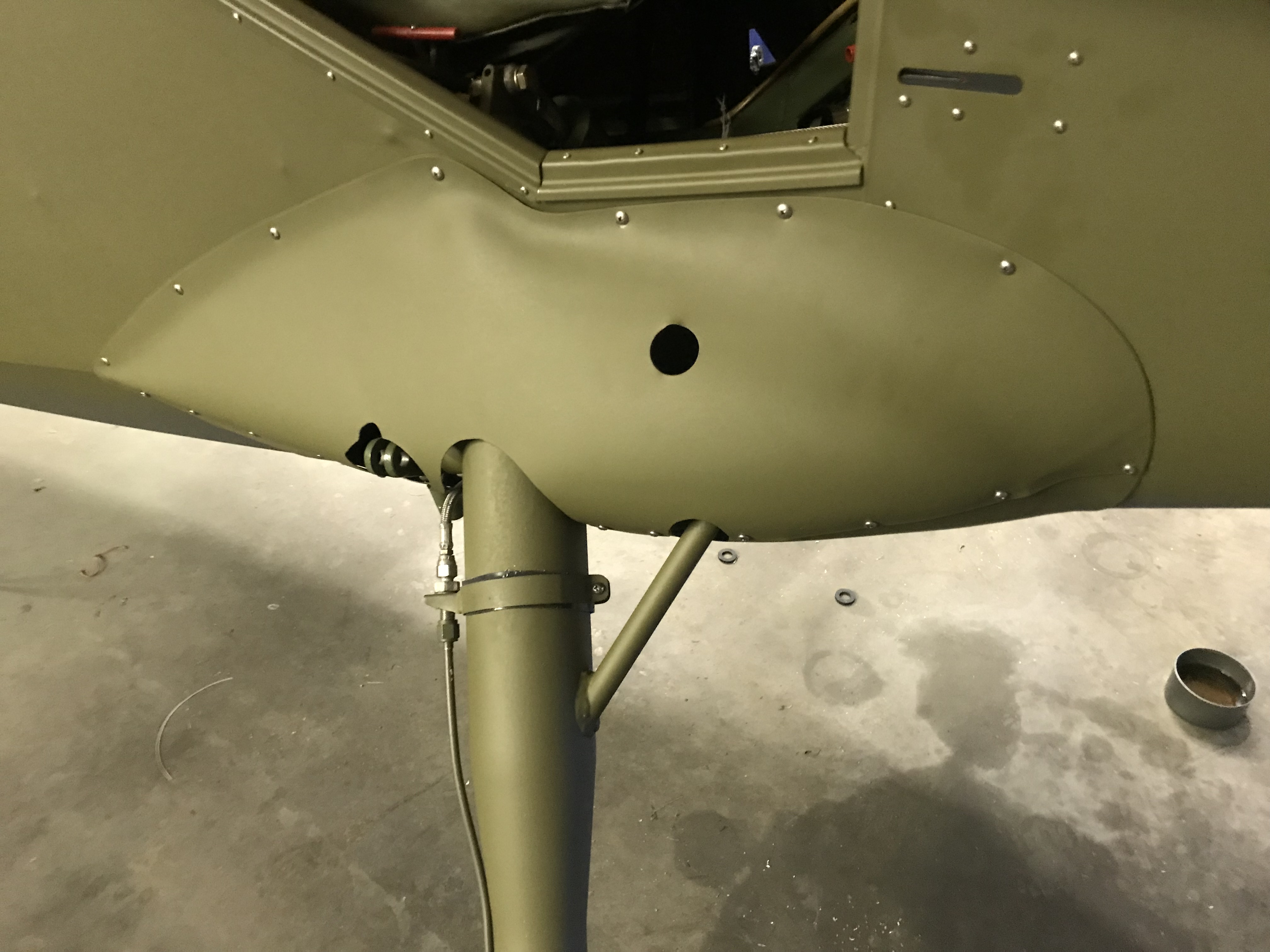

Boot cowl installed
Original data plate restored

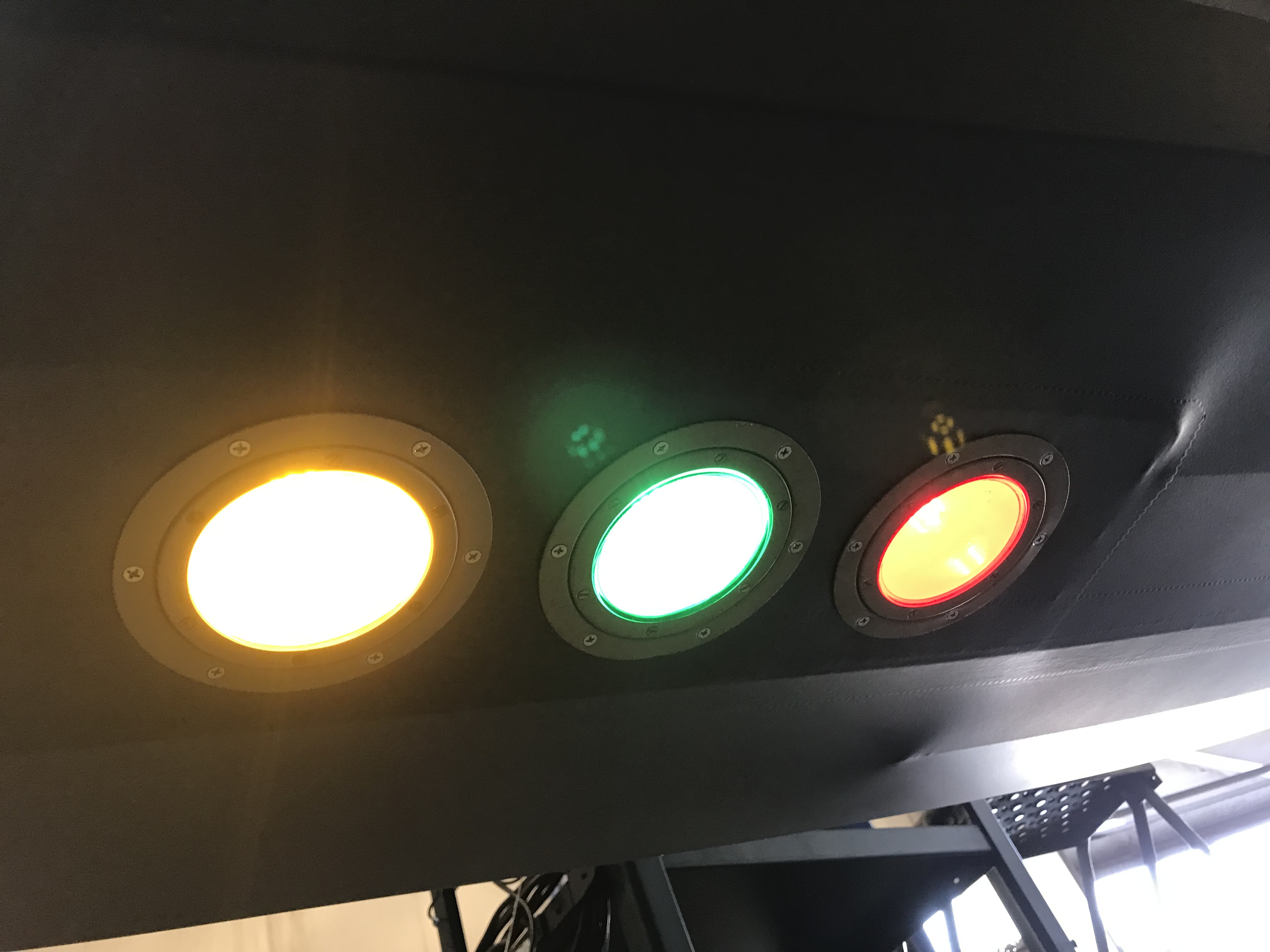

Testing the recognition lights (Red, Green, Amber) these would be used so ground forces could identify friendly aircraft at night. They are also connected to a morse code key so that messages could be tapped out.
DATE: 16 JAN – 08 FEB 2022
- (E) Engine – Installed O-435-1 SN: L-000911-8 IAW Stinson Factory Drawings 76- Series, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 AC 43.13-1B Chapter 8
- (E) Oil - Removed, inspected oil screen and re-installed IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 and Lycoming Service Manual
- (E) Oil - Installed oil filter IAW Airwolf AFC-K007 IAW STC# SA00024NY
- (E) Oil Cooler – Installed IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 and AC 43.13-1B Chapter 8
- (E) Oil - Added 12 quarts of Aeroshell 100 mineral oil IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 and Lycoming Service Manual
- (E) Carburetor – Installed IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956, T.O. 01-50DB-13 – Modification of Carburetor Hot-Air Intake System for L-5 26 Mar 1944, T.O. 01-50DB-17 – Replacement of Muff to Carburetor Tube Assembly for L-5 14 Aug 1944 and AC 43.13-1B Chapter 8
- (E) Air Box – Installed IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 and AC 43.13-1B Chapter 8

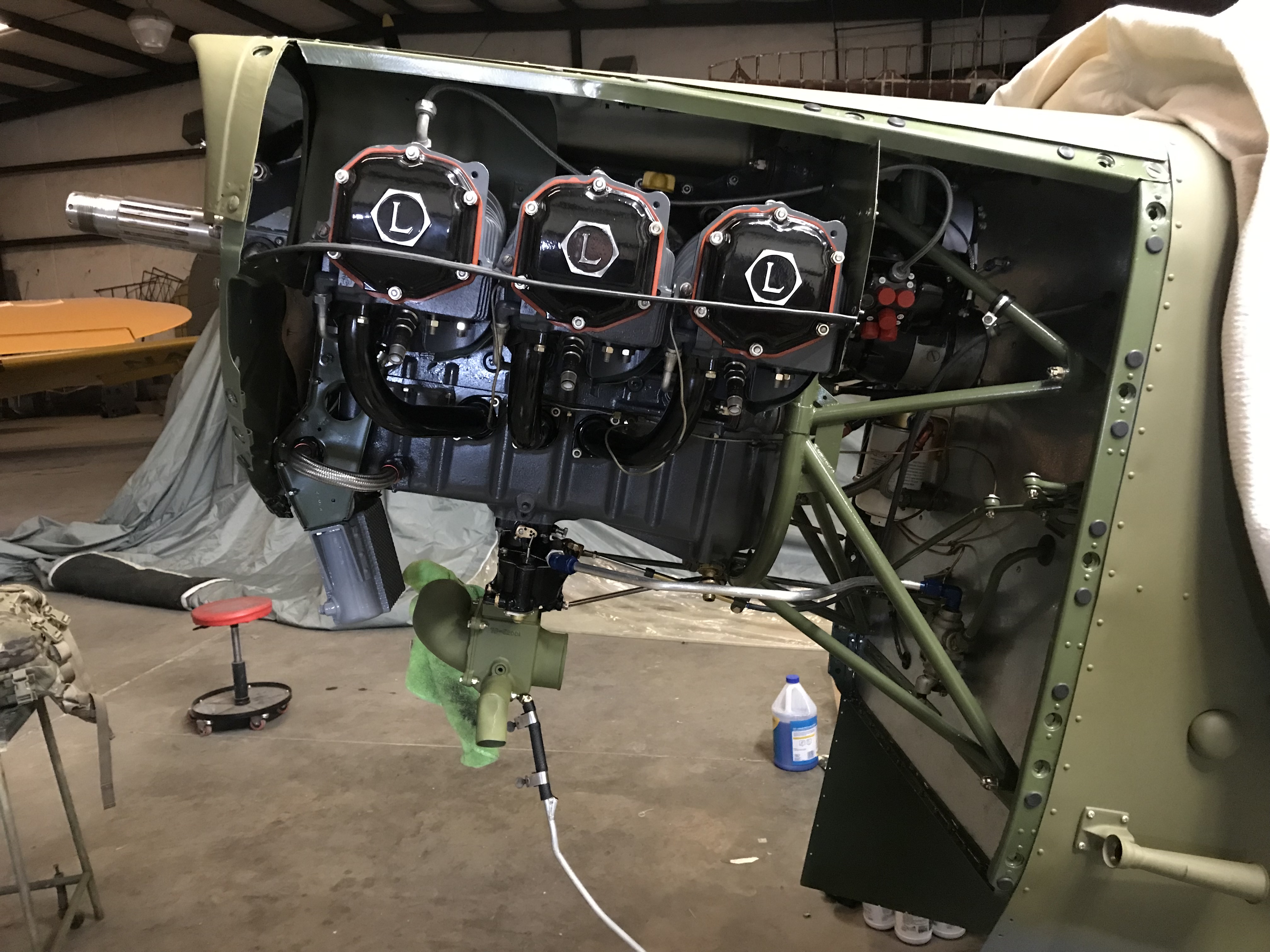

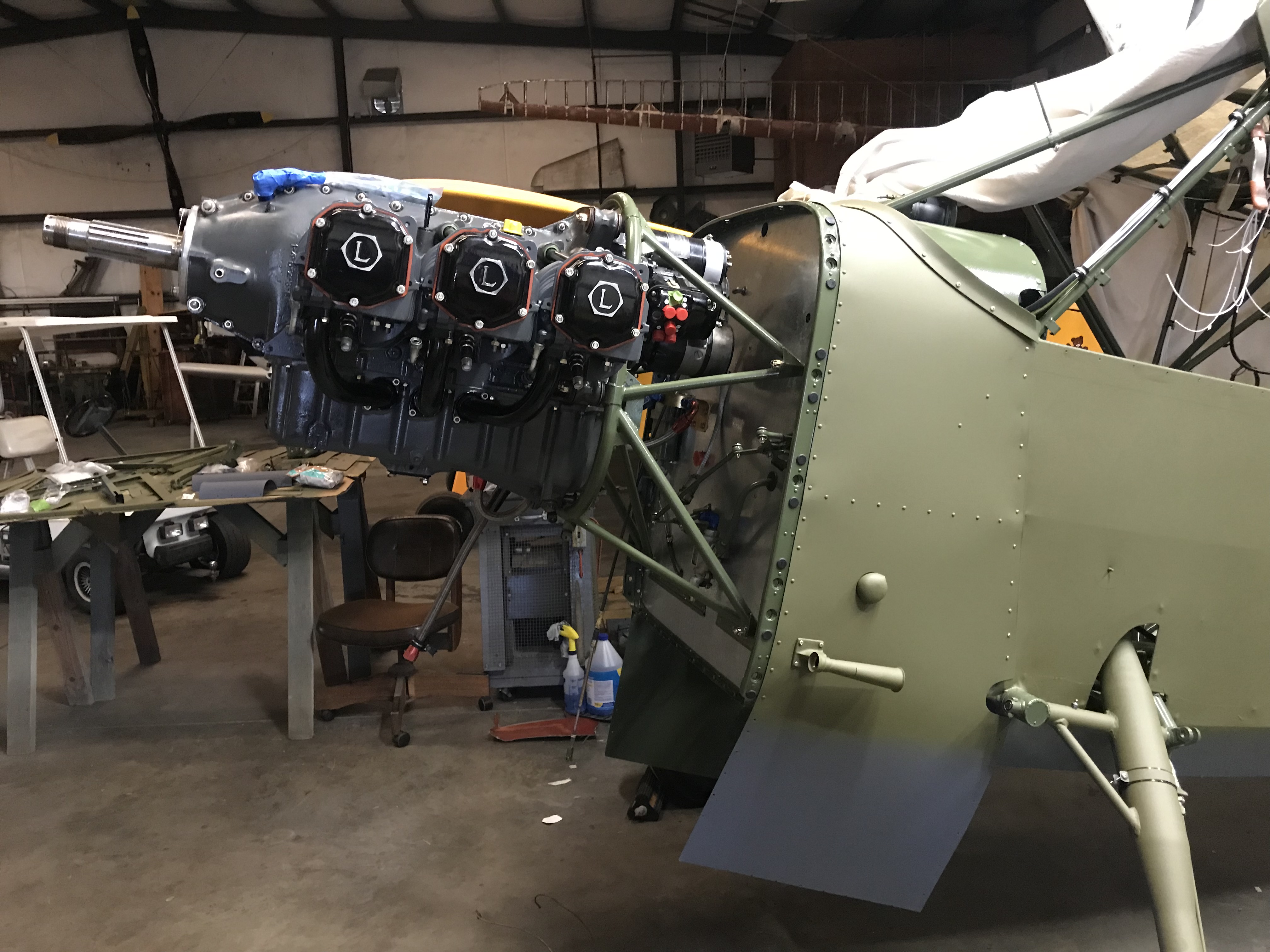

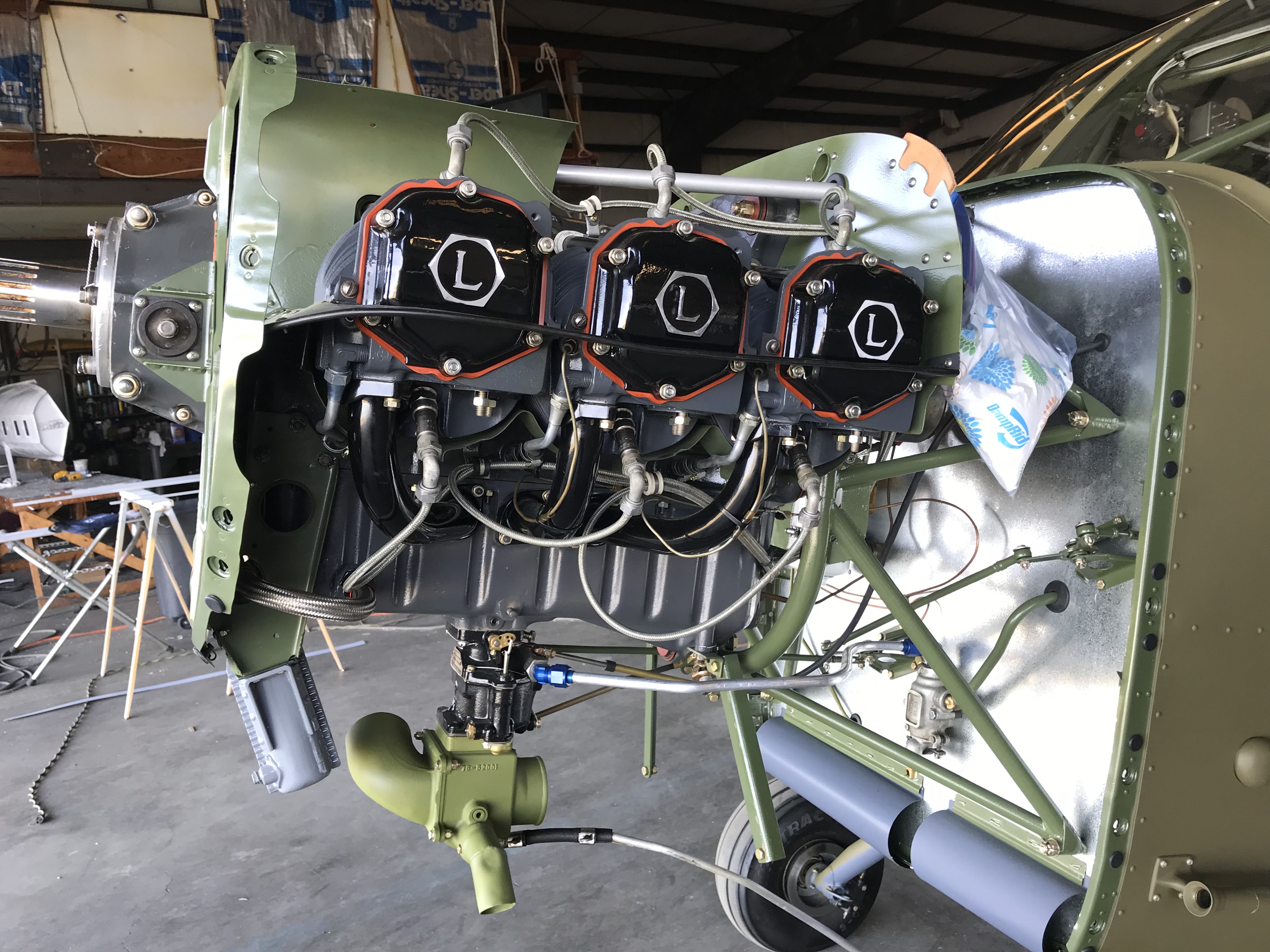

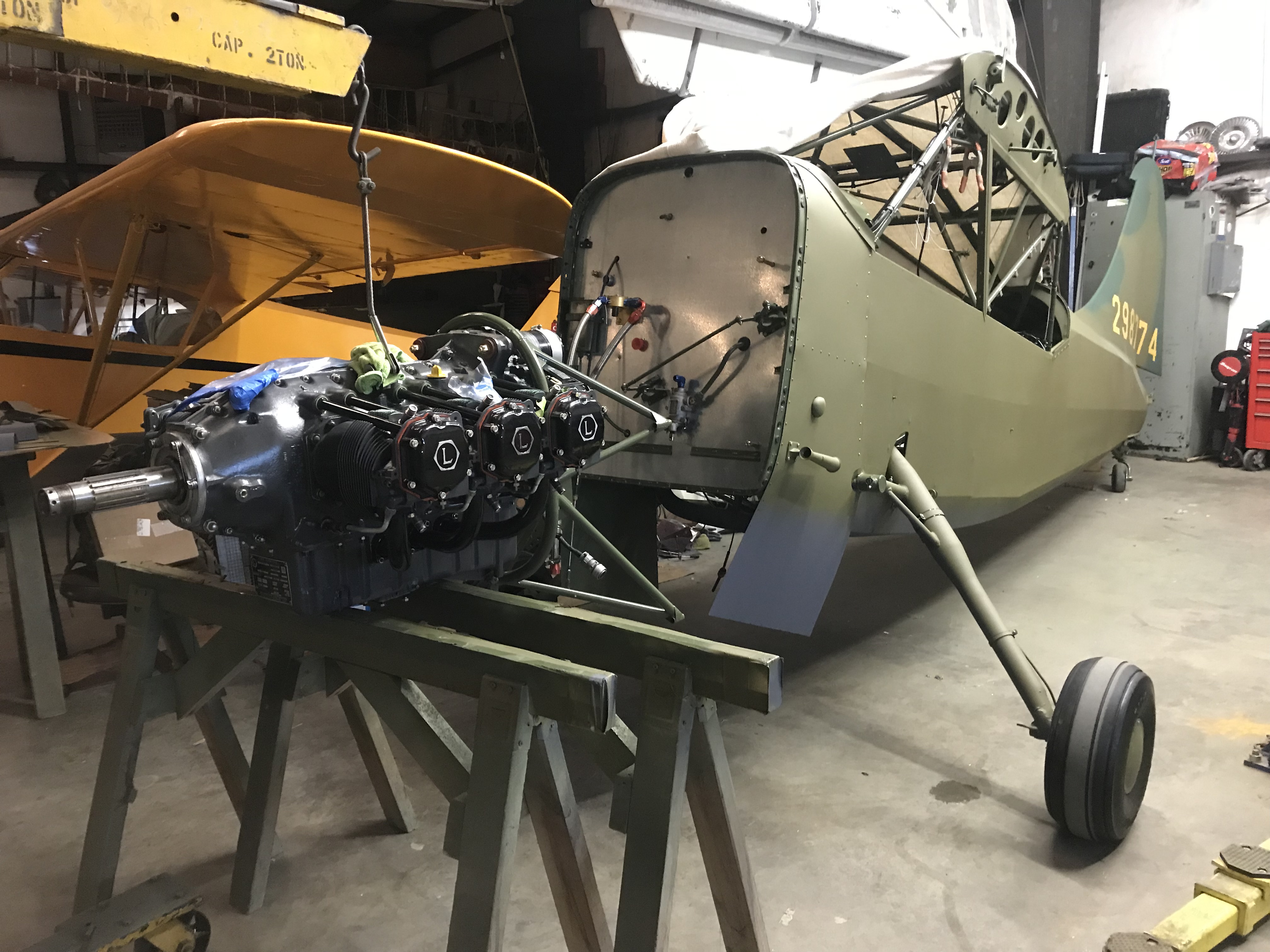

Ready to hang the engine

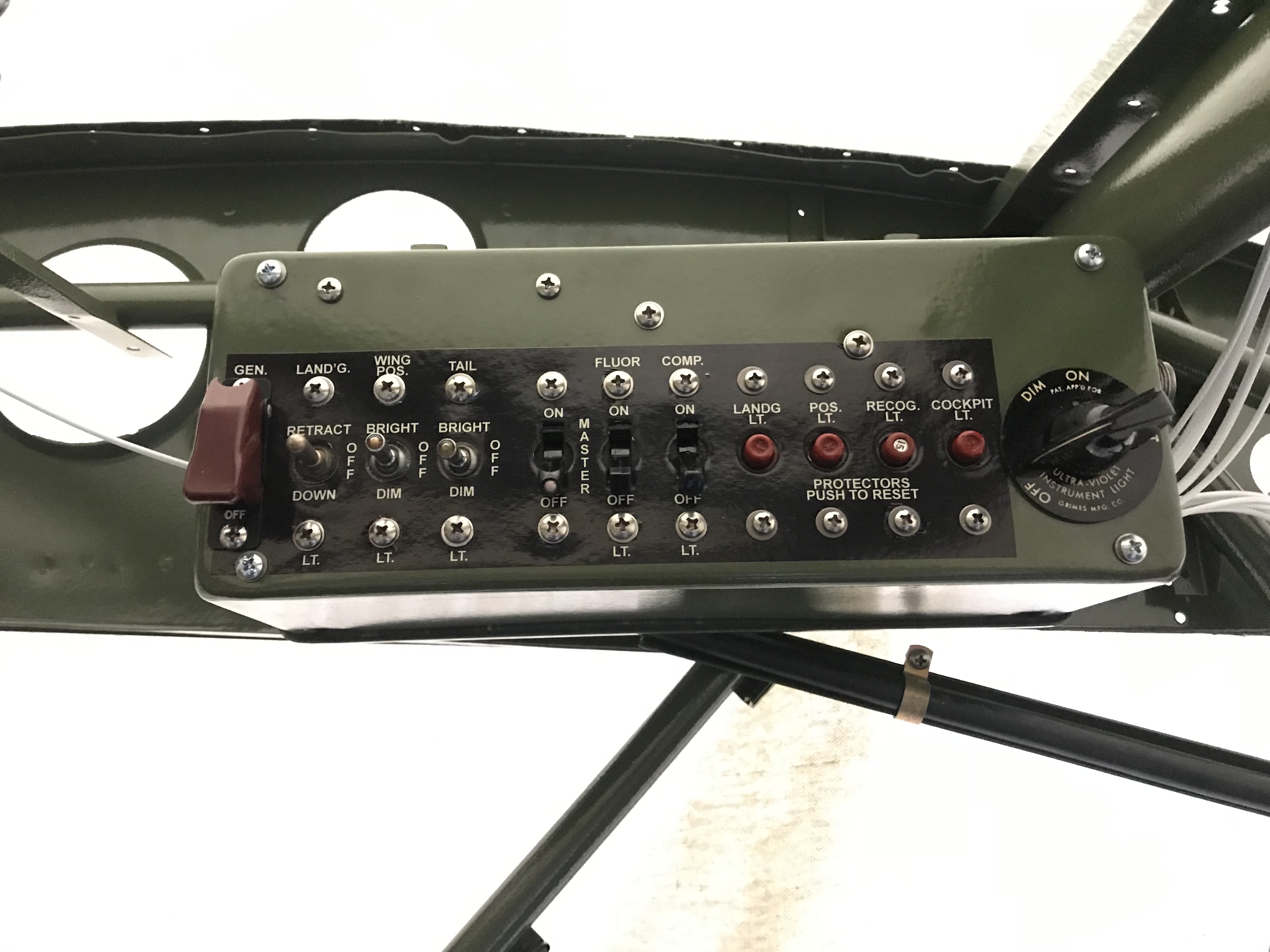

Master Control Panel installed

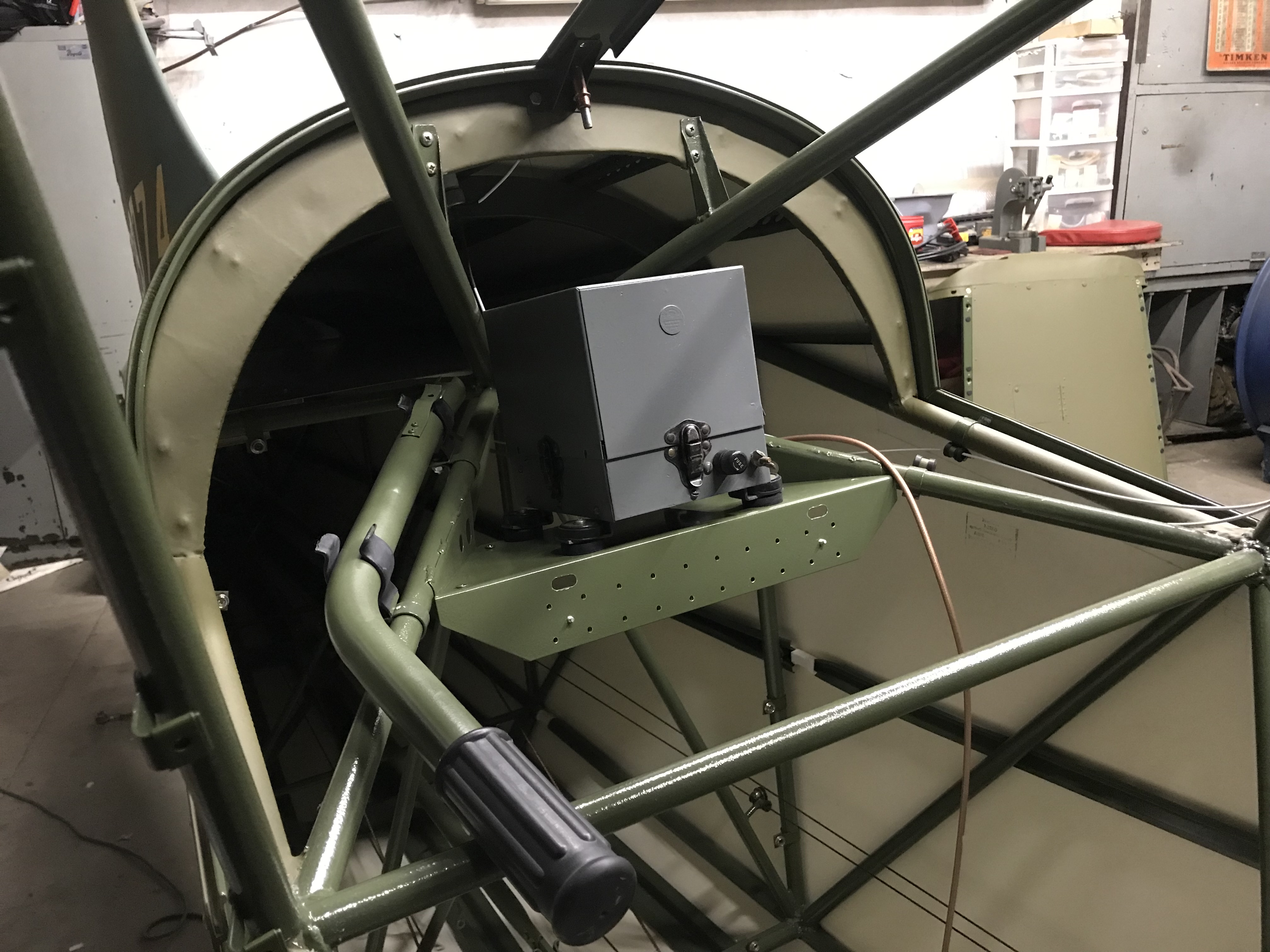

AVT-112 Transmitter installed
AVA-126 Power Supply installed

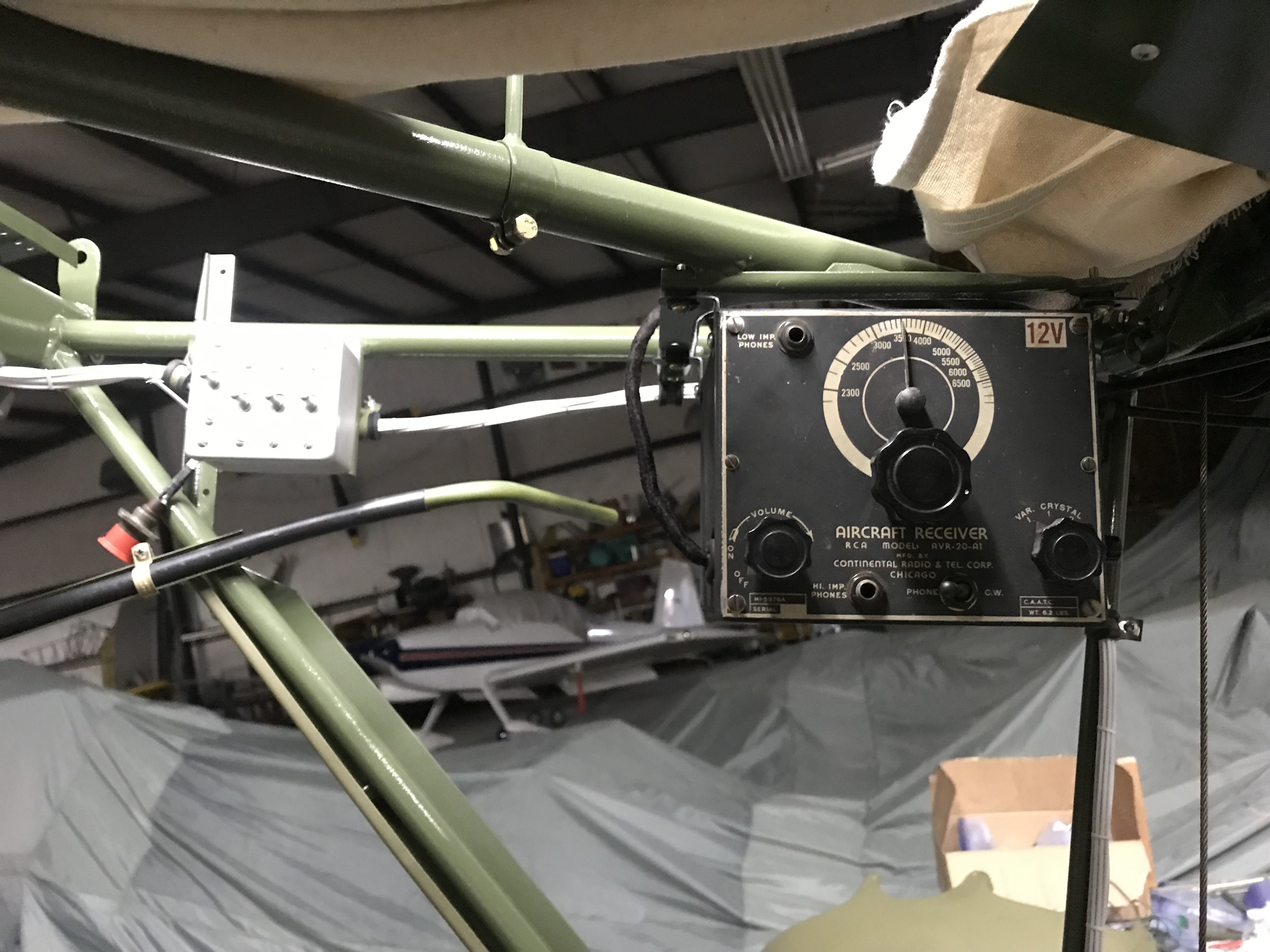

AVR-20A Receiver installed. Also installed is the silver control box for the recognition lights
DATE 24 JAN – 14 APR 2022
- (A) Windows – Installed plexiglass IAW Stinson Factory Drawings 76- Series, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 and AC 43.13-1B Chapter 3 Section 4

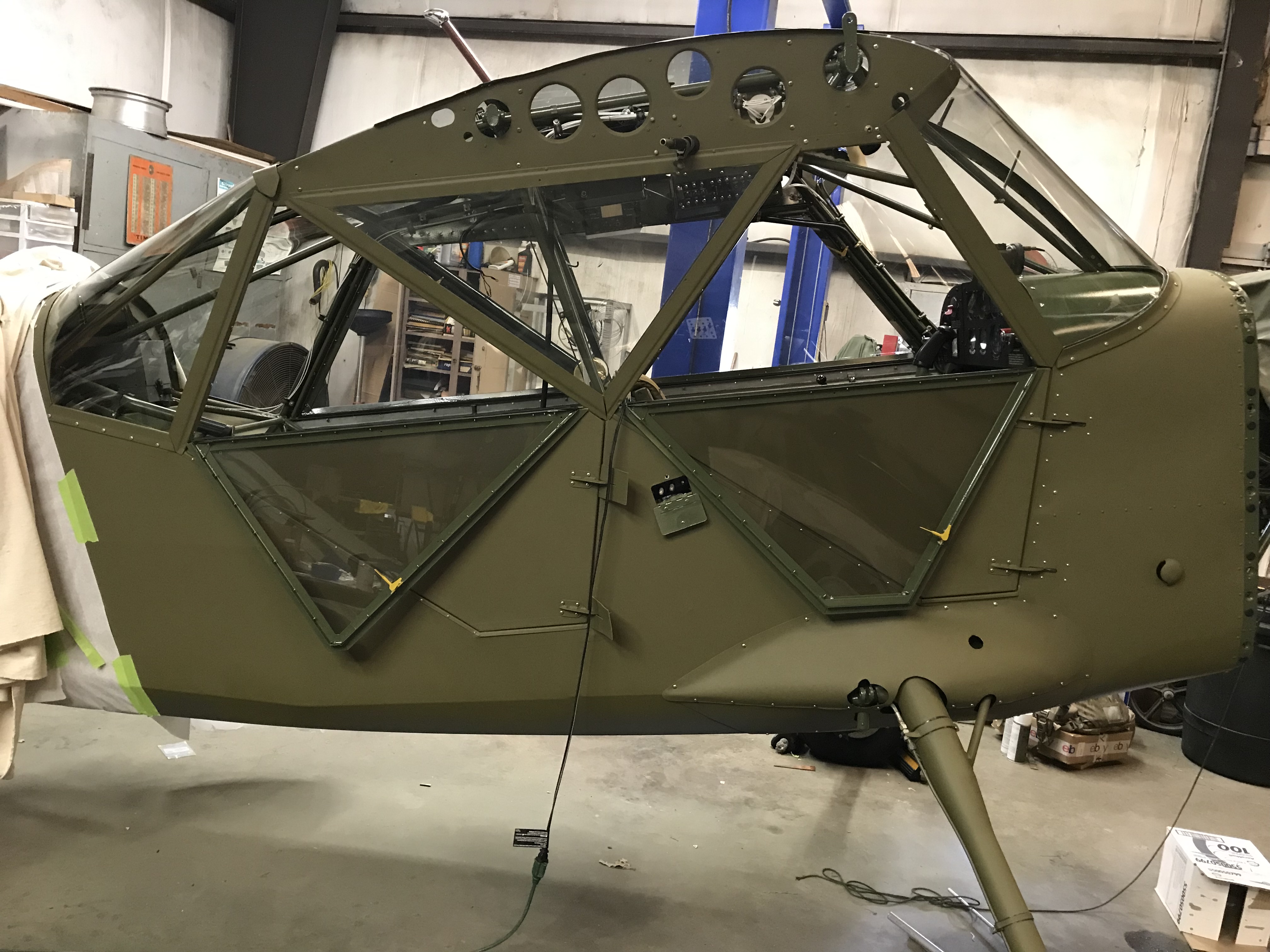

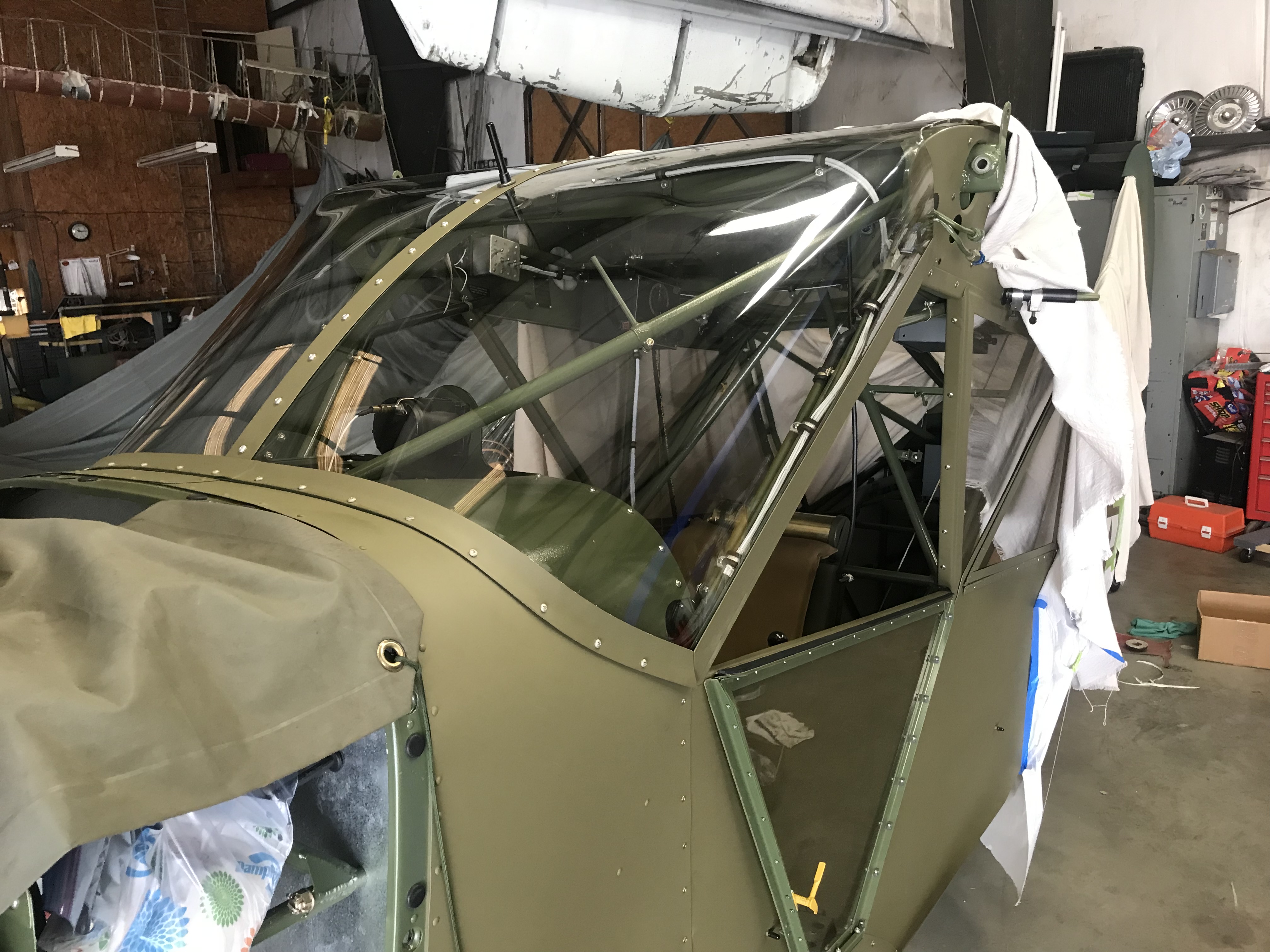

Installation of plexiglass
DATE: 28 MAR 2022 – 16 APR 2022
- (A) Markings – Drew, Taped, Prepped and Painted Insignias IAW Stinson Factory Drawings 76- Series

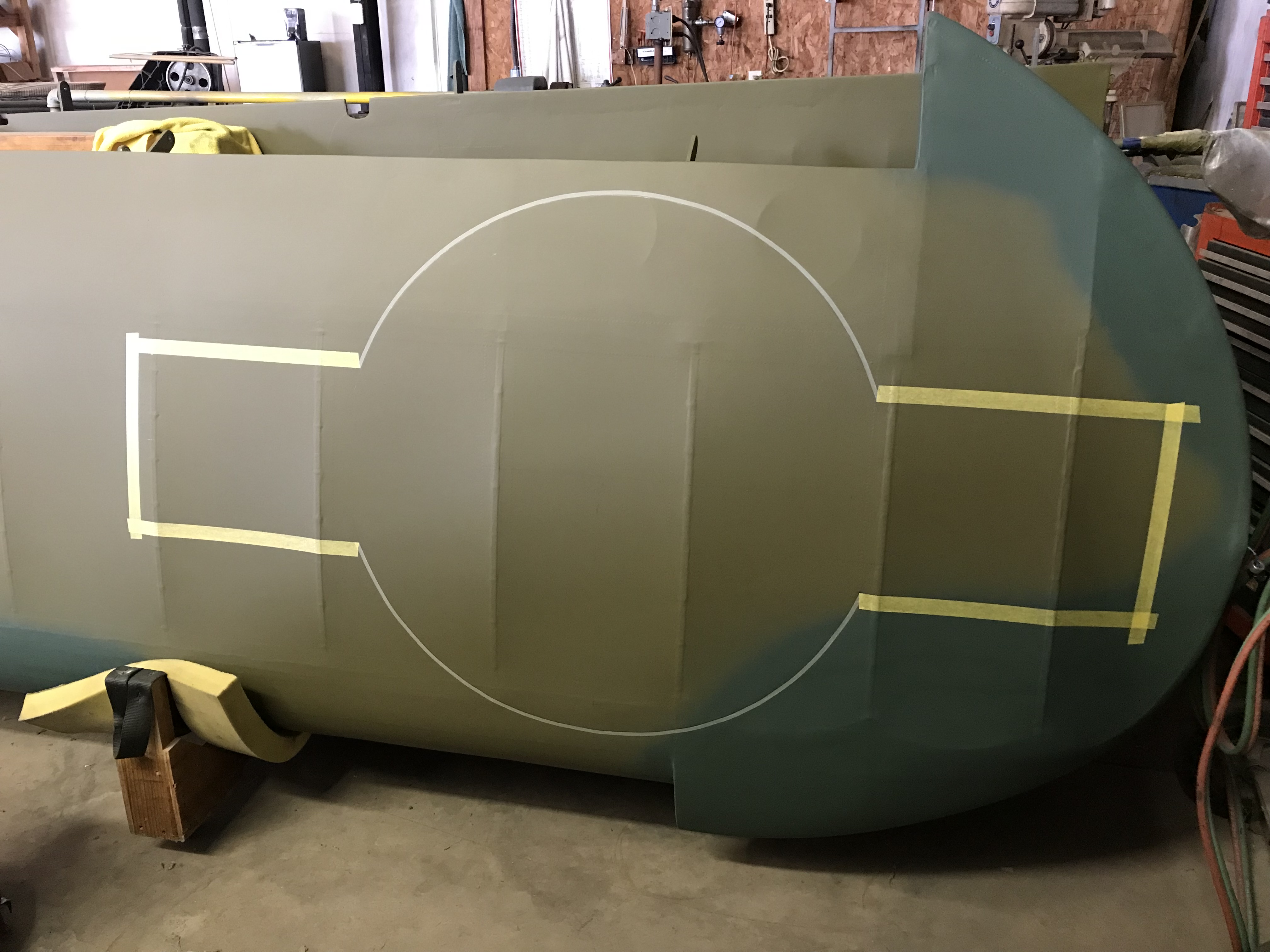

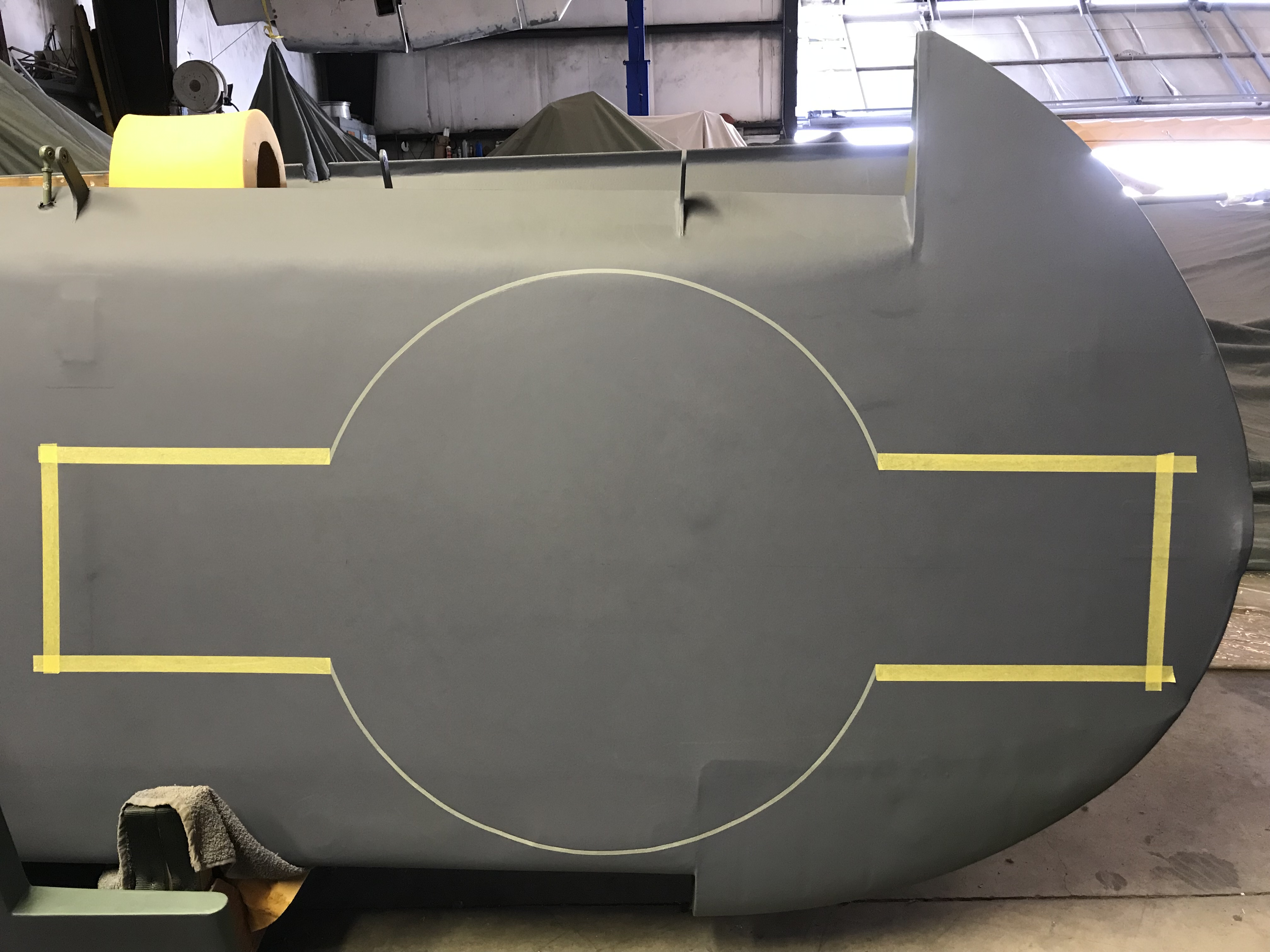

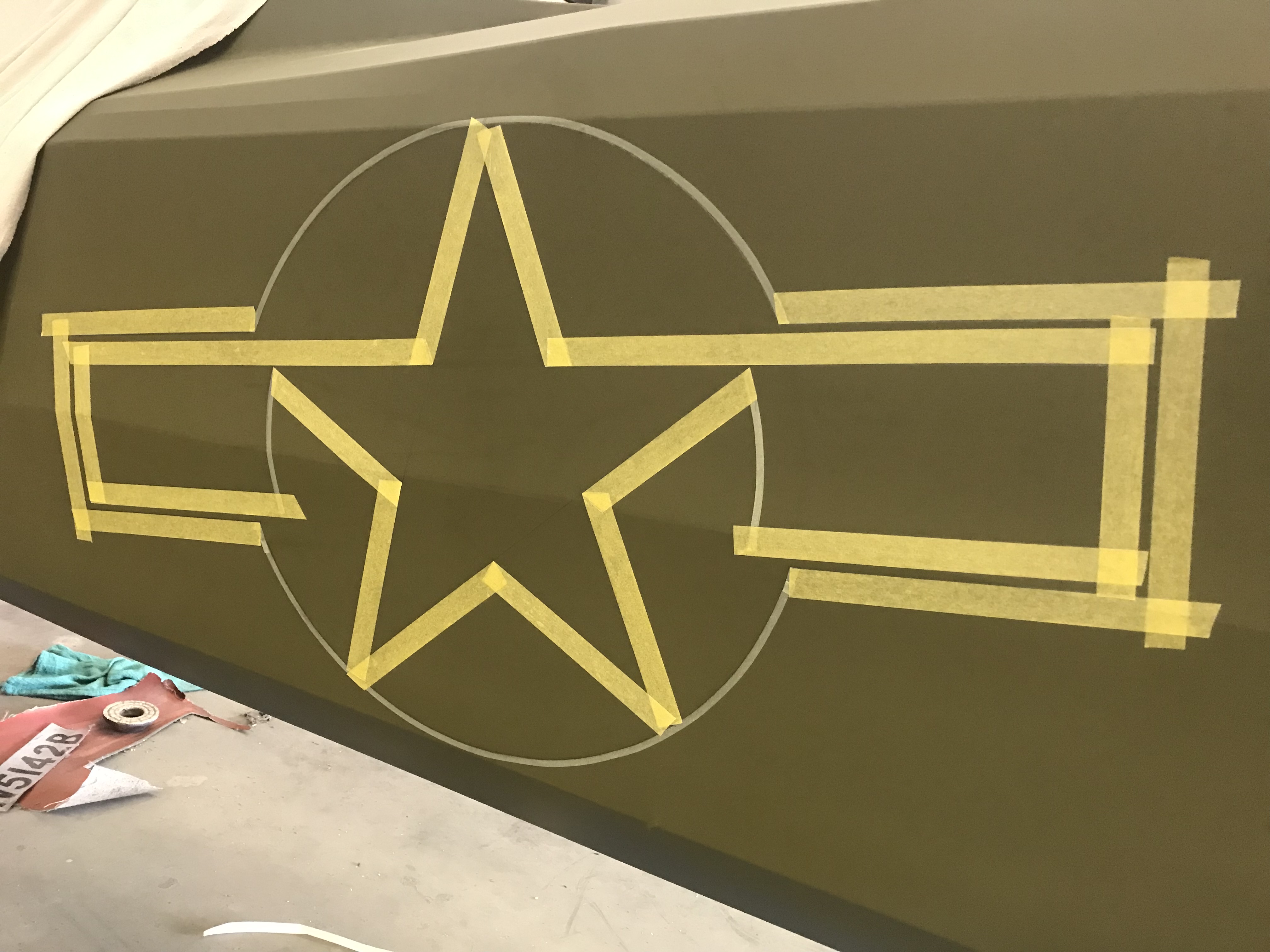

Beginning to tape out the National Insignias on fuselage

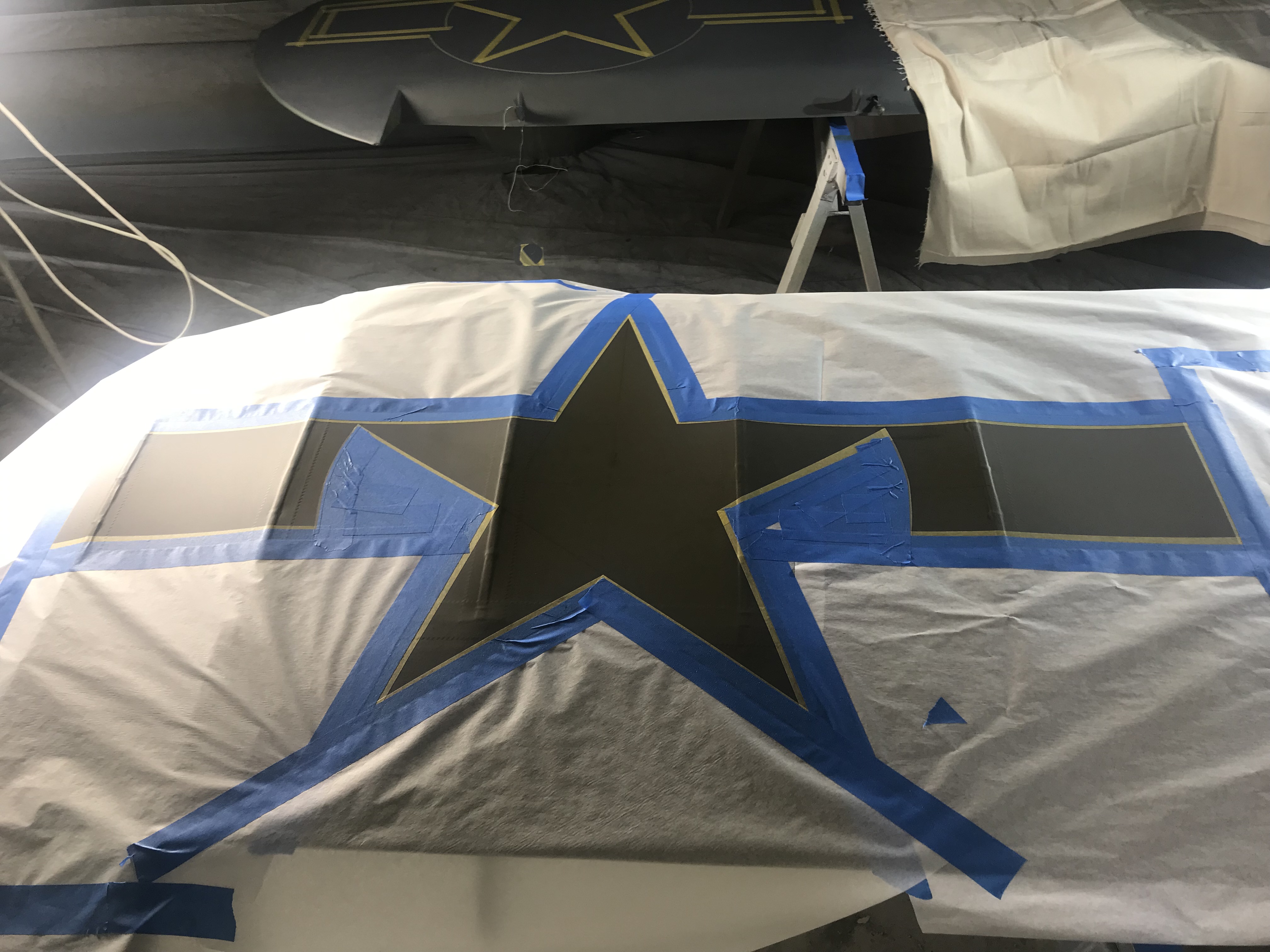

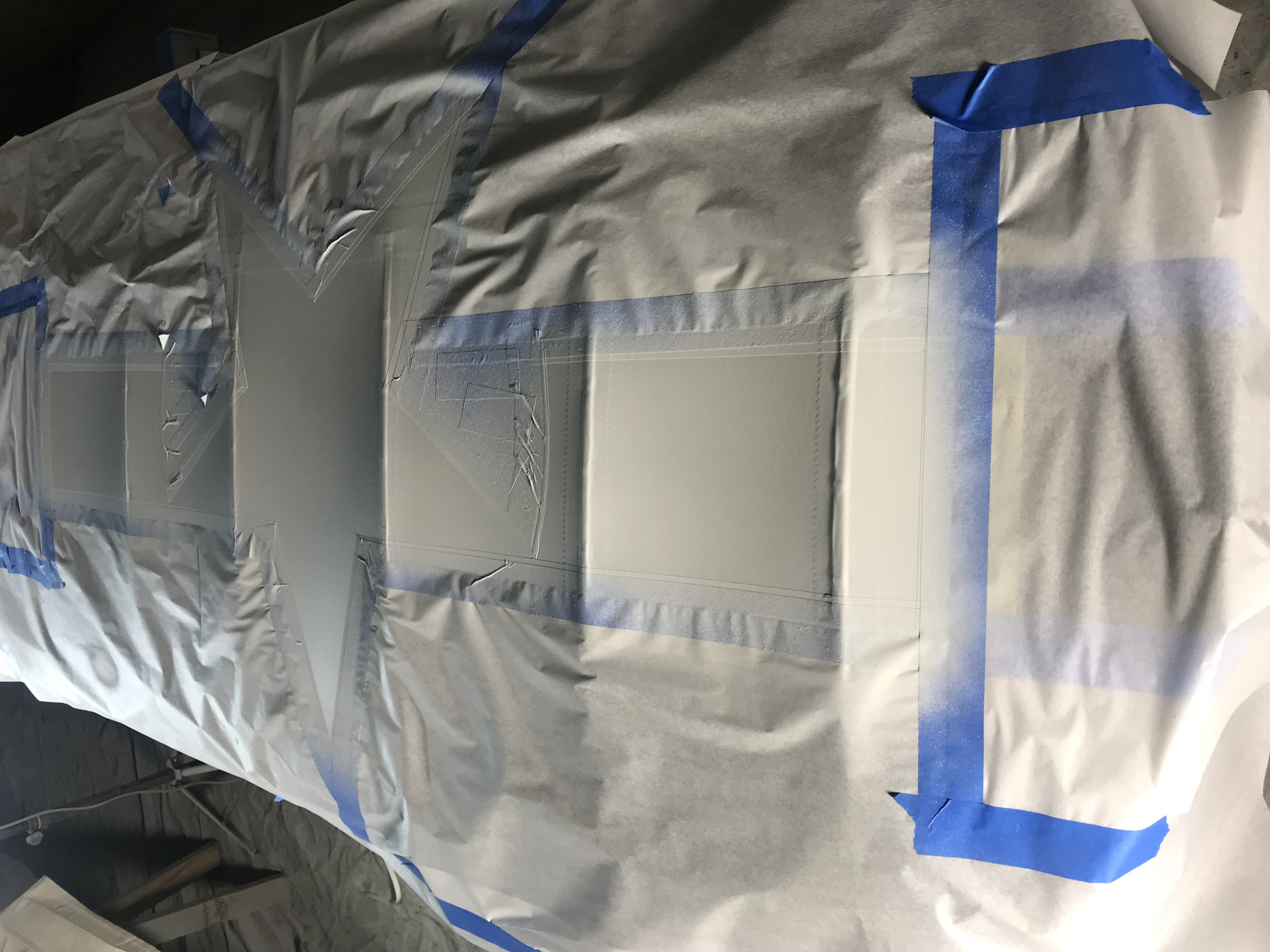

Beginning to tape out the National Insignias on wings
There are very specific sizes, dimensions and positioning to be used

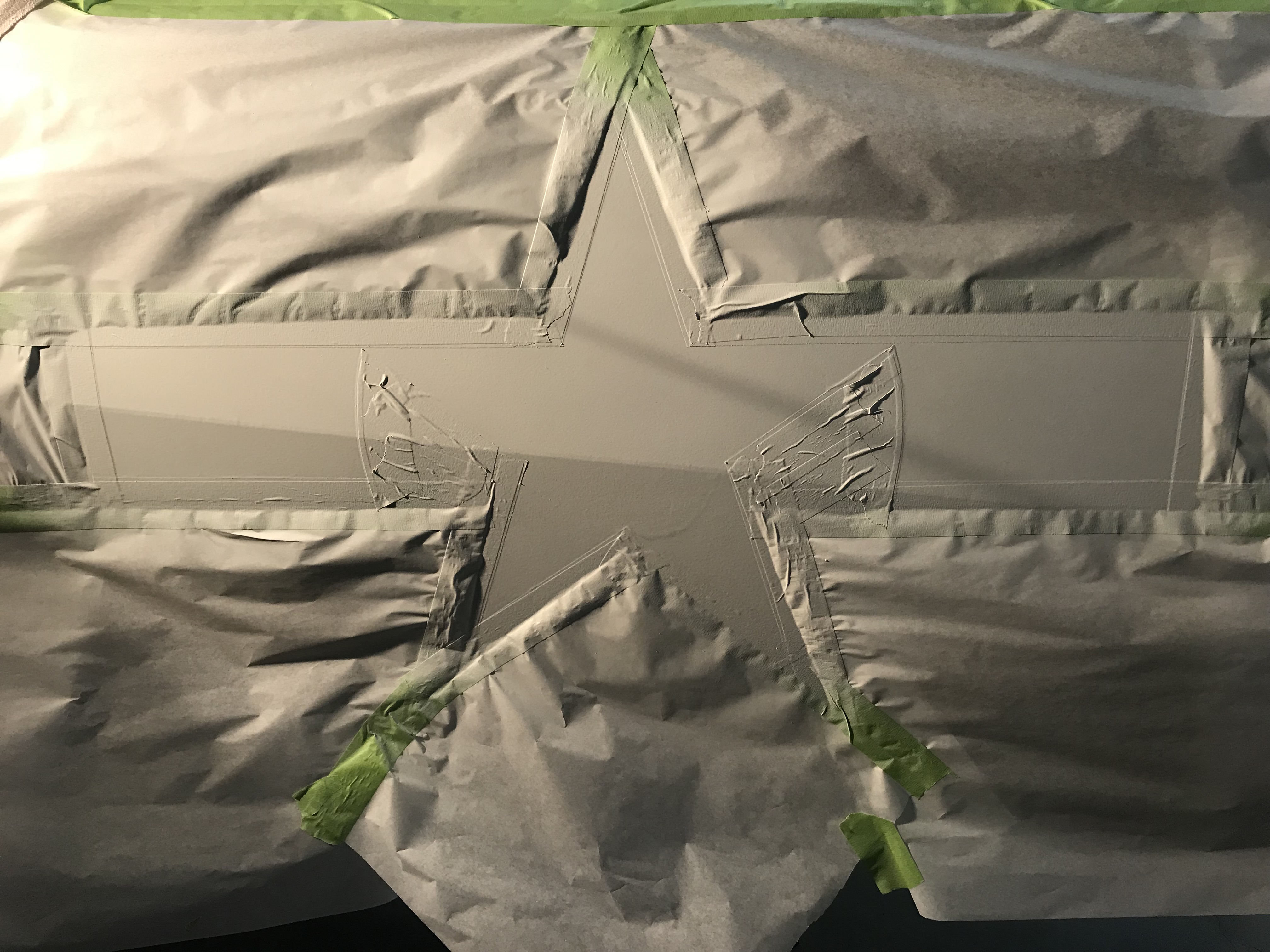

I found it best to have the overall outine taped out then have the white areas taped out. Paint the white areas first, remove the tapes around the white areas and once dry tape over the white areas to paint the blue areas.
While it is rewarding to get to this point, it took alot of work to get to here and alot of work to prep for blue.

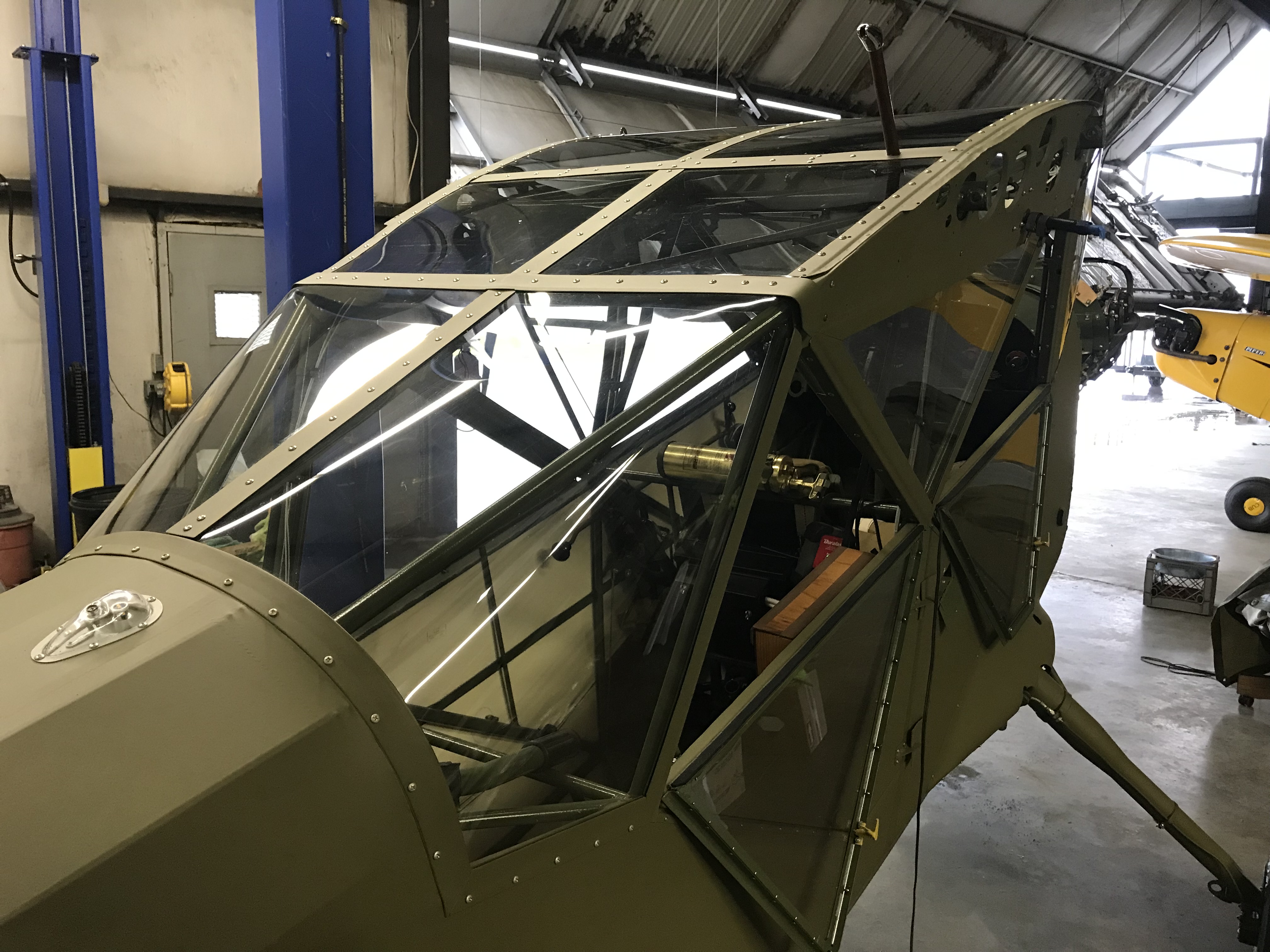

Installed front windshield while waiting for white paint to dry

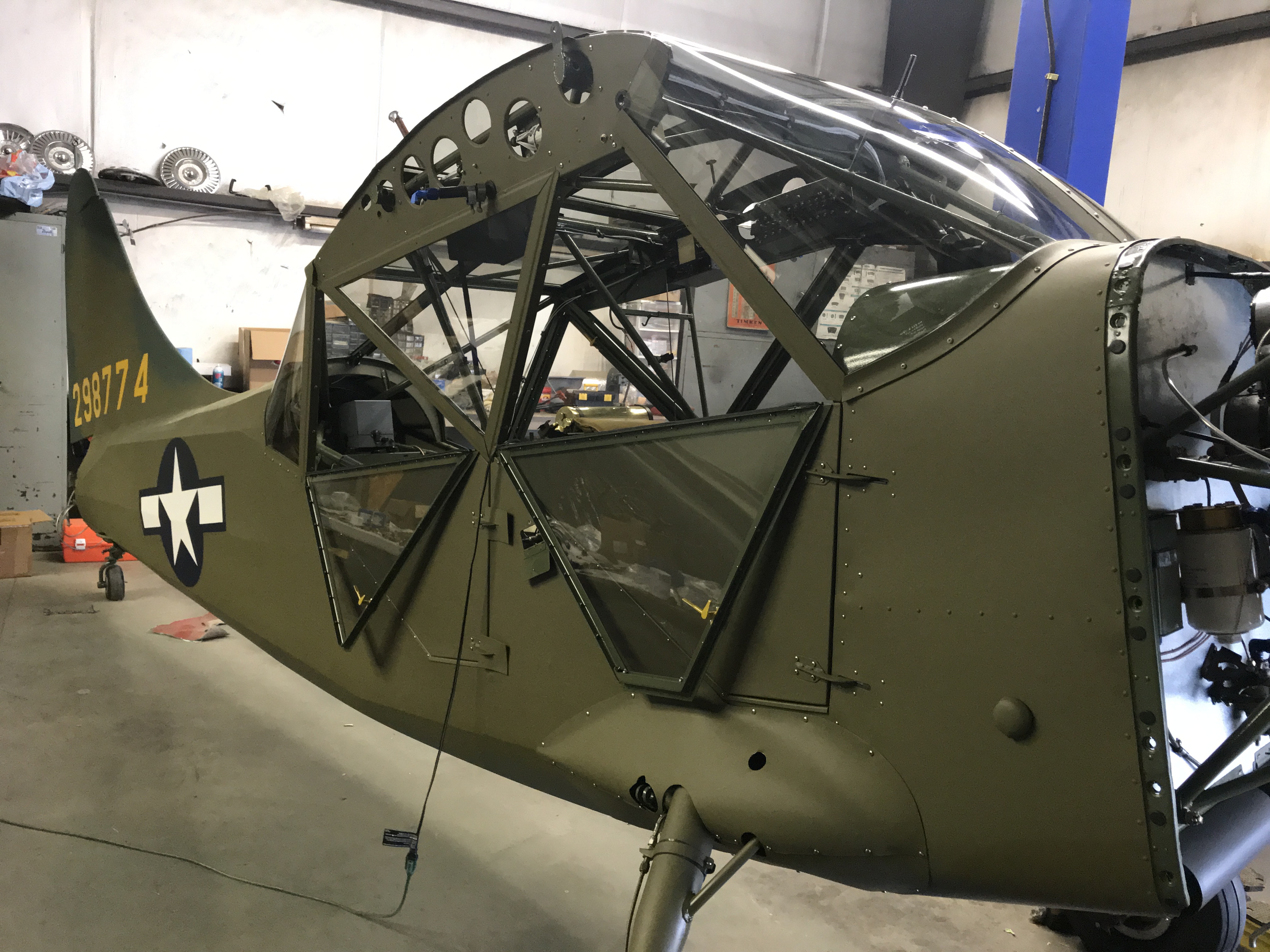

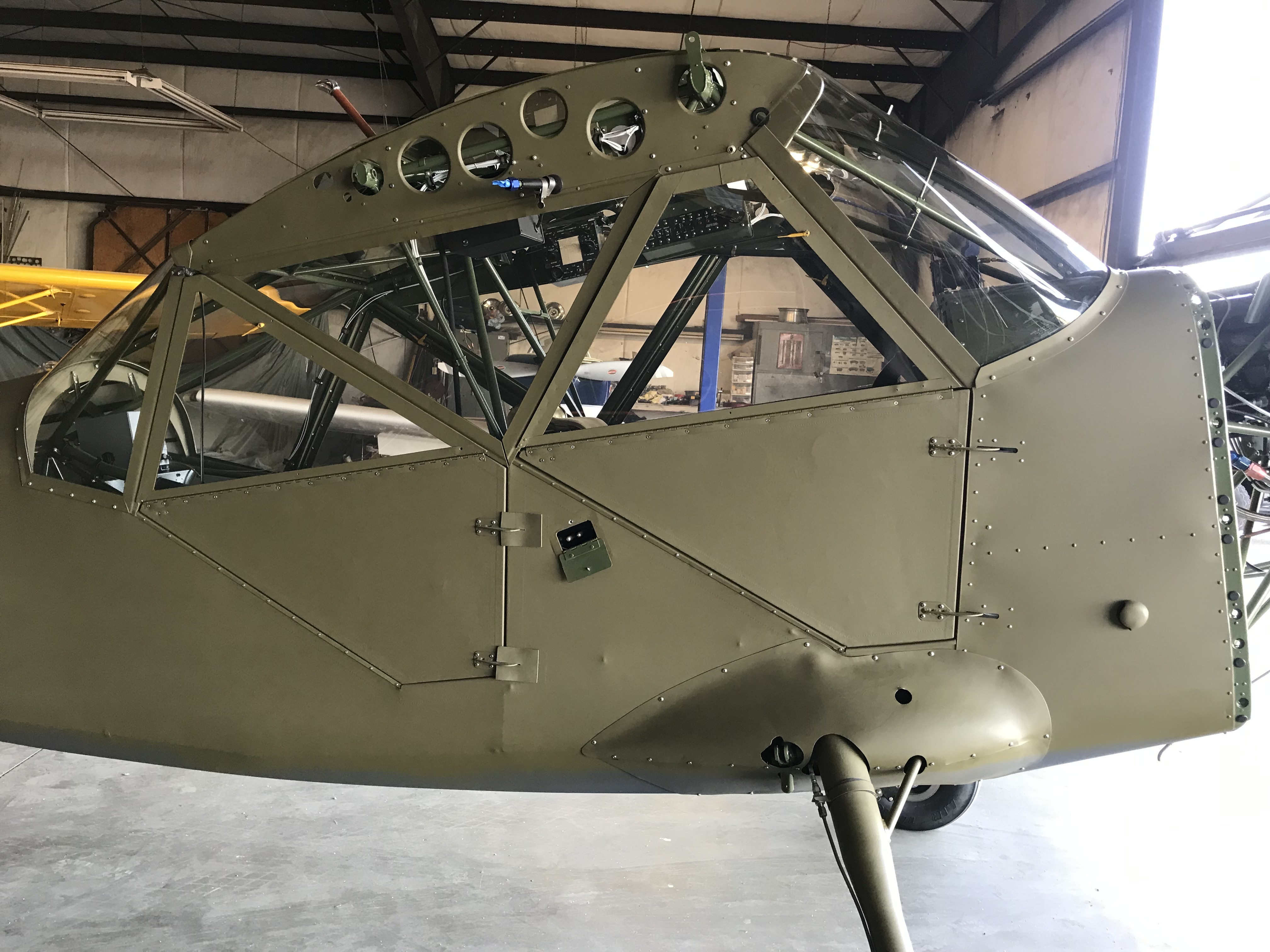

Also installed doors, windows and back glass

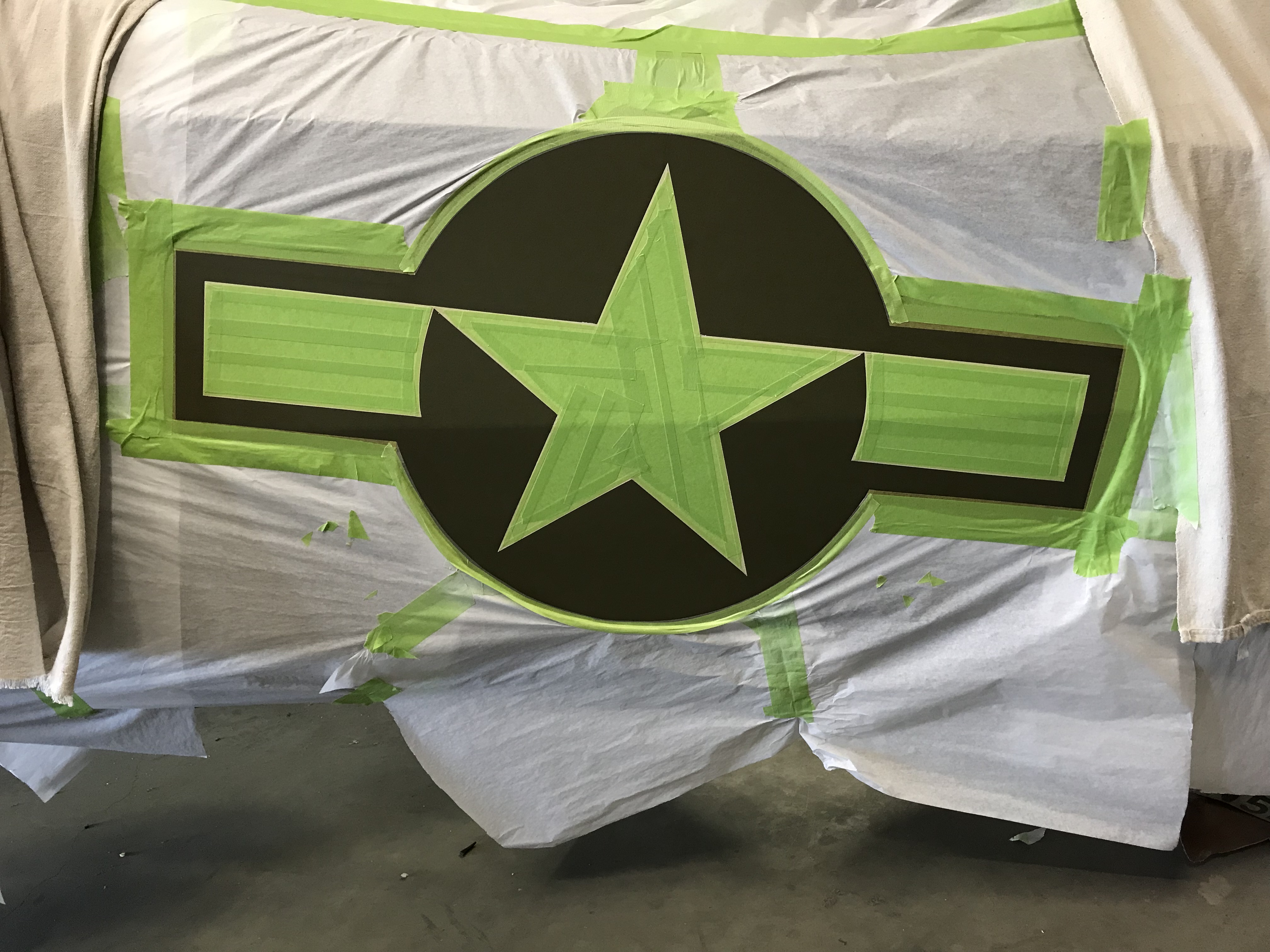

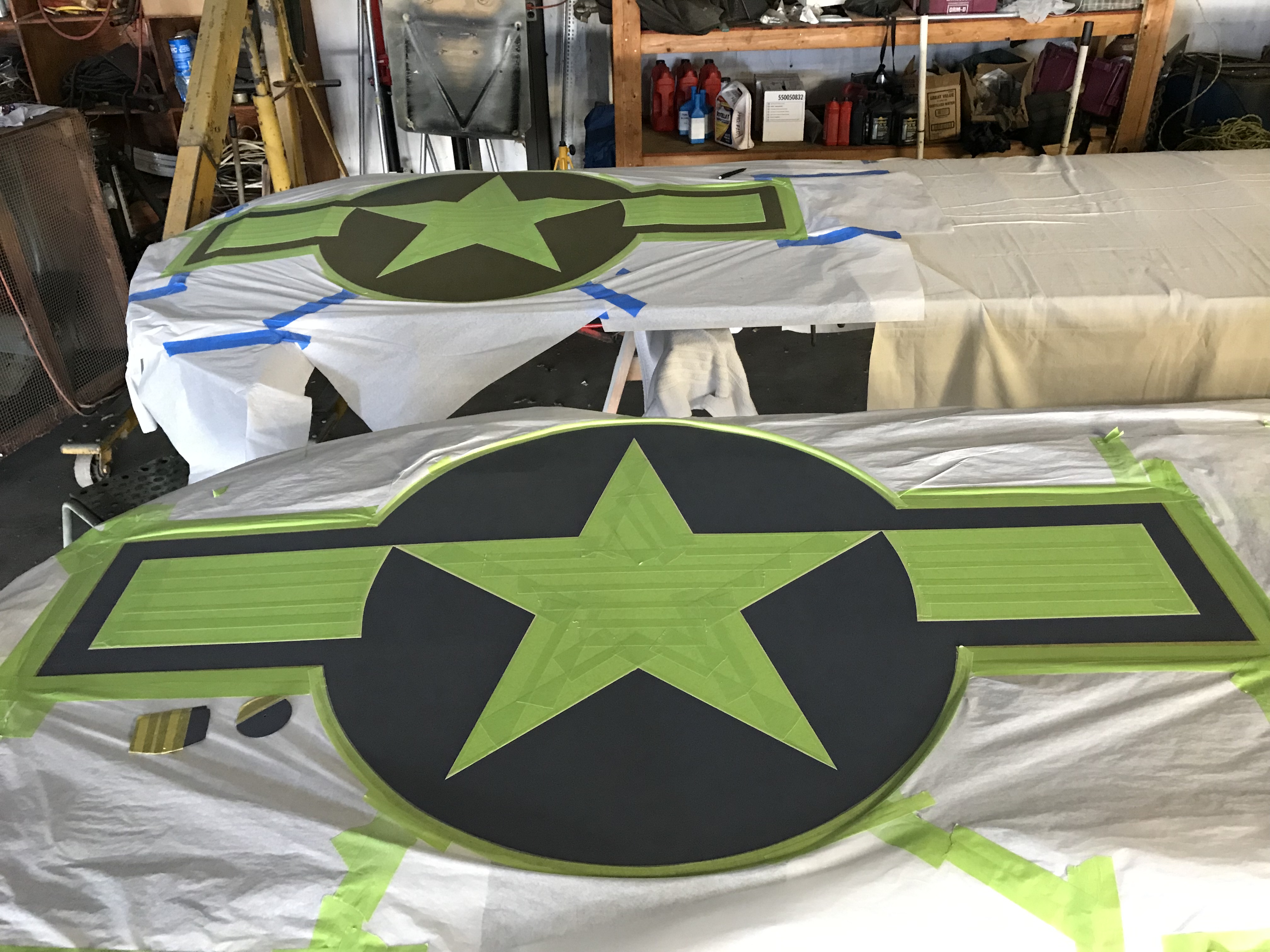

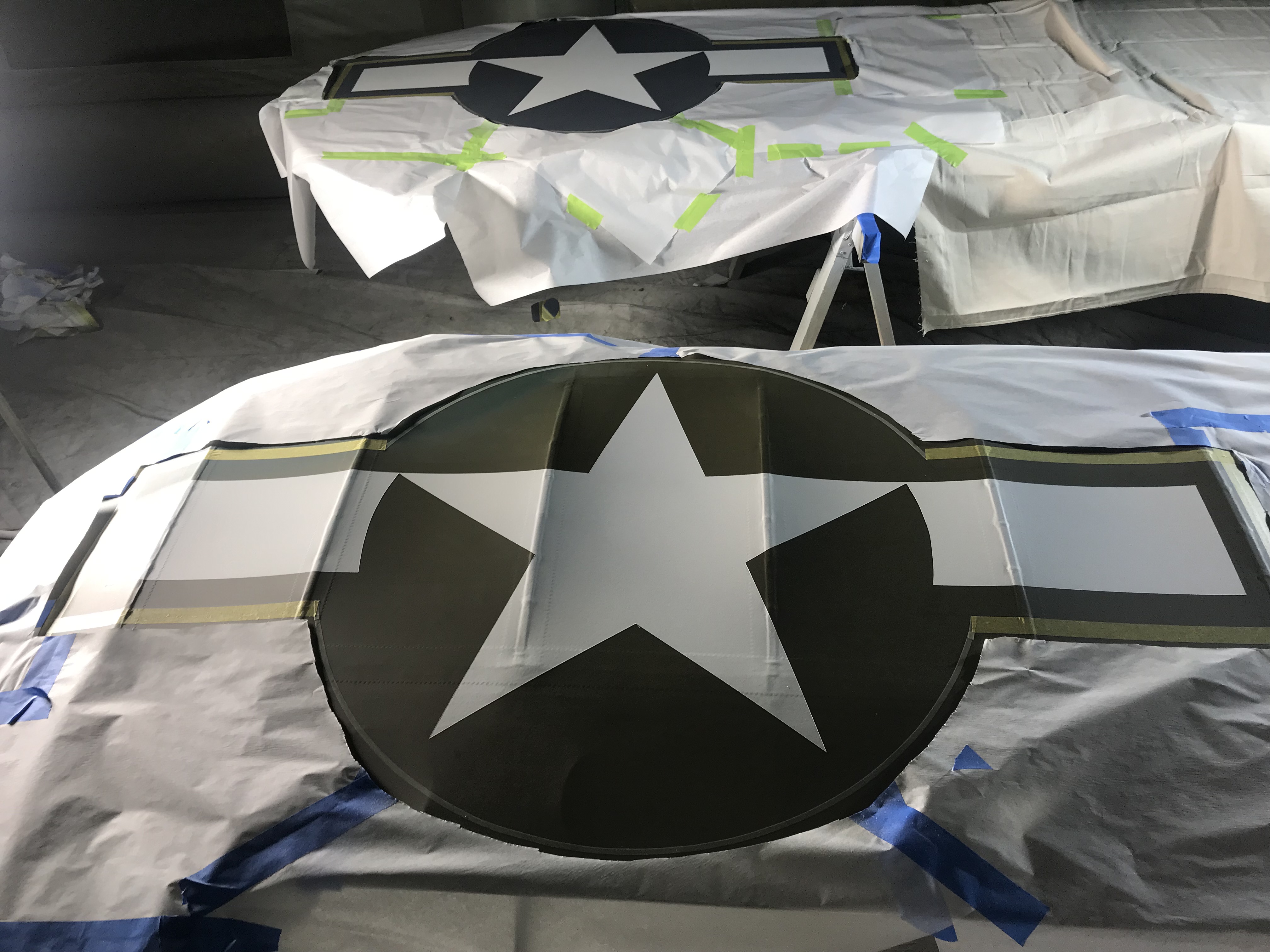

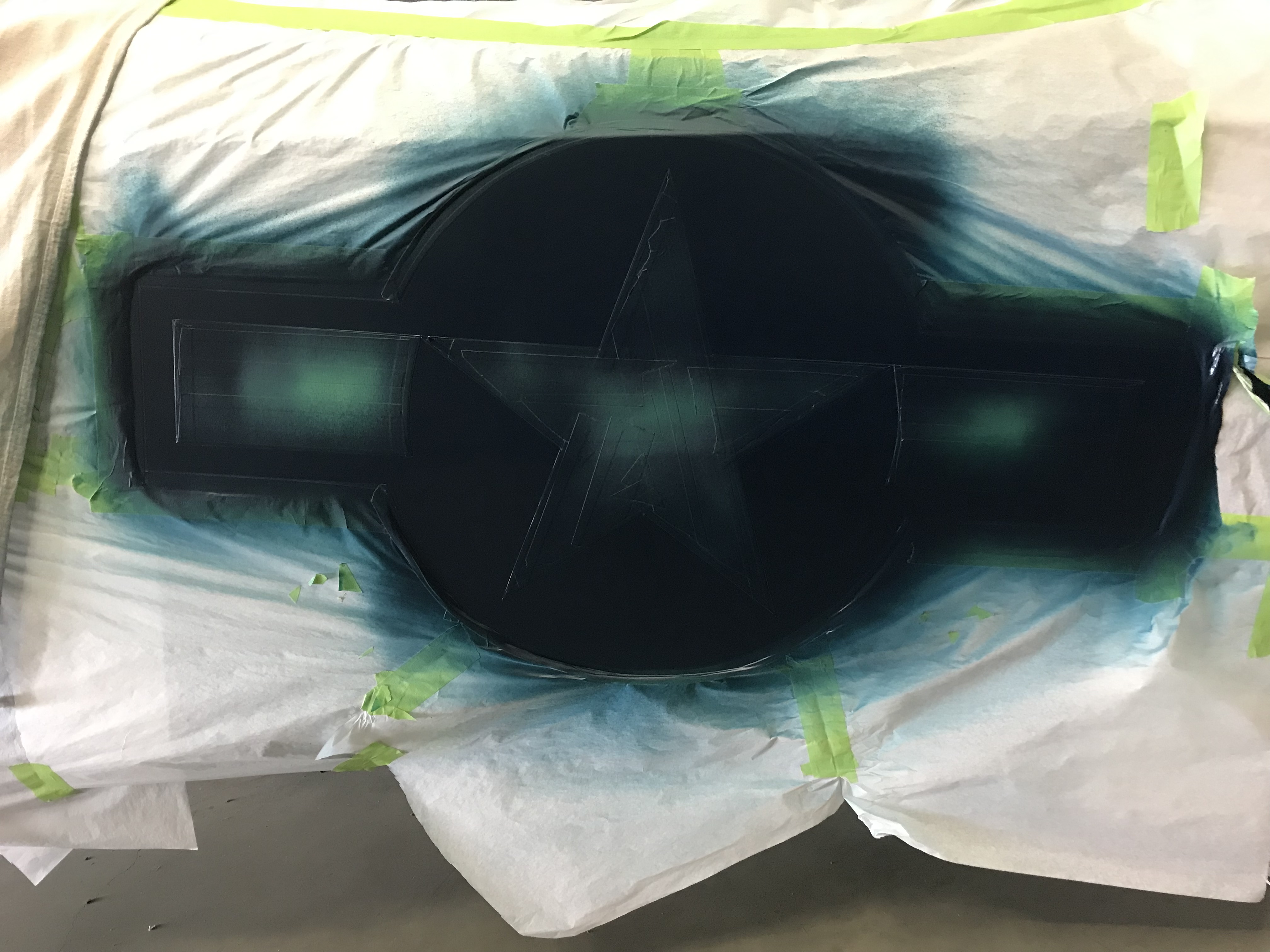

Taped out white areas to now paint blue
Note the two inspection panels that go on the bottom of the aircraft are prepped to get a portion painted blue

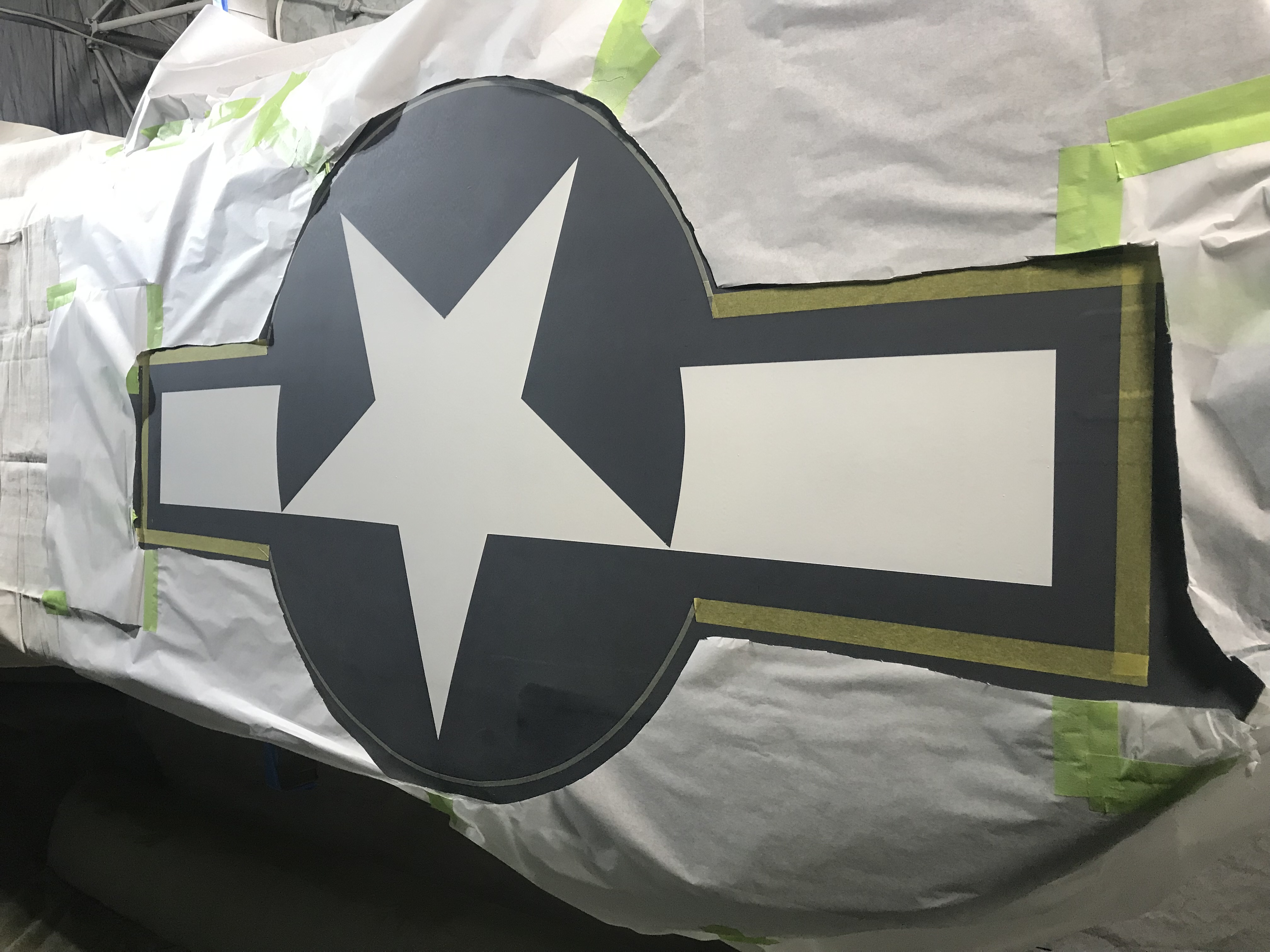

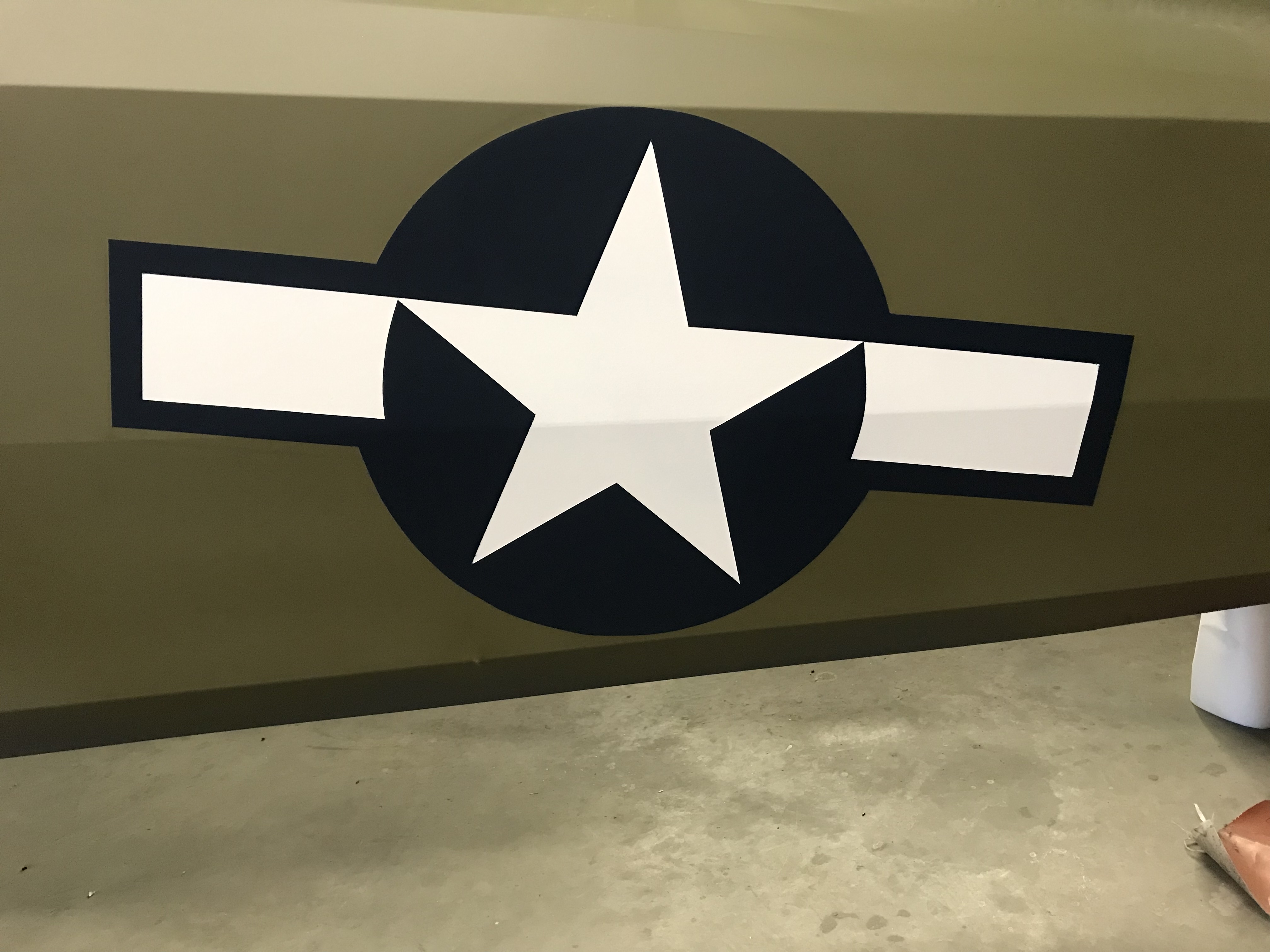

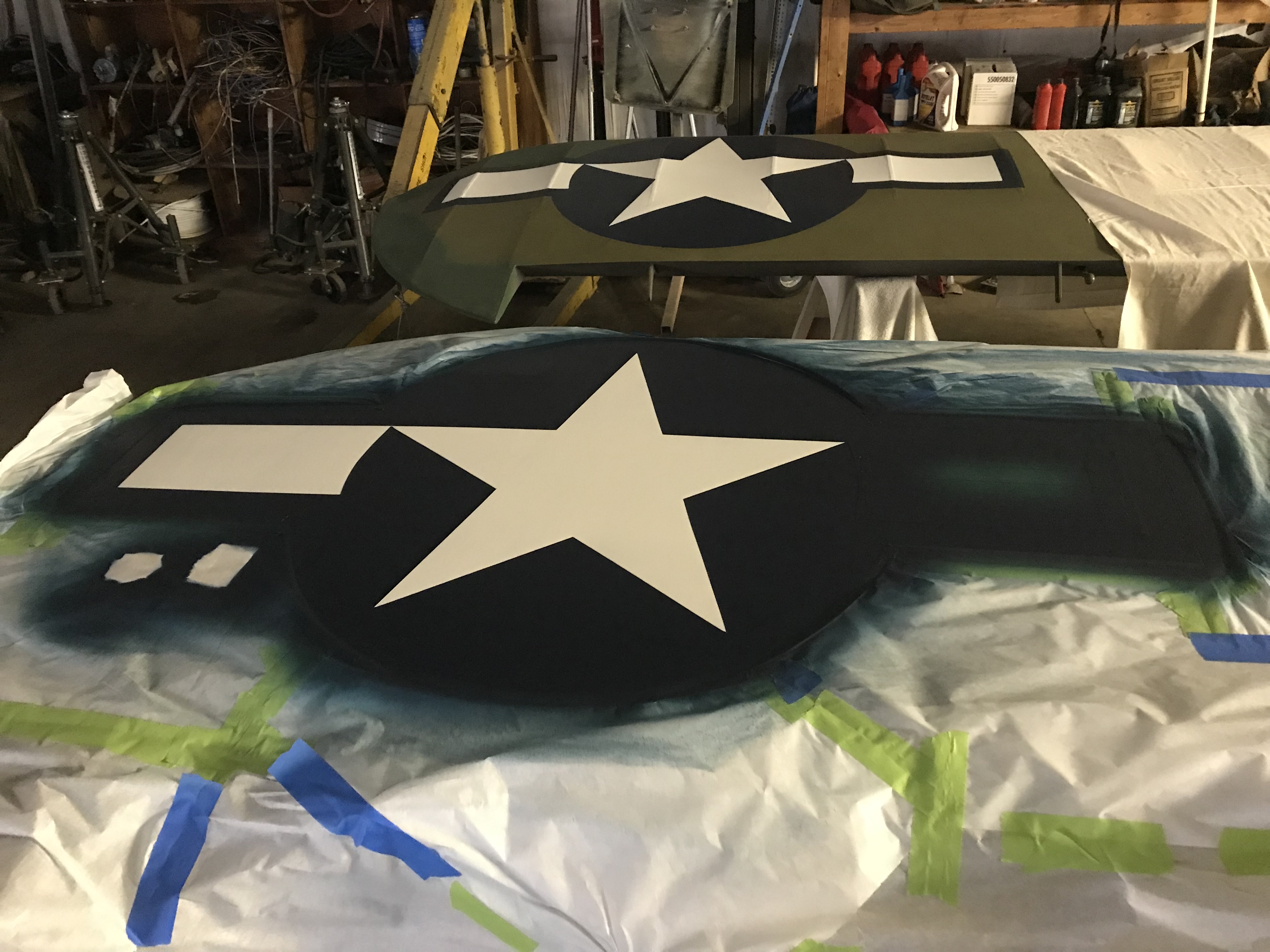

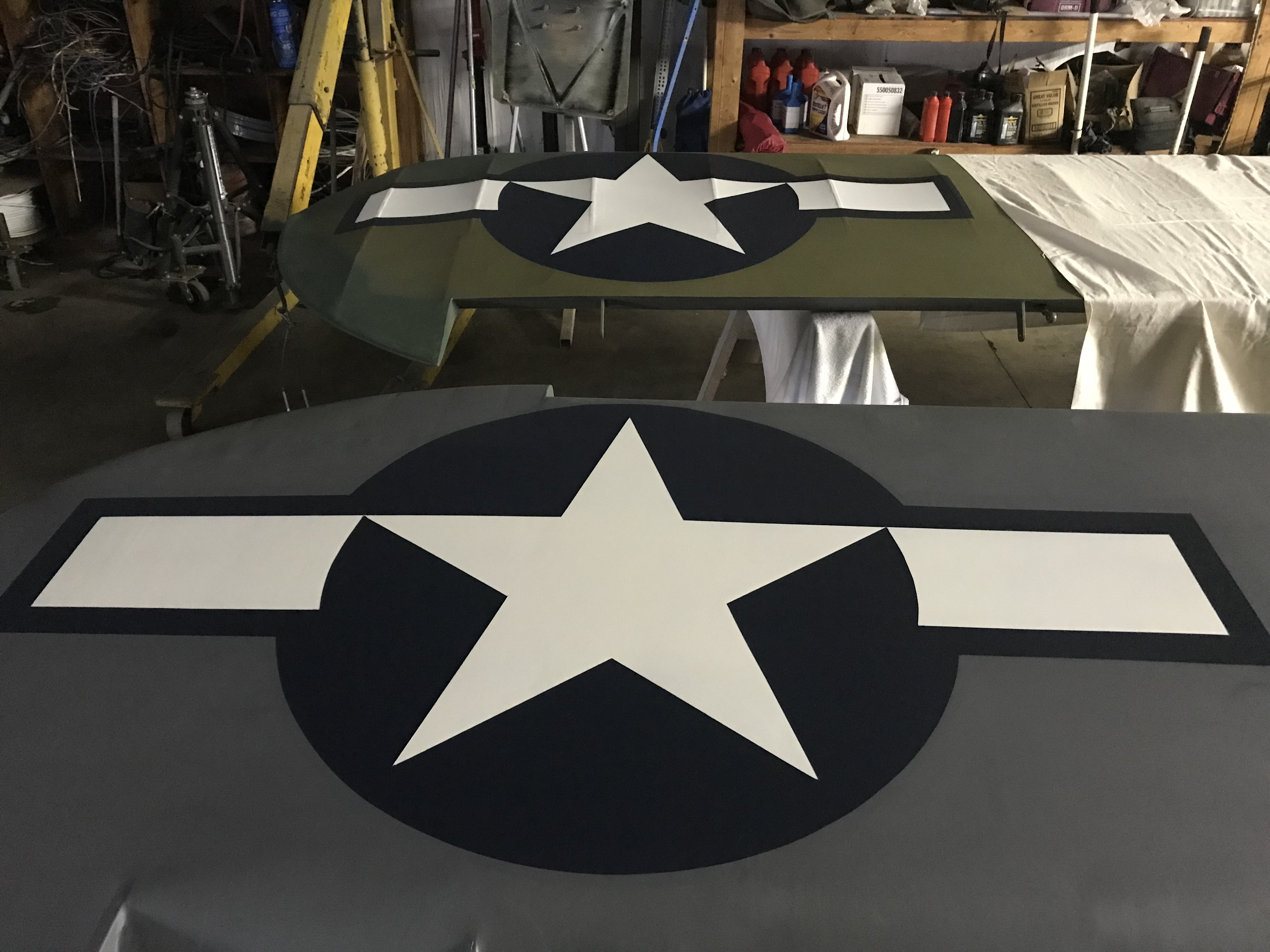

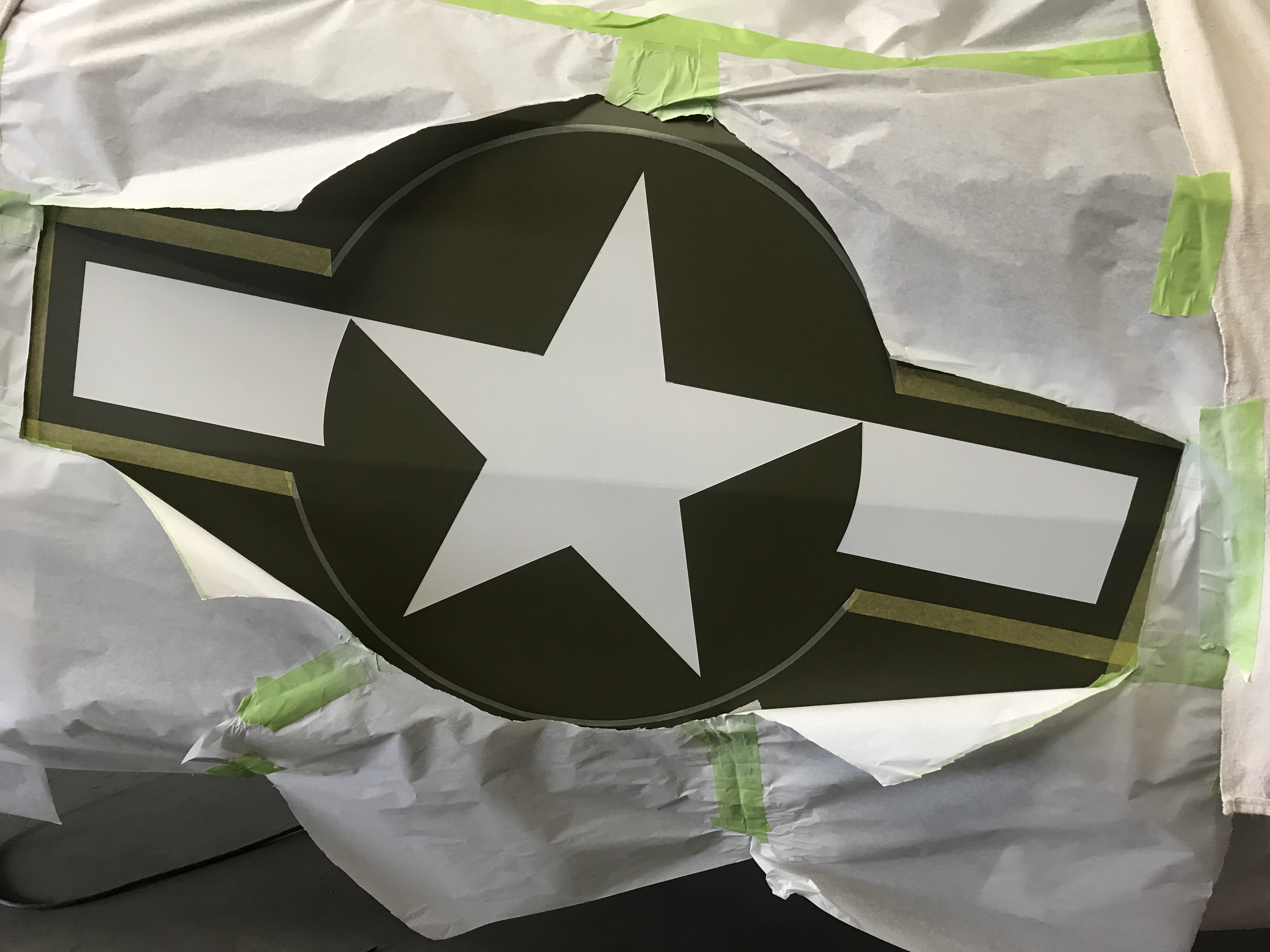

Unmasking the National Insignias is a very special moment
DATE: 23 APR 2022
- (A) Wings – Installed IAW Stinson Factory Drawings 76- Series and T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
Preparing to install the wings

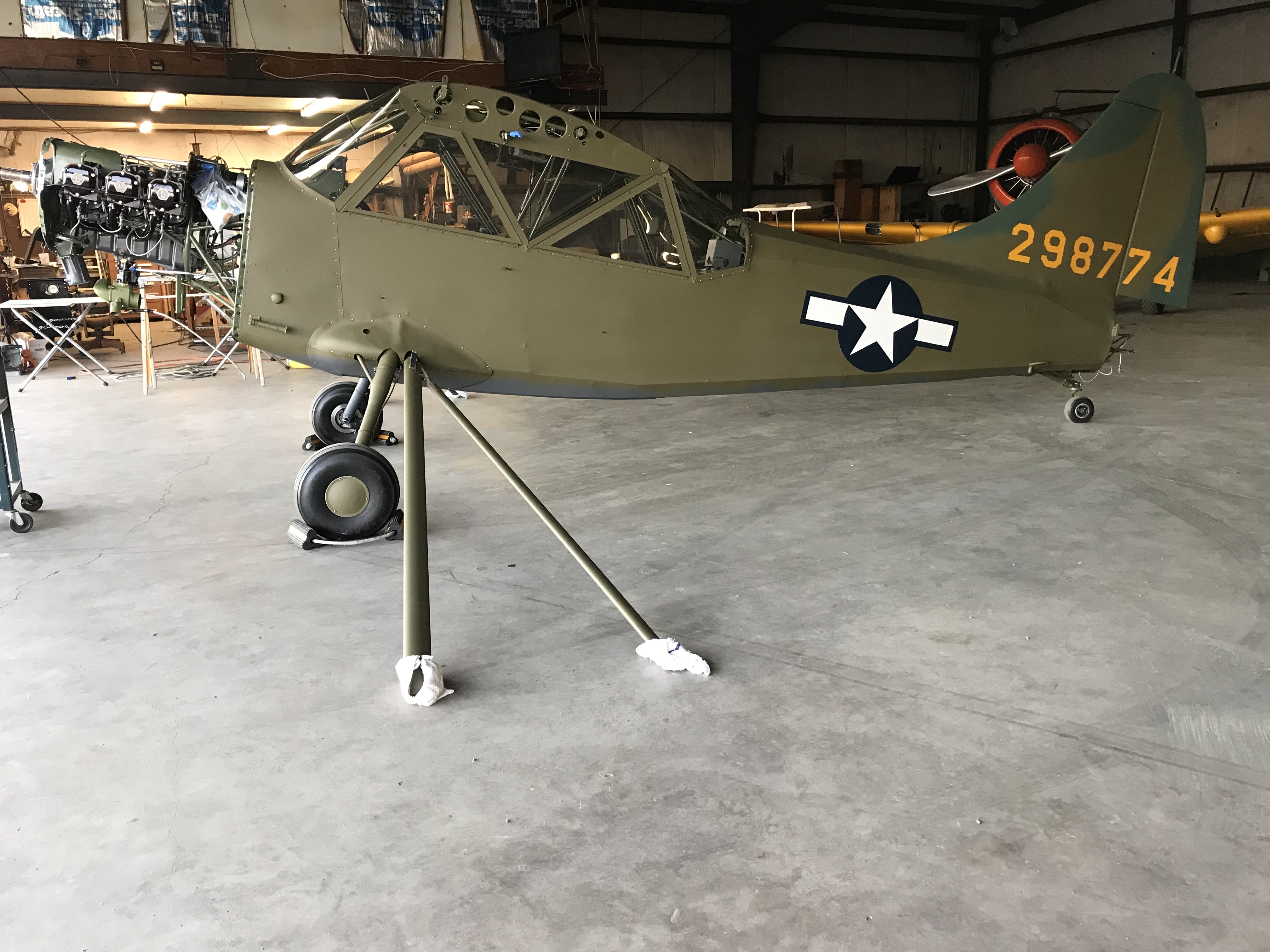

Wing struts in place ready for help friends to arrive

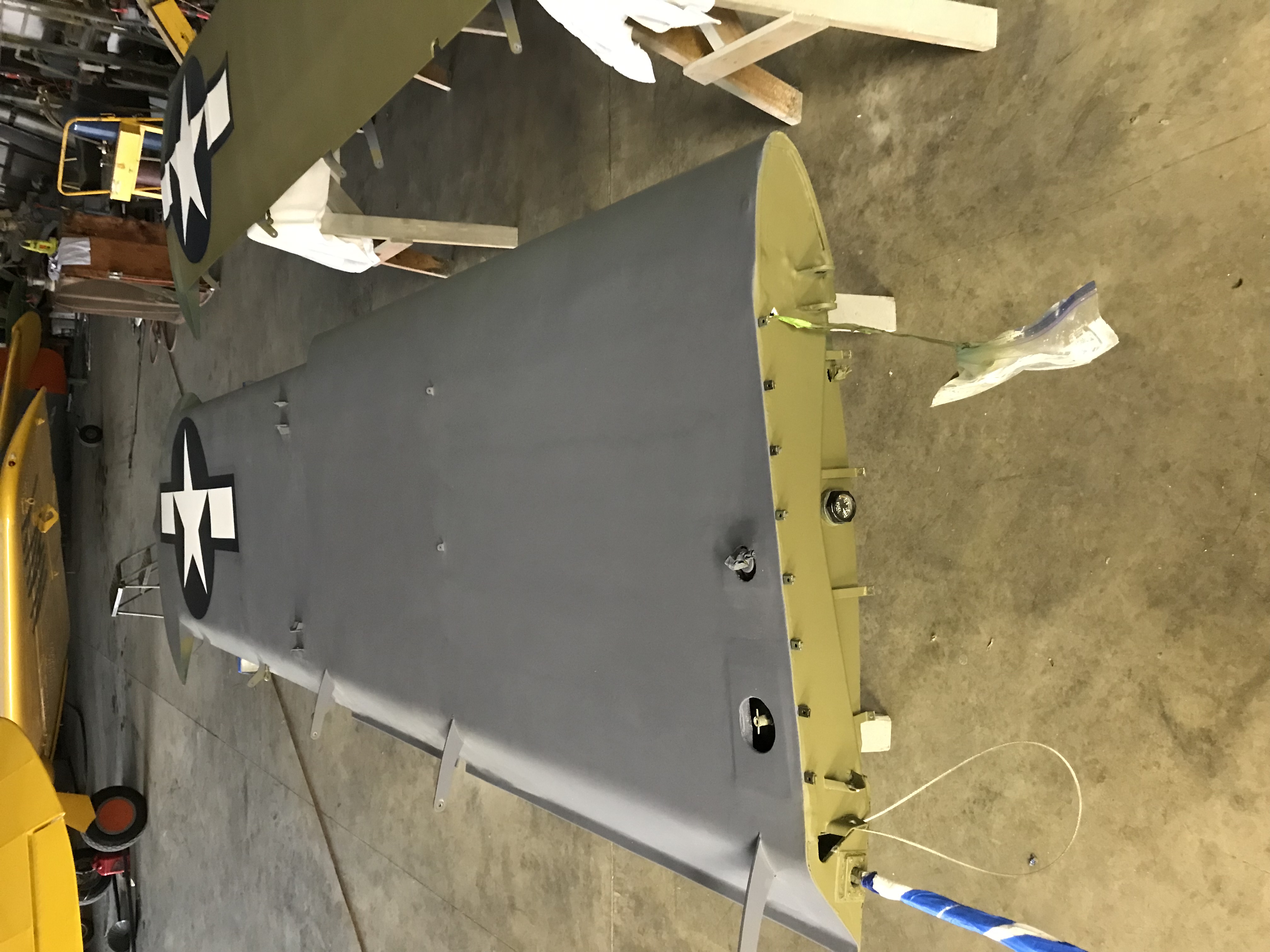

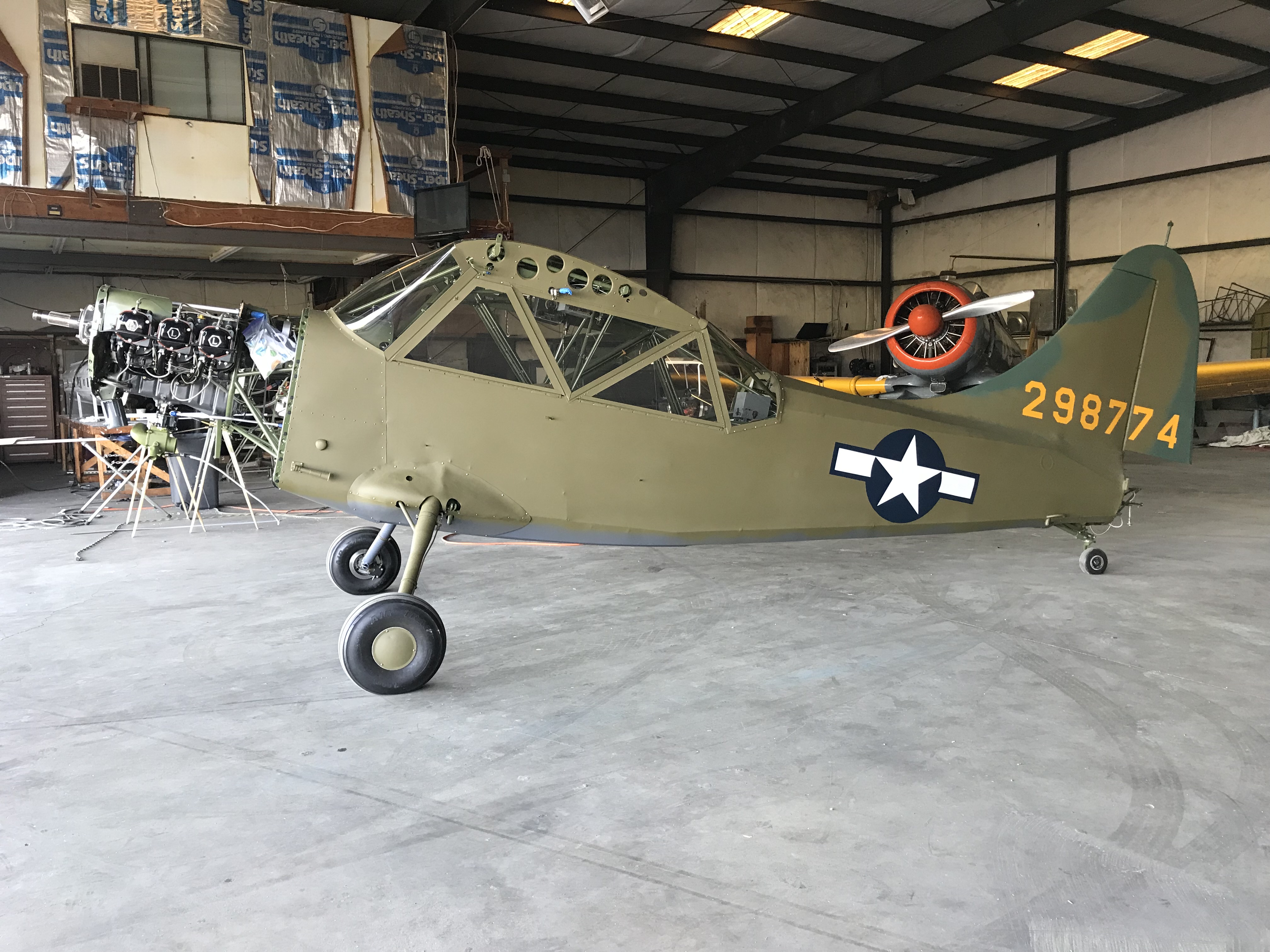

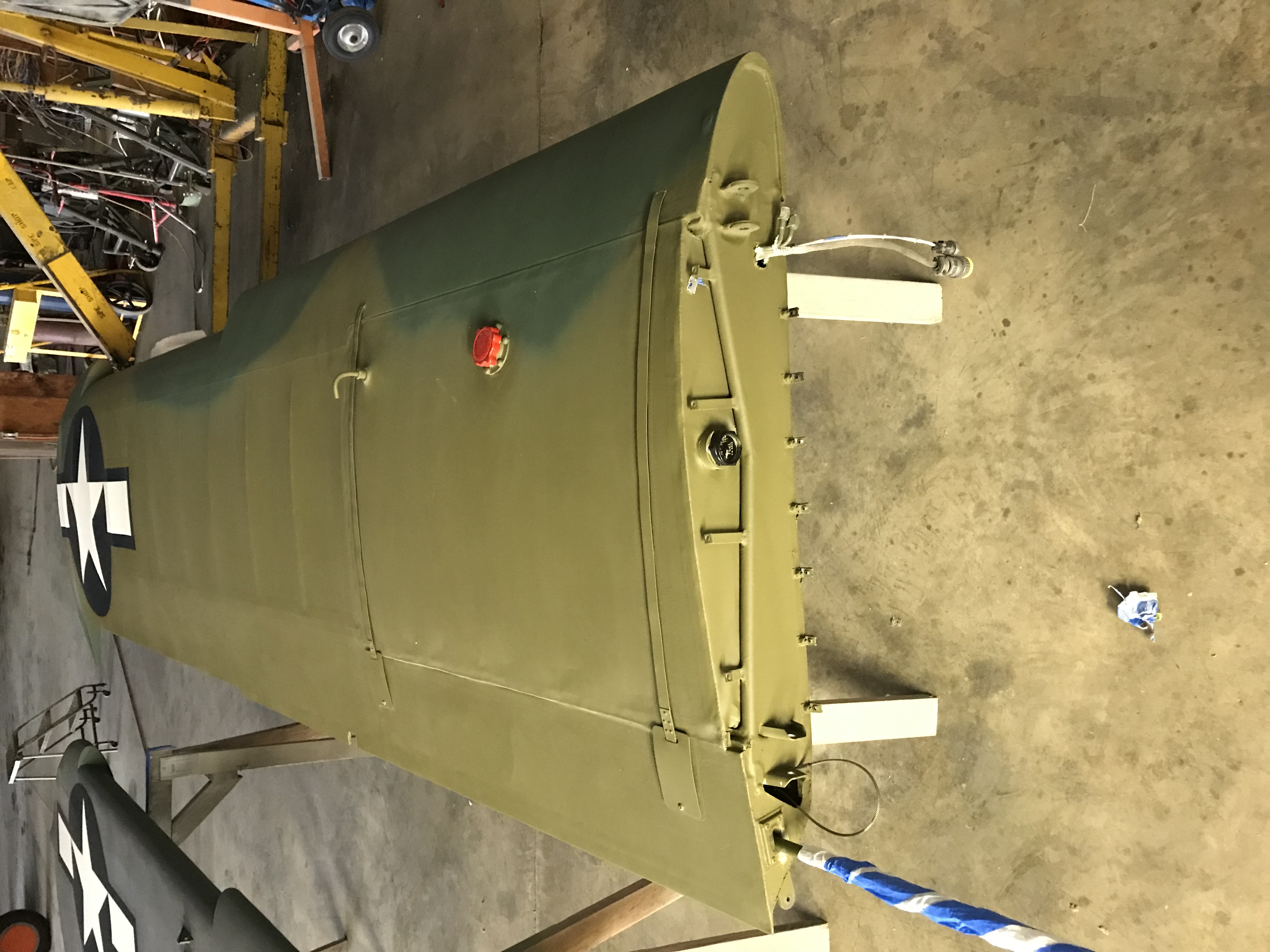

Wings prepped and ready. All holes are checked to ensure bolts will go on with ease
Each wing weighs 82 lbs.

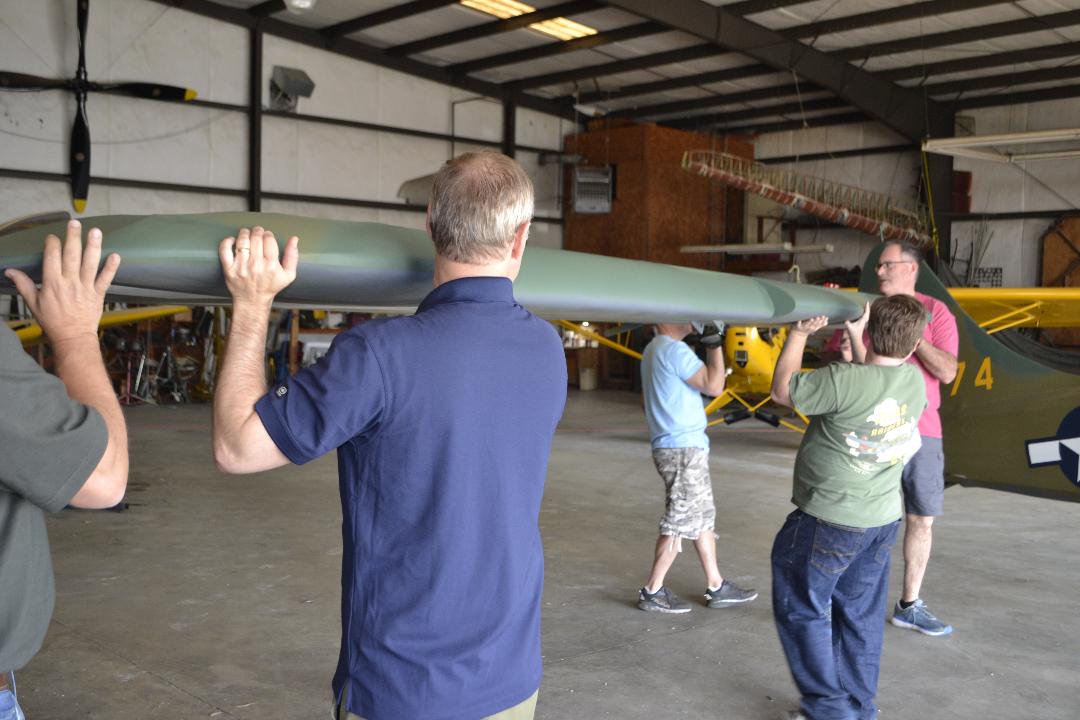

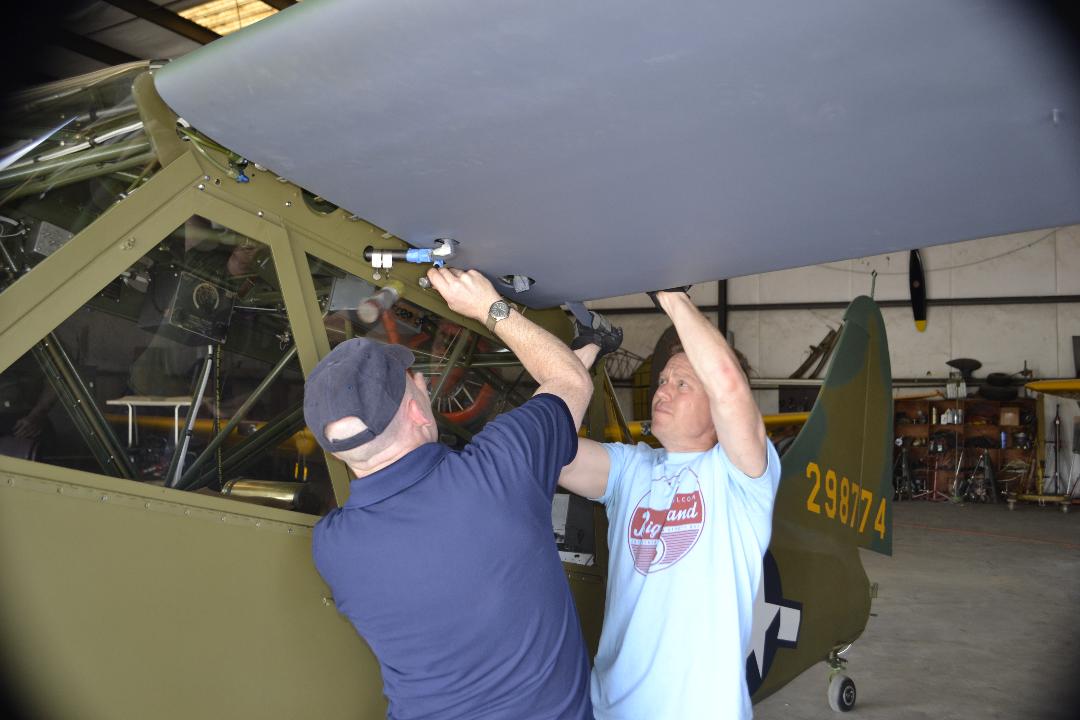

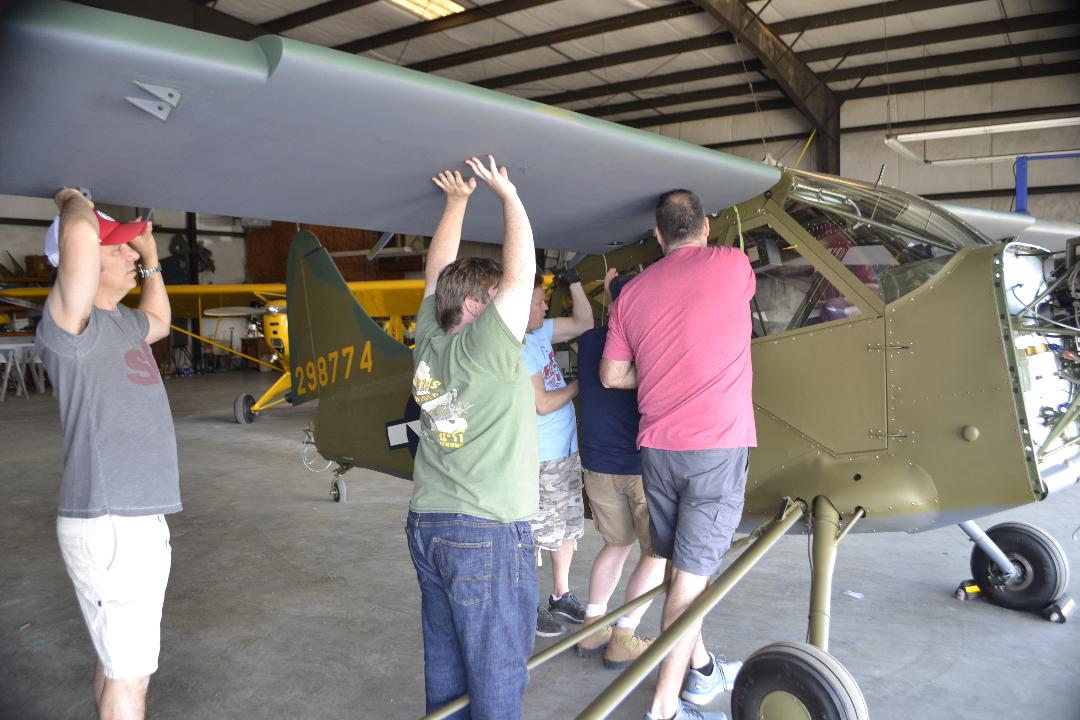

Alot of hands made this go quick and easy
DATE: 24 - 30 APR 2022
- (A) Horizontal Stabilizer, Elevator, Trim Tab – Installed and Rigged IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
- (A) Fuel – Installed fuel lines and selector IAW Stinson Factory Drawings 76- Series, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 and AC 43.13-1B Chapter 8 Section 2
Horizontal stabilizer and elevator installed
DATE: 01 MAY 2022
- (A) Flaps – Installed and Rigged IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
DATE: 05 MAY 2022
- (A) Pitot Static System – Installed IAW Stinson Factory Drawings 76- Series, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 and AC 43.13-1B Chapter 12 Section 4
DATE: 08 MAY 2022
- (A) Tail Cone – Installed IAW Stinson Factory Drawings 76- Series, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
DATE: 21 MAY 2022
- (A) Ailerons – Installed and Rigged IAW Stinson Factory Drawings 76- Series, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
DATE: 29 MAY 2022
- (P) Propeller – Installed Wooden Aircraft Propeller; Model W85RB-57; SN AL8320 IAW Sensenich Instructions Wood Propellers: Installation, Operation and Maintenance; Integral Flange Crankshafts DOC No: WOOD-CF-REV-B.DOC 7-29-15, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956, T.O. 01-50BD-18 – Replacement of Fixed Pitch Wood Propellers for L-5 06 Jan 1945 and AC 43.13-1B Chapter 8 Sections 5 and 6
- (E) Exhaust – Installed IAW Stinson Factory Drawings 76- Series, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 and AC 43.13-1B Chapter 8 Section 3

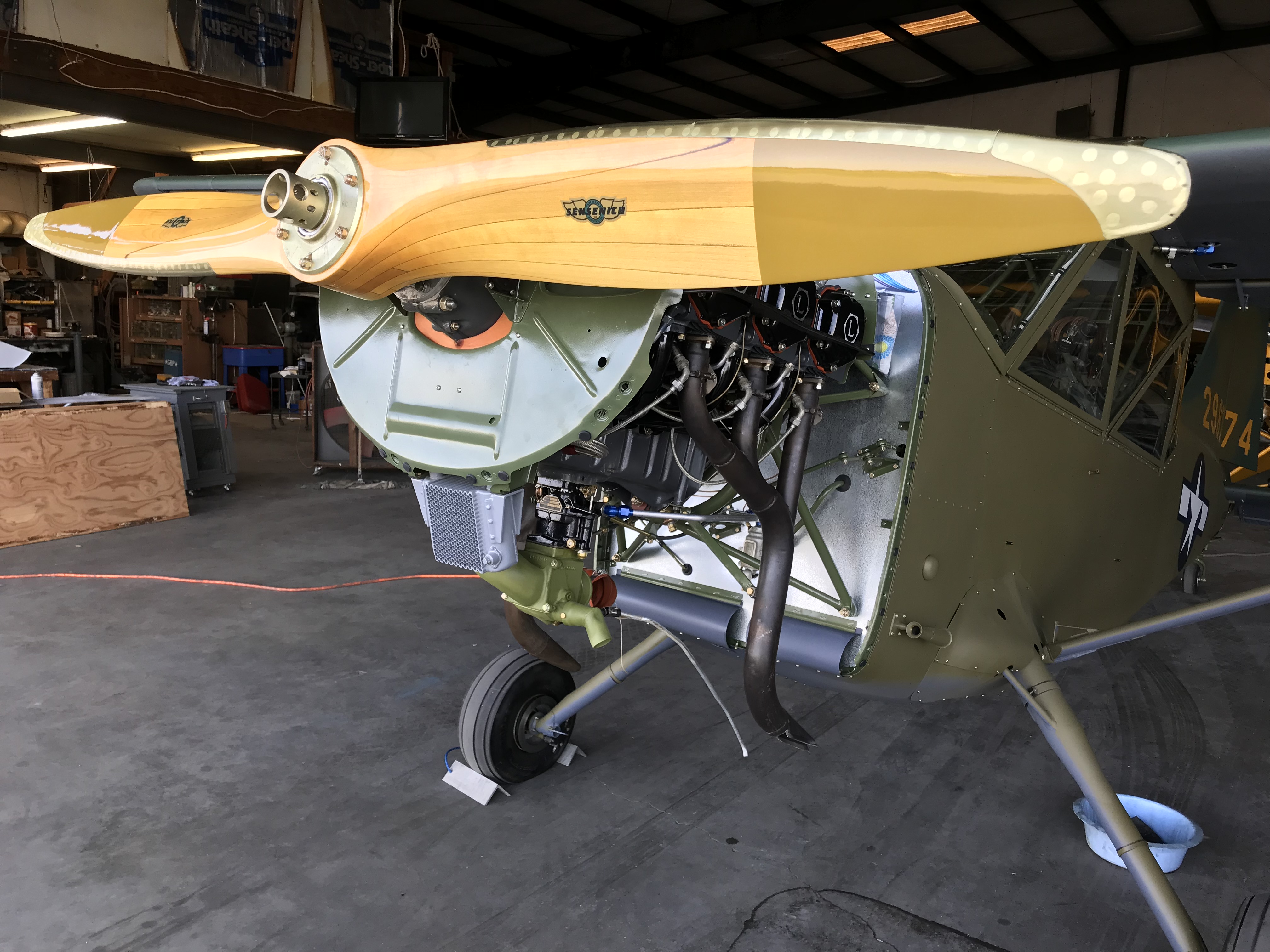

Wooden propeller installed
DATE: 30 MAY 2022
- (E) Engine Test Run – Adjusted Throttle, Mixture Control and Idle IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956

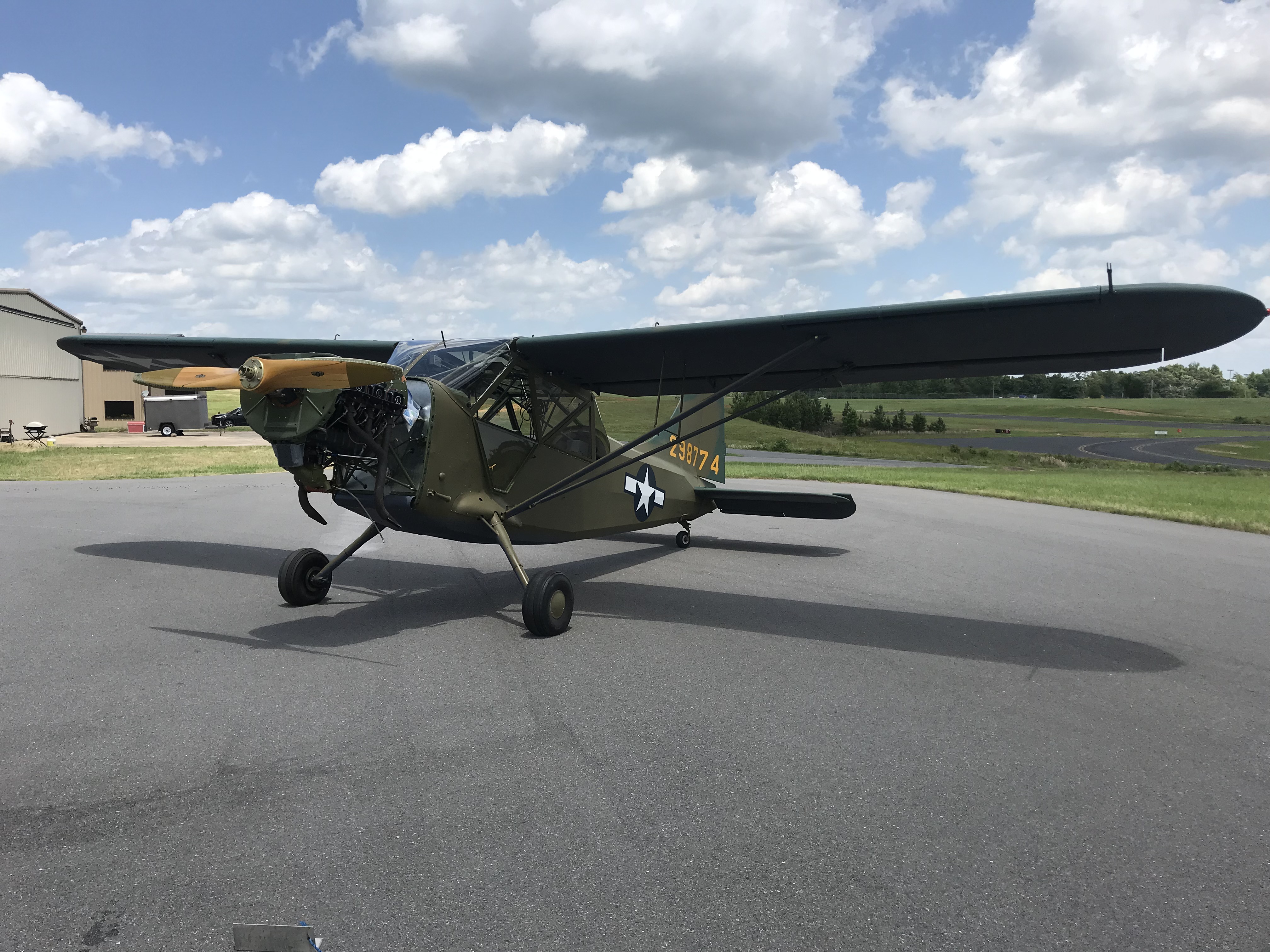

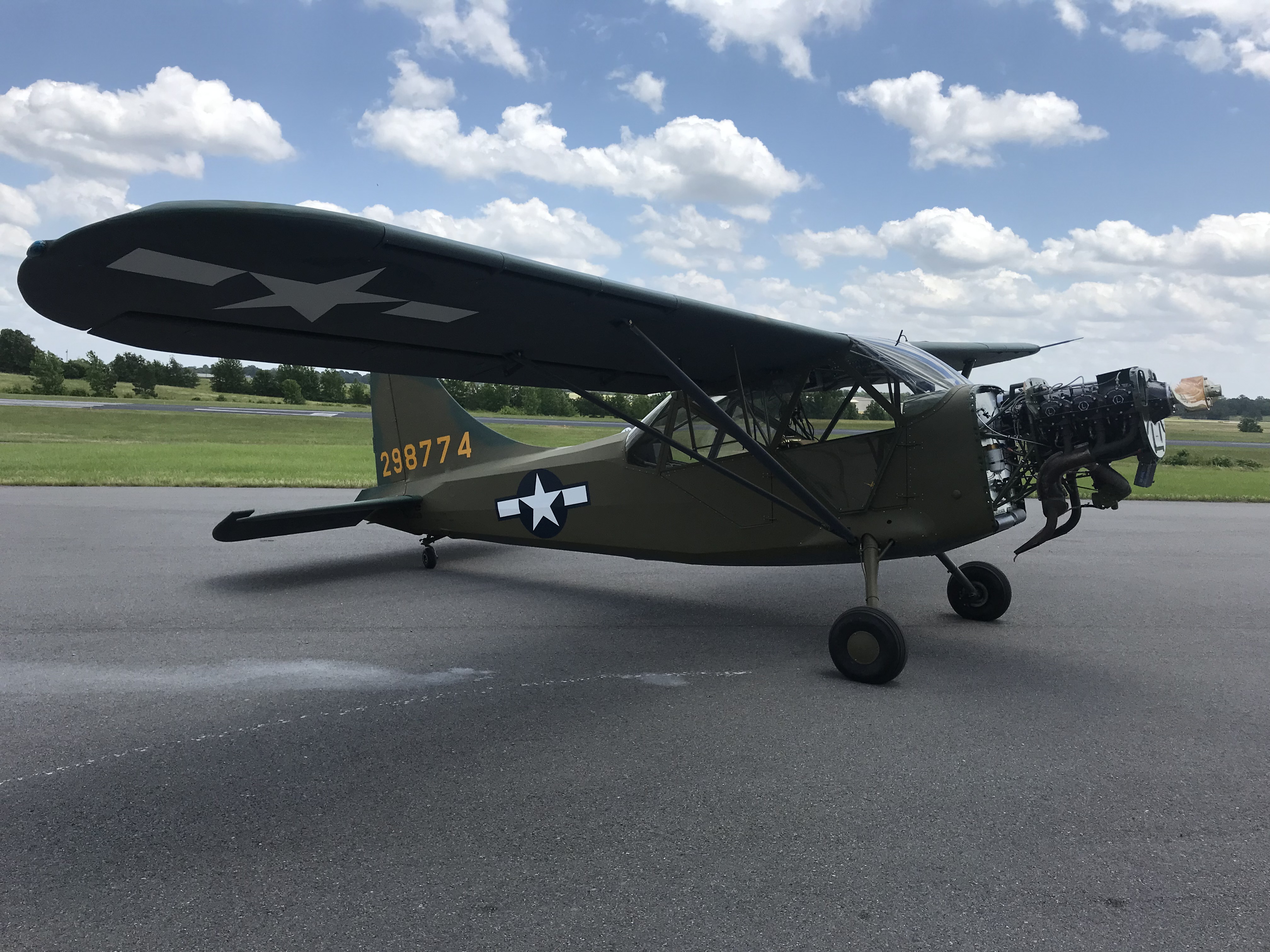

First engine run
DATE: 26 JUN 2022
- (E) Engine Test Run - Adjusted Throttle, Mixture Control and Idle IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
DATE: 03 JUL 2022
- (E) Engine Test Run - Adjusted Throttle, Mixture Control and Idle IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
DATE: 10 OCT 2022
- (A) Wheels and Brakes – Installed field approved Grove wheels 65-1003C TSO and brakes 29-1005A TSO IAW Instructions for Continues Airworthiness For Grove Main Wheel and Brake Assemblies with FAA-TSO Approval Document 13046-11 Rev F Dtd February 8, 2022, T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956 and AC43.13-1B Chapter 9 Section 1 and 2

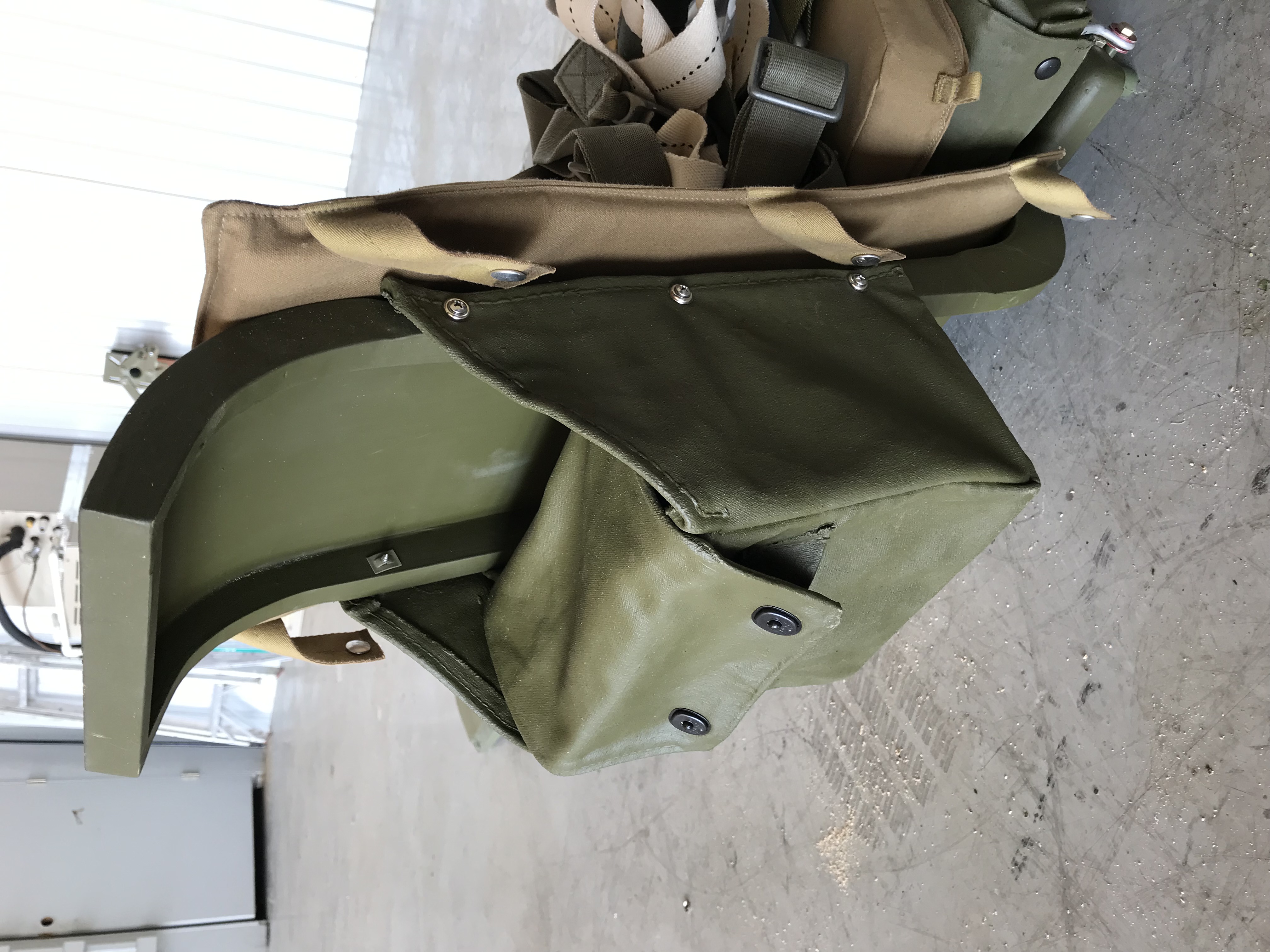

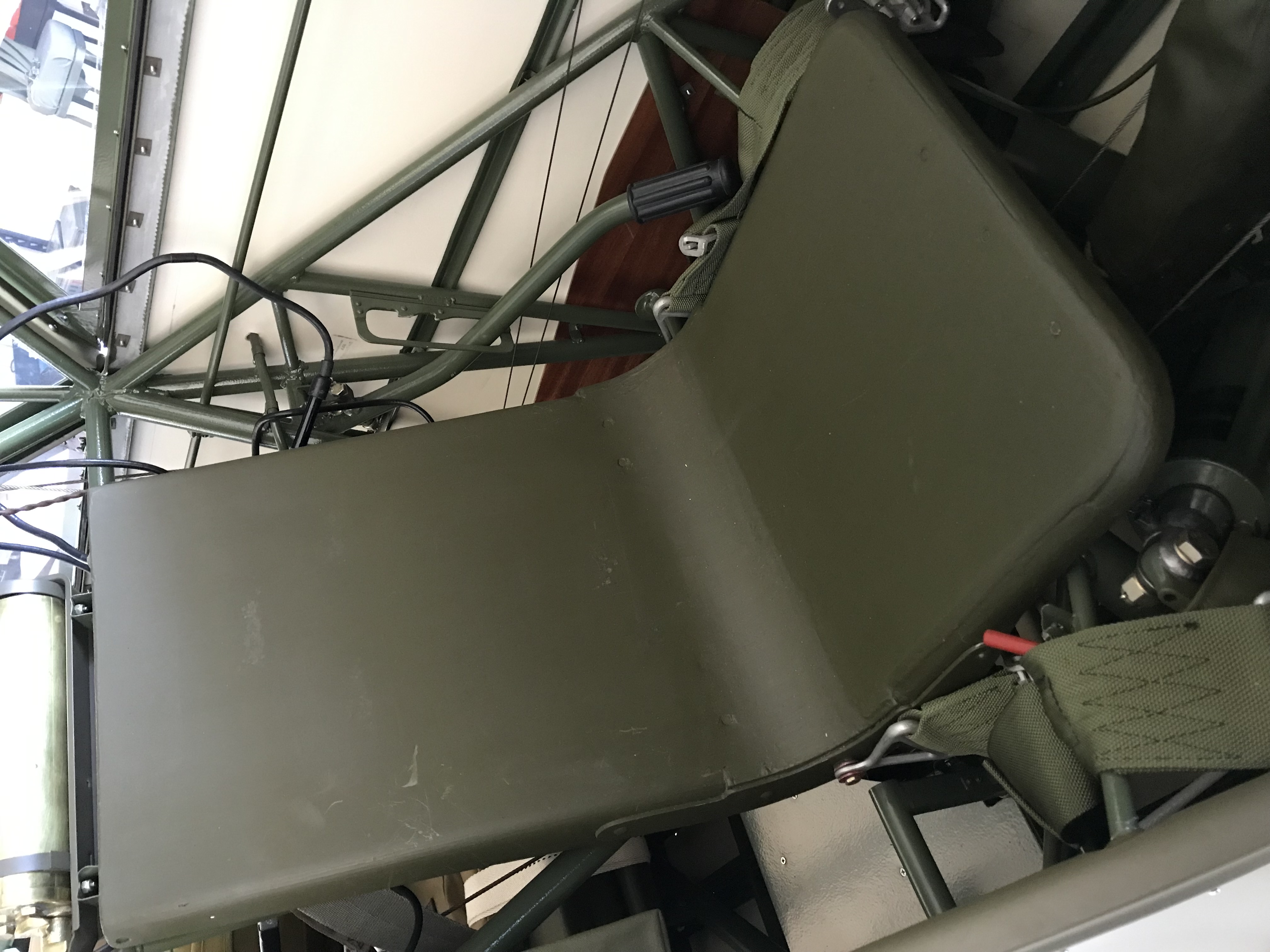

Observer chair and pouch
DATE: 19 -27 NOV 2022
- (A) Cowling – Re-skinned top cowling and constructed IAW Stinson Factory Drawings 76- Series
- (A) Cowling – Sanded, cleaned, prepped and primed with Air Tech Coatings Epoxy Metal Primer IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
- (A) Metal Parts – Sanded, cleaned, prepped and painted IAW T.O. 01-50DB-2 – Maintenance Instructions – L-5, OY-1 15 Apr 1956
- (A) ELT – Installed battery P/N BP-1030 for Pointer 3000 TSO C-91 Replace by DEC 24 IAW AC 43.13-2B Chapter 2
DATE: 10 DEC 2022
- (A) Weight and Balance – IAW T.O. 01-50DB-5 – Basic Weight Check List and Loading Data – L5, OY-1 30 Jun 1950 and AC 43.13-1B Chapter 10

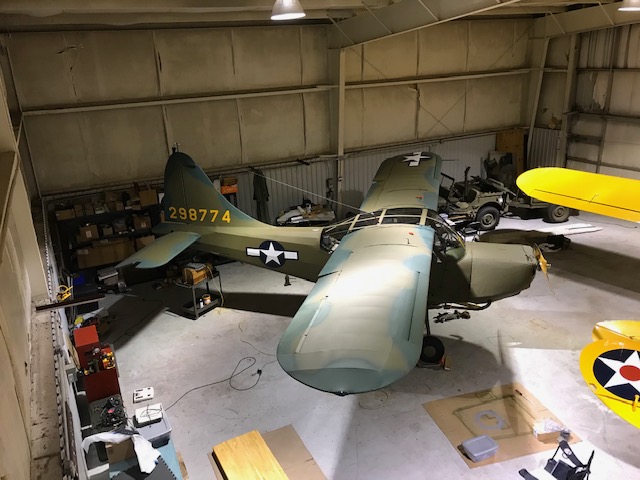

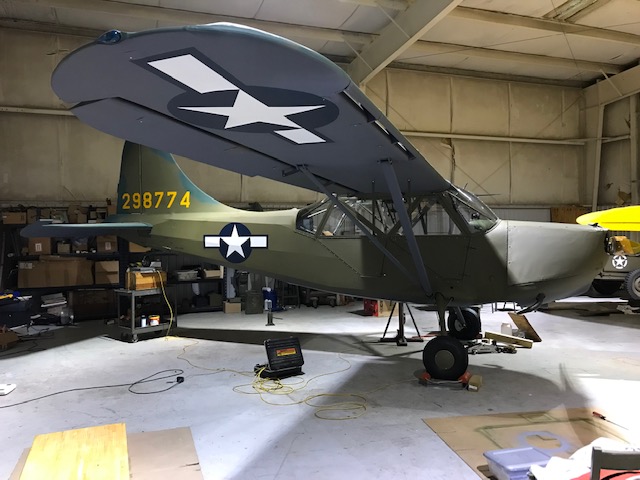

Performing weight and balance calculations
- AC Spec A-764 Complied with Install nameplate, if none installed containing the model designation, serial number, and date of manufacture
- AC Spec A-764 Complied with Placard rear seat, “SOLO FLYING FROM FRONT SEAT ONLY”
- AC Spec A-764 Complied with For day operation, all fuses or circuit breakers to electric equipment used during such operation must be accessible to pilot in flight
- AC Spec A-764 Complied with Battery switch control circuits shall be removed from the ignition switch
- AC Spec A-764 Complied with Mark instruments for approved operating limits
- (A) 47-50-04 STINSON: Applies to L-5 Series Aircraft.
Compliance required as soon as possible but not later than March 1, 1948.
To prevent loss of elevator control, the elevator push-pull tube assemblies, P/N 76-62204, should be inspected for security and proper staking of nut which secures rod end and D-4 bearing in housing P/N 76-62206. If there is no cotter pin securing this nut, it should be staked to the rod in at least three places. AD 47-50-04 01 Mar 1948 One Time - Complied with by installing cotter pin securing nut which secures rod end P/N 76-62204 and D-4 bearing in housing P/N 76-62206
- (A) 46-31-02 STINSON: (Was Service Note 1 of AD-764-1.) Applies to All L-5 Series Aircraft.
After each 25 hours of operation make a visual inspection of the torque tube on welded bellcrank assemblies located in the fuselage immediately aft of the rear seat for cracks in the bellcrank around the torque tube. If any cracks are found, replace or reinforce part before further operation of the aircraft. Bellcranks manufactured from a casting and installed on L-5 airplanes, Serial Number 42-98885 and subsequent, are considered satisfactory. If inspection indicates that this more satisfactory part is installed, the 25-hour inspections may be discontinued. AD 46-31-02 Recurring every 25 hours of operation – Complied with by visual inspection of torque tube on welded bellcrank for cracks.
- 72-06-05 R2 MARVEL SCHEBLER (Facet Aerospace Products Company): Amendment 39-1411 as amended by Amendment 39-1685 is further amended by Amendment 39-5338.
Applies to Models MA-3, MA-3A, MA3-PA, MA-3SPA, MA4-SPA, MA4-5, MA4-5AA, MA-5, MA-5AA, MA-6AA and HA-6 carburetors used on various Franklin (Aircooled), Continental, Lycoming and Ranger engines, having one of Illustrations A, B, C, or D. Compliance is required within 30 days after the effective date of the AD, unless already accomplished. To present looseness or separation of the throttle arm, accomplish the following or any equivalent procedure approved by the Manager, New York Aircraft Certification Office, FAA, New England Region.
DATE: 01 JAN 2023
- Performed first flight

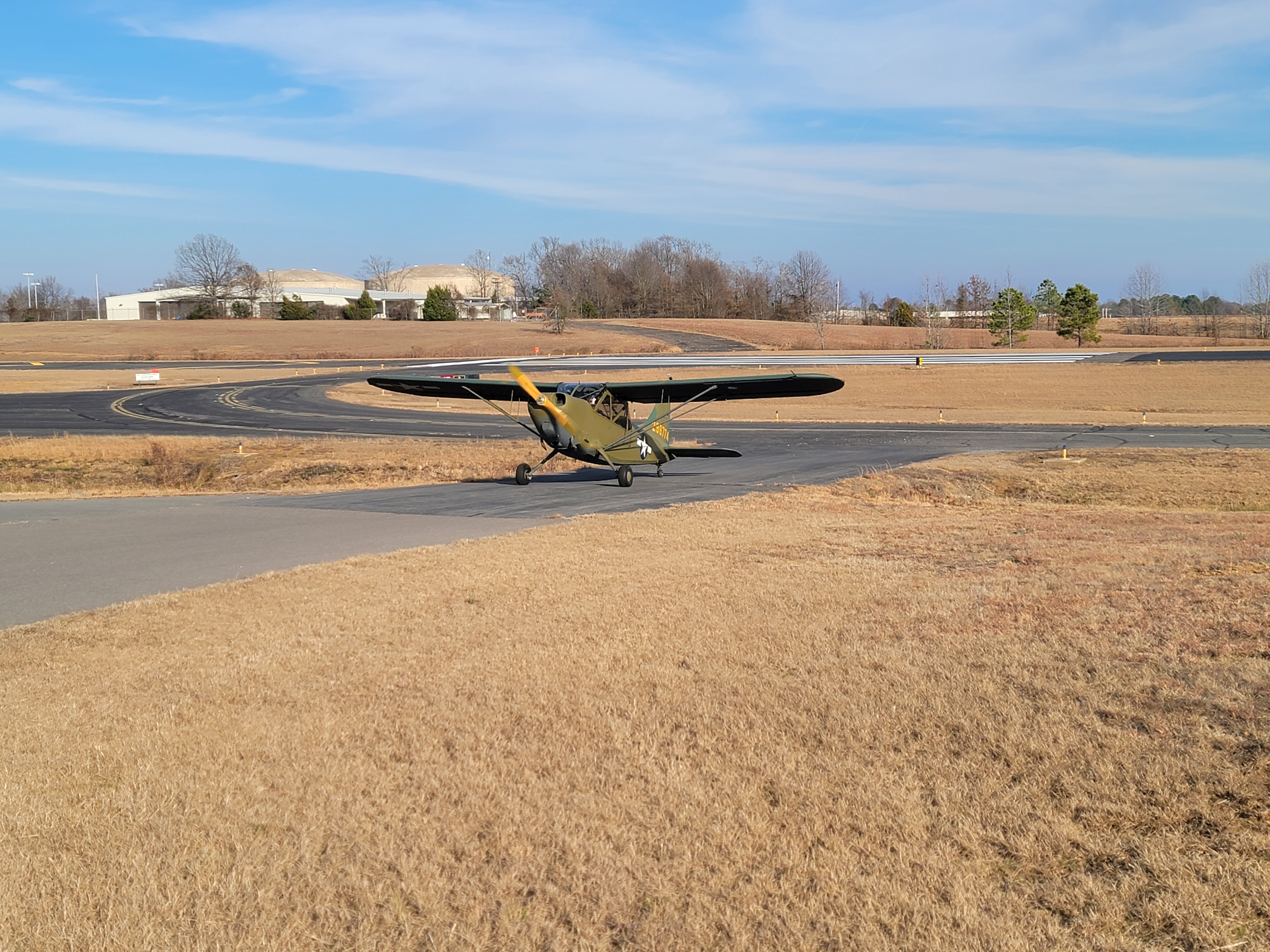

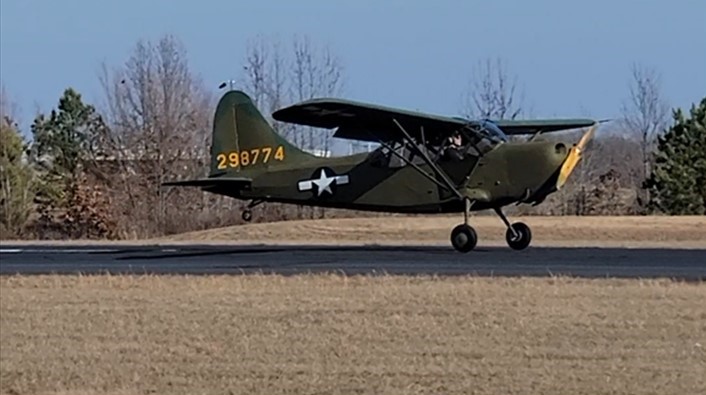

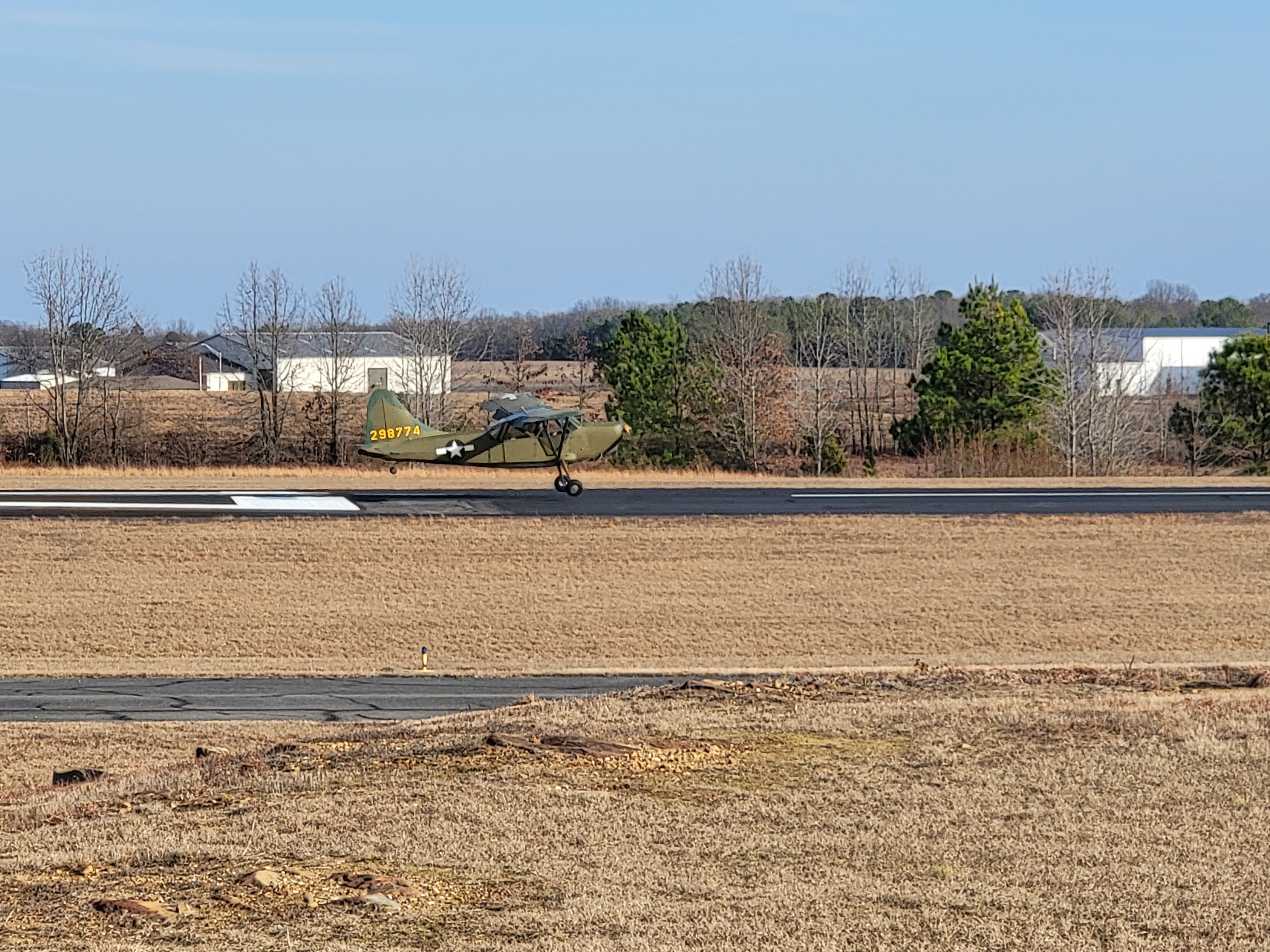

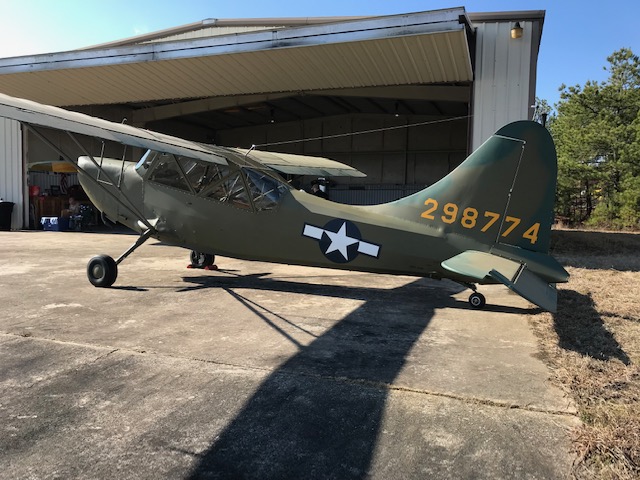

First flight
First Landing

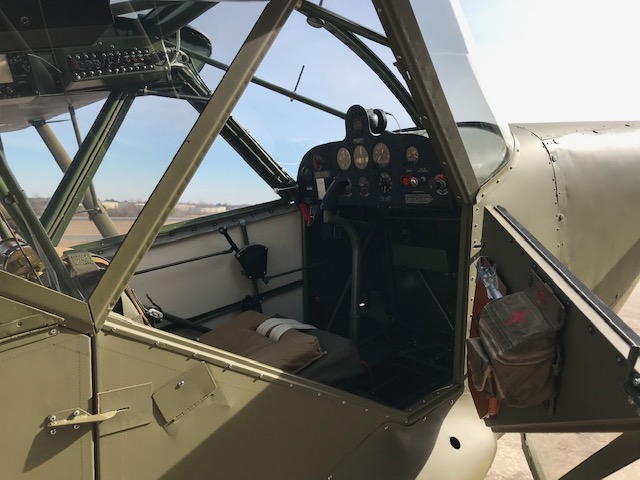

Seat is designed for a seat type parachute. Types available for use were S-1 or AN6510 with a 24 foot canopy, S-2 or AN6511 with 28 foot canopy
Custom made by The Rigger Depot - S-2 Seat Type Parachute made utilizing original webbing, hardware and canopy. Note early bayonet type connections and early back seat pad.

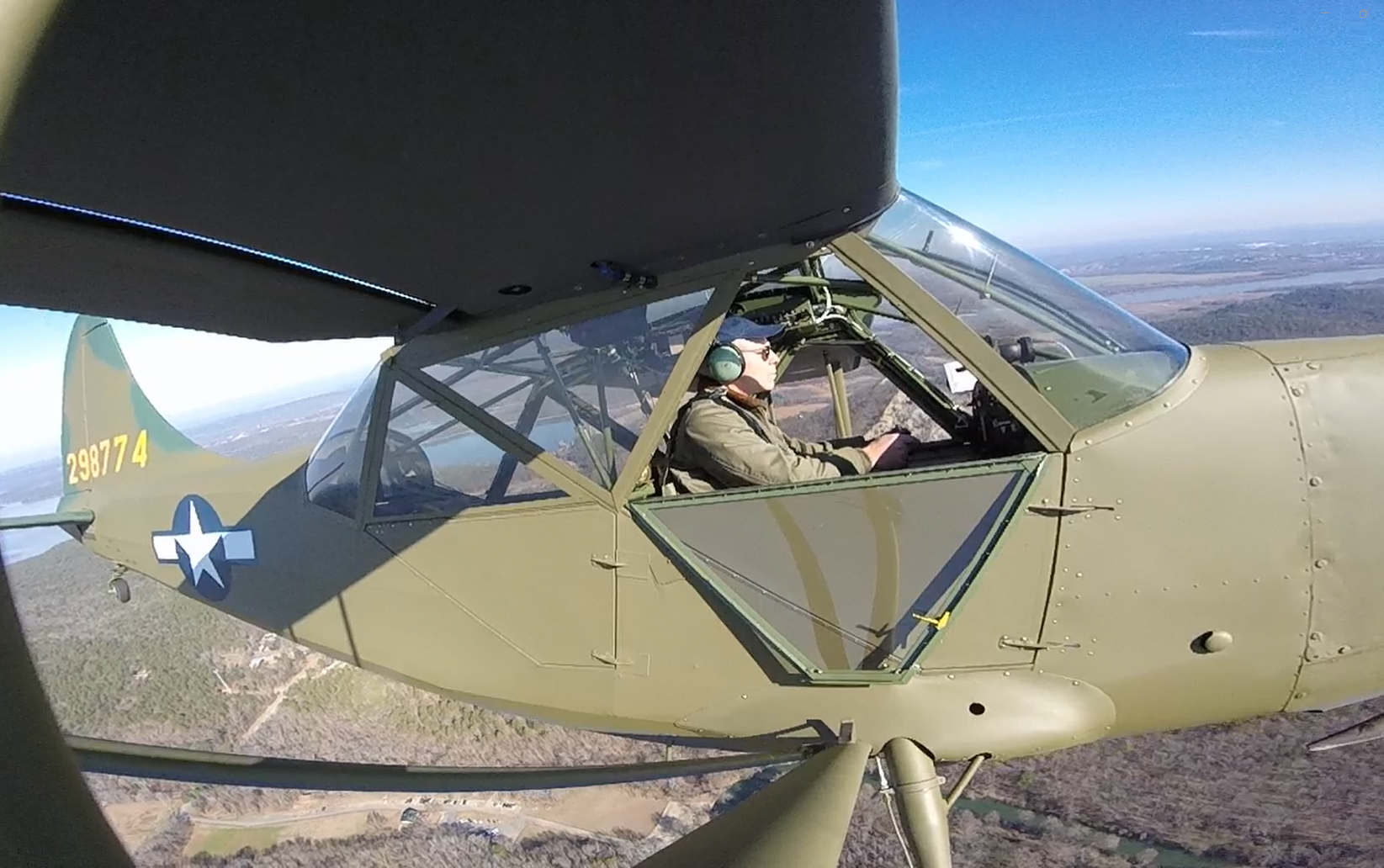

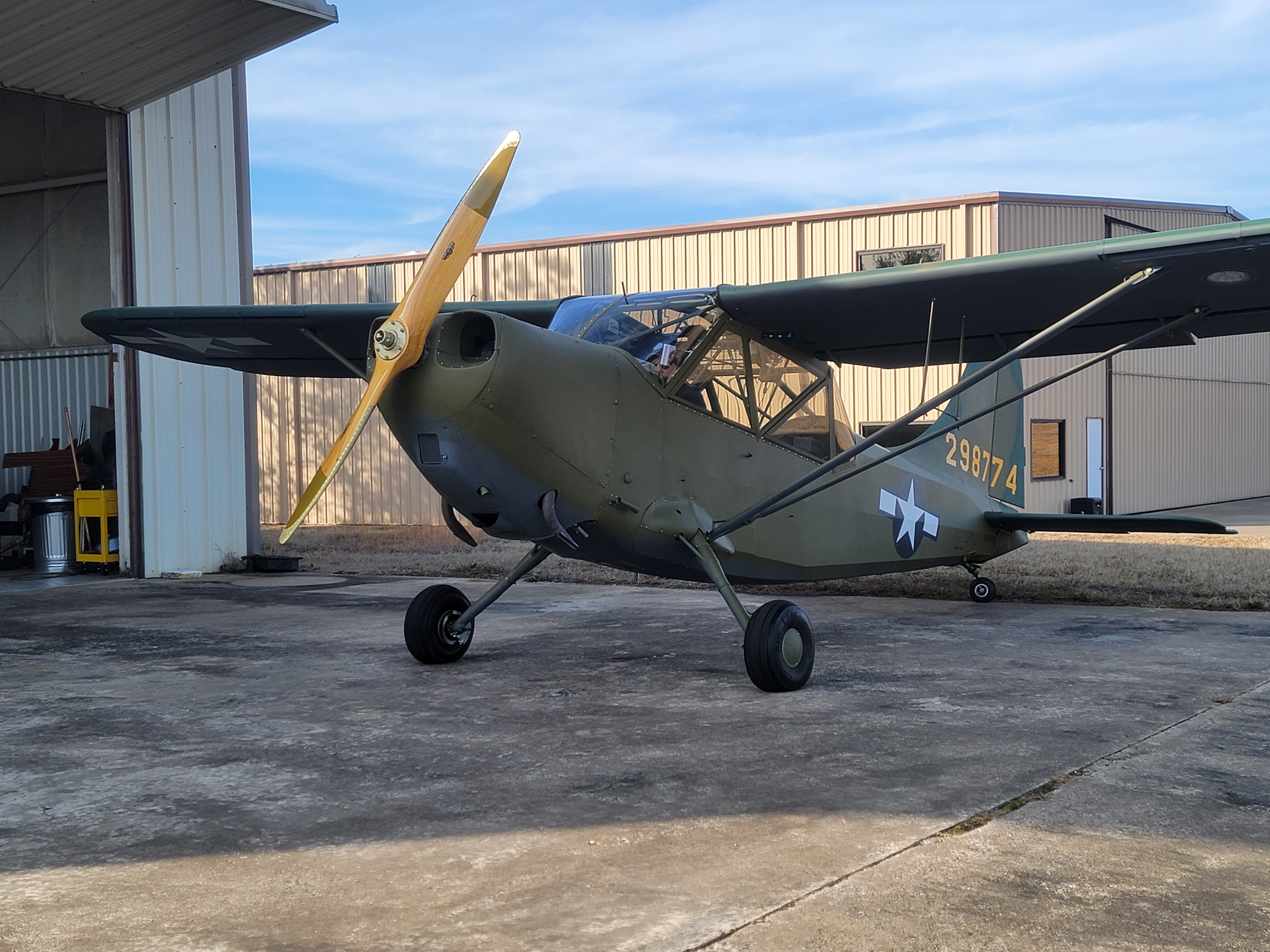

Morning flight

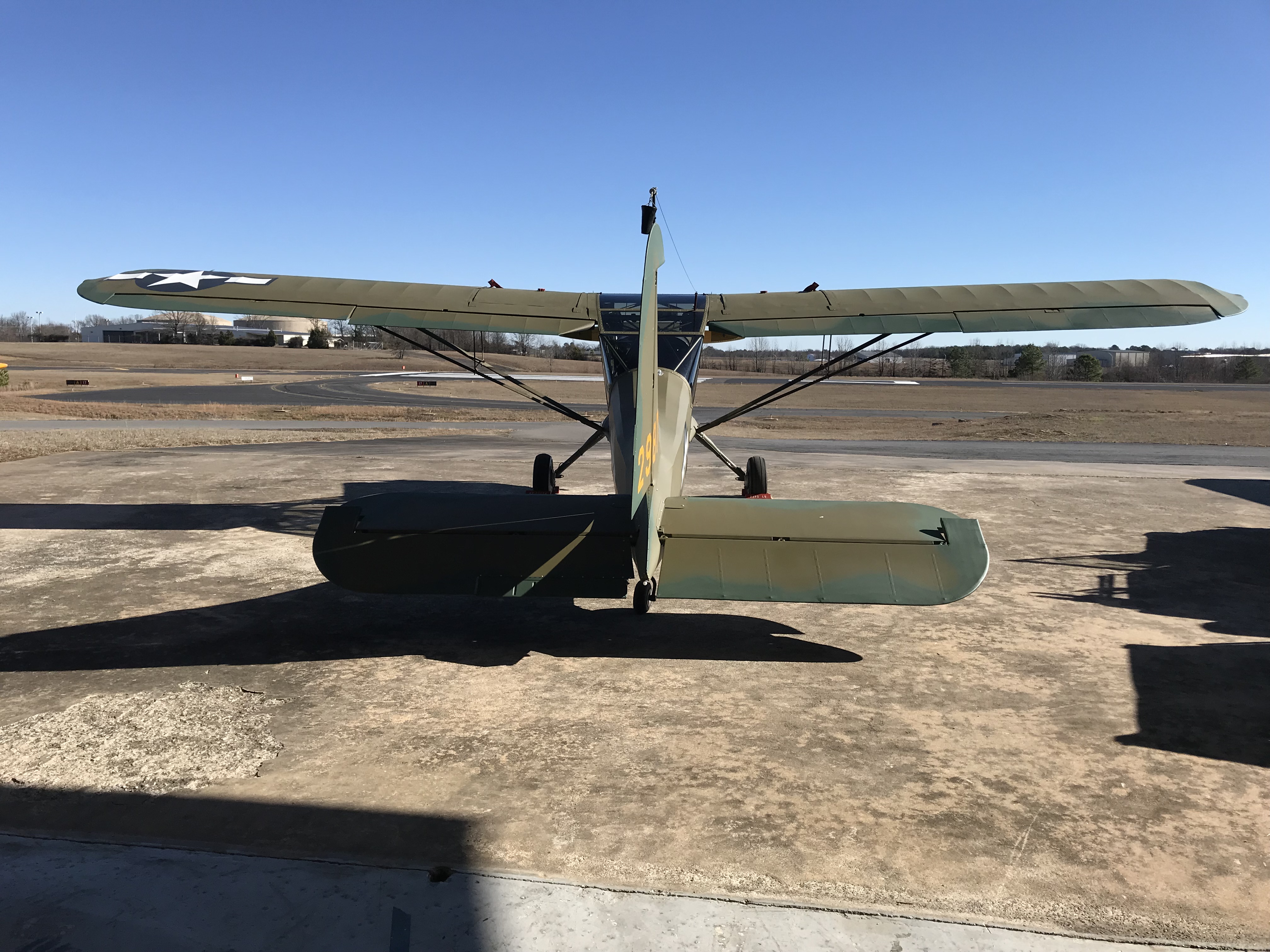

Rear view shows the Medium Green scallop camouflage applied to wings and tail surfaces per Stinson factory drawings
Engine Break In flights
